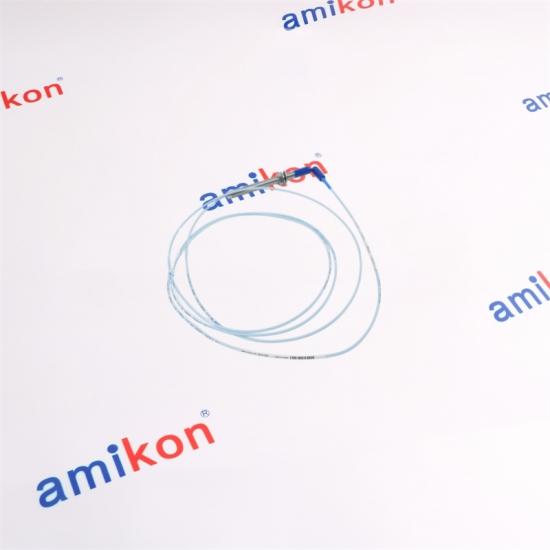

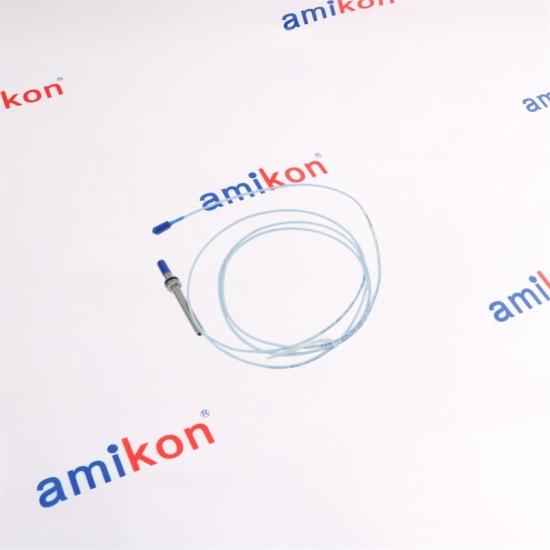

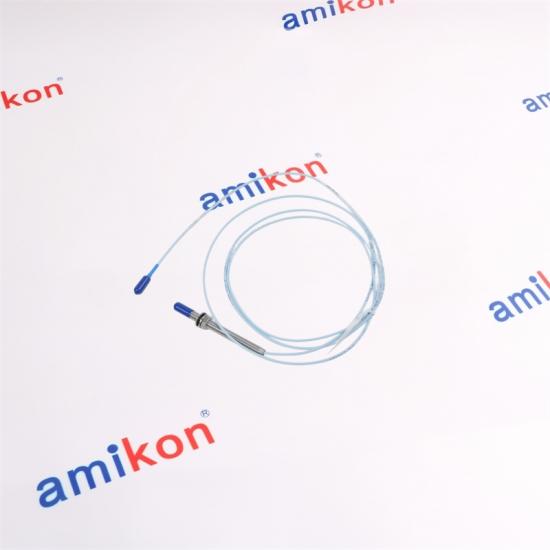

3300 CERAMIC CAPPED PROBE
146054-011-20-02-05
A ceramic-capped proximity probe designed for machinery monitoring applications where the front of the probe assembly may encounter corrosive gases, liquids or demanding pressure conditions. The 146054 family uses an alumina ceramic sensing cap with a stainless-steel probe case and operates as part of a compatible 3300 proximity transducer system.
|
01
CONFIGURATION
011 / 20 / 02 / 05
011 — 1.1 in case-length option
20 — 2.0 m total probe length 02 — Miniature coaxial ClickLoc connector 05 — CSA / ATEX / IECEx approval option |
|
02 / MEASUREMENT SYSTEM
A component within a complete proximity chain
The 146054 ceramic-capped probe is used as the sensing element within a compatible 3300 proximity transducer arrangement. The probe works together with the appropriate extension cable and Proximitor Sensor to establish the complete measurement chain. |
|
|
03 / APPLICATION PROFILE
When the sensing environment gets difficult
|
3300 CERAMIC CAPPED FAMILY
Related configurations
146054
3/8-24 UNF ceramic-capped probe without armor.
146055
Reverse-mount ceramic-capped probe configuration for compatible housings.
146056
Ceramic probe arrangement with stainless-steel tubing protecting the rear cable section.
|
|
DIRECT PRODUCT SUPPORT
Need the exact
146054 configuration? Send the complete part number and application details. Our sales team can help check the requested configuration and arrange an international quotation. |
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
|
PAYMENT
T/T
|
|
FAST QUOTATION
Send these five details
Complete purchasing details help us respond with the requested configuration and delivery arrangement.
|
|
||||||
|
Can 146054-011-20-02-05 be treated as a direct replacement for any 3300 proximity probe?
No. The complete part number defines the mechanical case option, probe length, connector arrangement and approval configuration. The ceramic-capped probe also has a response curve different from a standard 3300 XL probe, so the installed measurement chain and monitor configuration should be checked before substitution.
|
What does 146054-011-20-02-05 indicate for an existing installation?
The 146054 base identifies the ceramic-capped probe family. The 011 option corresponds to a 1.1-inch case-length configuration, 20 corresponds to a 2.0 m total probe length, 02 specifies the miniature coaxial ClickLoc connector with standard cable, and 05 corresponds to the CSA, ATEX and IECEx approval option.
|
|
Why would 146054-011-20-02-05 be selected for a corrosive process environment?
The sensing end uses an alumina ceramic cap and the probe case uses AISI 304 stainless steel. The 146054 family was developed for applications in which the front of the probe assembly can encounter corrosive gases or liquids, including demanding chemical environments.
|
What should be checked around the 146054-011-20-02-05 probe during installation?
Match the 3/8-24 UNF mounting arrangement, maintain the specified electrical gap, and avoid direct mechanical loading or contact at the ceramic tip. The rear of the 146054 assembly is not sealed, so it must be protected from destructive media such as water, ammonia, ammonium hydroxide and hydrogen sulfide.
|
|
Does 146054-011-20-02-05 need to be evaluated as a complete 3300 measurement chain?
Yes. The probe is one part of a proximity transducer system. The probe, extension cable and Proximitor Sensor must be compatible as a complete arrangement. The 2.0 m probe length and the connector configuration should therefore be matched with the installed system rather than evaluated in isolation.
|
|
