Bently Nevada 31000 Series
31000-30-05-15-049-01-02

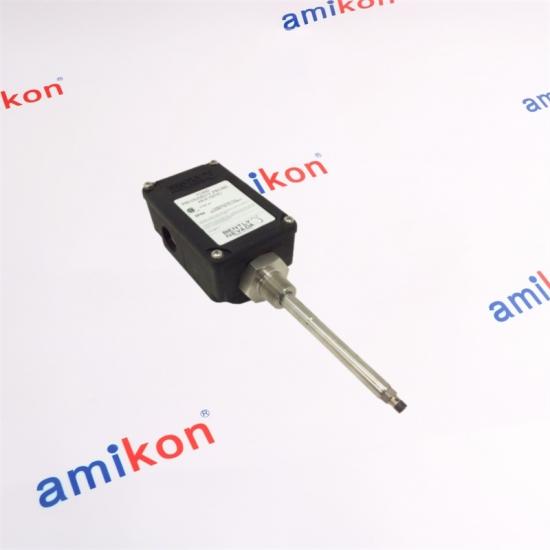

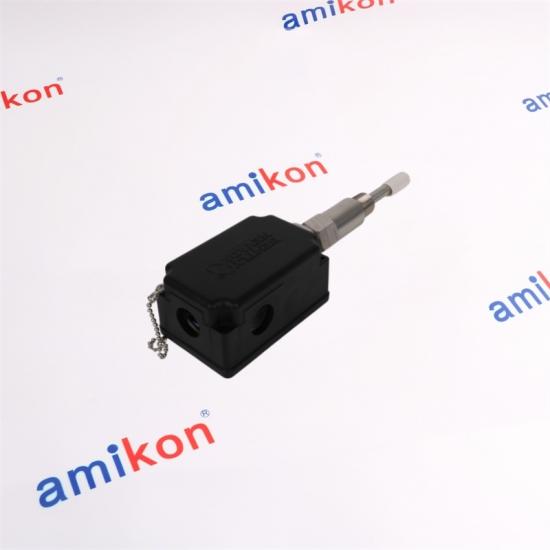

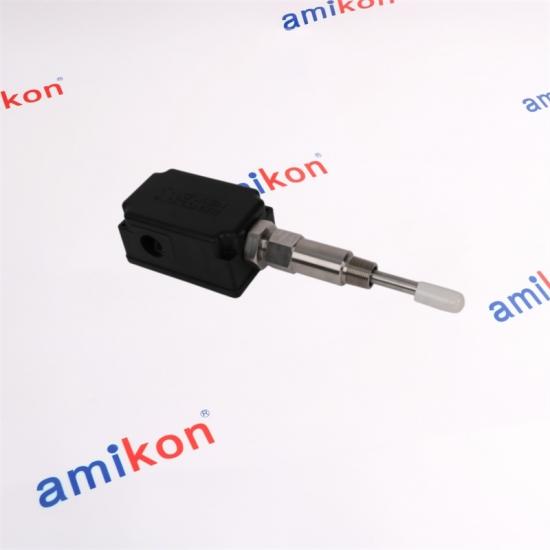

Proximity Probe Housing Assembly
A robust external housing solution for mounting proximity probes through the machine case, supporting radial vibration and Keyphasor measurement applications.
|
30
3300 XL 8 mm probe with connector protector
049
4.9 in probe penetration option
31000 Proximity Probe Housing
|
|
01 / PROBE
3300 XL 8 mm
Connector protector and multiple approvals configuration.
|
02 / MOUNTING
1.5 in Standoff
Minimum standoff adapter length of 1.5 in (38 mm).
|
03 / PENETRATION
4.9 in
Probe penetration option configured as 049.
|
| Housing Series | 31000 Proximity Probe Housing Assembly |
| Probe Configuration | 3300 XL 8 mm probe with connector protector, multiple approvals |
| Probe Cable | 0.5 m (20 in) |
| Standoff Adapter | 1.5 in (38 mm) minimum length |
| Probe Penetration | 4.9 in (124.46 mm) |
| Fittings | One 3/4-14 NPT fitting and two plugs |
| Mounting Thread | 3/4-14 NPT |
| Housing Material | Glass-reinforced polyphenylene sulfide (PPS) thermoplastic |
| Sleeve / Retaining Chain | AISI 304 stainless steel |
| Outer Sleeve / Screws | AISI 303 stainless steel |
| Typical Weight | 1.2 kg (2.6 lb) |
|
ENVIRONMENT
Built for Demanding Areas
|
DESIGN VALUE
External Access Advantage
The housing provides external access to the proximity probe and extension cable. This allows probe gap adjustment or probe replacement without disassembling the machine.
Designed for radial measurement applications
Suitable for radially mounted transducers used for vibration or Keyphasor measurements. The housing is intended for mechanical and environmental protection and is not an explosion-proof housing.
|
|
01
Rotating Machinery
Used where radial vibration or Keyphasor measurements are required on rotating equipment.
|
02
Machine-Case Mounting
Designed for proximity probes installed through the machine case.
|
03
Maintenance Access
External access simplifies gap adjustment and probe replacement during maintenance.
|
Professional Team
|
Warehouse & Inventory
|
|
Ready for Your Maintenance Schedule?
Fast response, practical support and dependable industrial automation supply.
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
| 01. What probe configuration is specified for 31000-30-05-15-049-01-02?
The 30 option specifies a 3300 XL 8 mm probe with connector protector and multiple approvals.
|
| 02. What does the 05 option specify?
The 05 option specifies a 0.5 m (20 in) probe cable.
|
| 03. What is the significance of the 049 configuration?
The 049 probe penetration option corresponds to 4.9 in of penetration.
|
| 04. What fittings are specified by option 01?
Option 01 provides one 3/4-14 NPT fitting and two plugs.
|
| 05. Can this housing be used for axial position measurement with dual probes?
No. For shaft axial-position measurement using dual proximity probes, the 21022 housing is specified instead.
|
|
