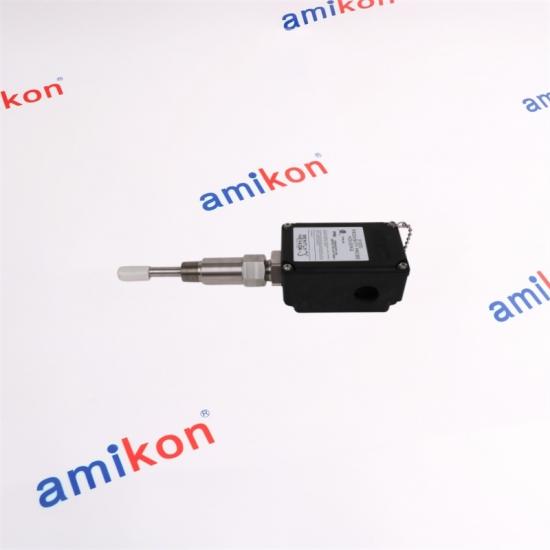

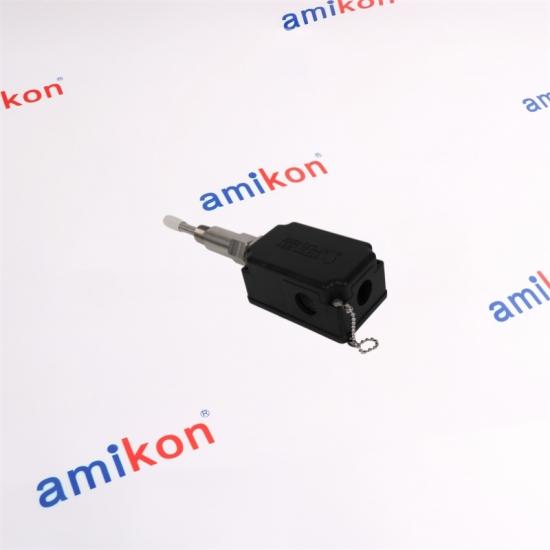

A long-reach 31000 housing with an installed 3300 XL 8 mm probe, 1.0 m lead, 1.5 in standoff adapter, 10.0 in probe penetration, dual 3/4-14 NPT conduit fittings and a 3/4-14 NPT machine-case mounting thread.
| Probe 3300 XL 8 mm |
Lead 1.0 m |
Geometry 1.5 in standoff / 10.0 in penetration |
| 31000 | English proximity probe housing assembly |
| 16 | 3300 XL 8 mm probe with connector |
| 10 | 1.0 m (39 in) probe cable |
| 15 | 1.5 in (38 mm) standoff adapter |
| 100 | 10.0 in (254 mm) probe penetration |
| 02 | Two 3/4-14 NPT fittings and one plug |
| 02 | 3/4-14 NPT mounting thread |
| Housing Construction and Operating Boundaries | |
|---|---|
| Housing body | Conductive, glass-reinforced polyphenylene sulfide |
| Sleeve and retaining chain | AISI 304 stainless steel |
| Outer sleeve and exterior screws | AISI 303 stainless steel |
| Housing seal | Neoprene O-ring; Viton O-ring inside the probe case |
| Environmental protection | Type 4X and IP66 |
| Housing temperature | -51°C to +105°C (-60°F to +221°F) |
| Typical weight | 1.2 kg (2.6 lb) |
| Retaining-nut torque | 29.4 N·m (260 in·lb) |
| Installed geometry | 1.5 in standoff + 10.0 in penetration = 11.5 in; sleeve adjustment ±0.5 in |
| ◎ | Installation Purpose This configuration adds a 1.5 in standoff and 10.0 in probe penetration for installations that require clearance from the machine surface and deeper reach toward the shaft target. Its combined C plus D dimension is 11.5 in, below the 12 in point at which an additional sleeve support is required. The bracket, threaded port and target alignment must still resist vibration and thermal movement. |
| 3300 XL 8 mm Probe 1.0 m integrated lead |
→ | 31000-16-10-15-100-02-02 1.5 in standoff; 10.0 in penetration |
→ | Extension Cable and Sensor Matched 3300 XL 8 mm chain |
| Selection Point | 31000-16-10-15-100-02-02 | Comparison Boundary |
|---|---|---|
| Standoff | 1.5 in | Minimum selectable standoff length |
| Penetration | 10.0 in | Longer than the 3.0 in short-reach configuration |
| C plus D | 11.5 in | 0.5 in below the extra-support threshold |
Our large stock of industrial products is ready for delivery. More than 400,000 electronic products cover PLC, HMI, drives, servo and CNC devices, IPC and PG. New and discontinued parts range from individual modules to complete configurations.
Market insight, technology development and customer demand guide strategic purchasing. If an item is temporarily unavailable, our preferred supplier network can support the search. Broad brand coverage helps customers restore production quickly and reduce downtime-related loss.
| Multilingual Support Dedicated customer communication |
Order Tracking Customized relationship management |
Clear Cost Structure No extra handling or hidden charges |
Sales Manager · Configuration Review · Availability · Delivery Coordination
| Email Miya For quotations and configuration checks Send Email → |
WhatsApp Miya For fast order and shipment communication Open WhatsApp → |
| Q | Does 31000-16-10-15-100-02-02 include a complete measurement chain? It includes the housing and 3300 XL 8 mm probe with a 1.0 m lead. A correctly matched extension cable, Proximitor Sensor, field wiring and monitor channel are still required. |
| Q | Why is the 1.5 in standoff important on 31000-16-10-15-100-02-02? It moves the housing away from the machine surface to provide clearance while the 10.0 in sleeve reaches the target. Confirm that this geometry matches the case wall, insulation and bearing layout. |
| Q | Does 31000-16-10-15-100-02-02 require an additional sleeve support? The combined standoff and penetration is 11.5 in, below the stated greater-than-12-in support condition. Do not increase either dimension without reevaluating resonance control. |
| Q | What mechanical checks reduce risk with 31000-16-10-15-100-02-02? Confirm 3/4-14 NPT engagement, sleeve straightness, retaining-nut torque, rigid support, target clearance and absence of side-view or rear-view metal effects near the probe tip. |
| Q | What electrical checks should follow installation of 31000-16-10-15-100-02-02? Match the probe lead and extension cable to the Proximitor Sensor length, secure all connectors, set the static gap voltage and verify channel polarity and dynamic response before service. |
