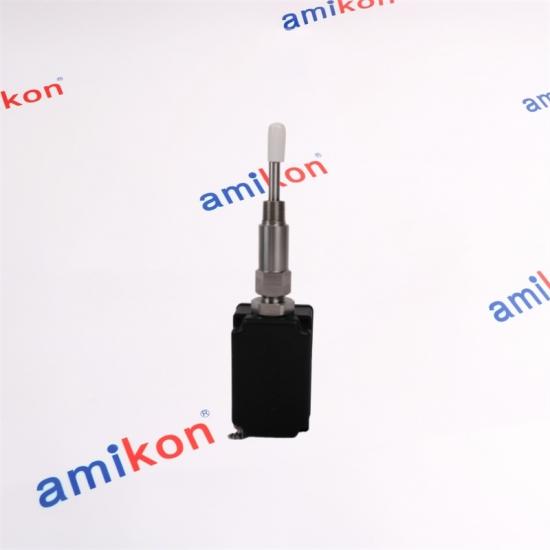

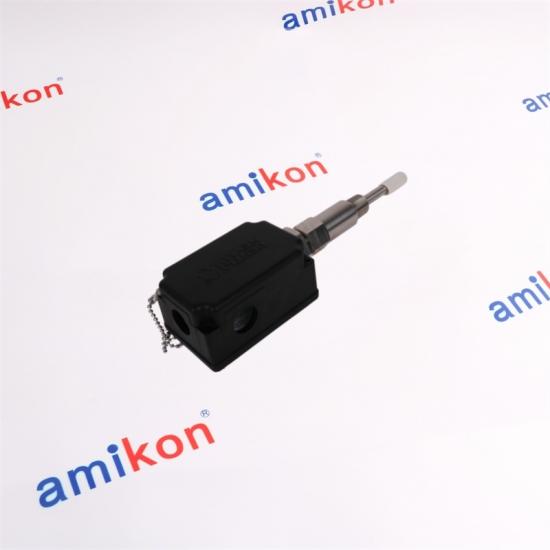

An externally accessible 31000 housing with an installed 3300 XL 8 mm probe, 1.0 m lead, no standoff adapter, 3.0 in probe penetration, dual 3/4-14 NPT conduit fittings and a 3/4-14 NPT machine-case mounting thread.
| Probe 3300 XL 8 mm |
Lead 1.0 m |
Geometry 0.0 in standoff / 3.0 in penetration |
| 31000 | English proximity probe housing assembly |
| 16 | 3300 XL 8 mm probe with connector |
| 10 | 1.0 m (39 in) probe cable |
| 00 | No standoff adapter |
| 030 | 3.0 in (76 mm) probe penetration |
| 02 | Two 3/4-14 NPT fittings and one plug |
| 02 | 3/4-14 NPT mounting thread |
| Housing Construction and Operating Boundaries | |
|---|---|
| Housing body | Conductive, glass-reinforced polyphenylene sulfide |
| Sleeve and retaining chain | AISI 304 stainless steel |
| Outer sleeve and exterior screws | AISI 303 stainless steel |
| Housing seal | Neoprene O-ring; Viton O-ring inside the probe case |
| Environmental protection | Type 4X and IP66 |
| Housing temperature | -51°C to +105°C (-60°F to +221°F) |
| Typical weight | 1.2 kg (2.6 lb) |
| Retaining-nut torque | 29.4 N·m (260 in·lb) |
| Installed geometry | 0.0 in standoff + 3.0 in penetration; sleeve adjustment ±0.5 in |
| ◎ | Installation Purpose This short-reach configuration supports external probe access where the machine-case wall and bearing geometry do not require a standoff adapter. The housing permits probe gap adjustment or replacement without machine disassembly. For radial vibration, the casing must be rigidly affixed to the bearing so that the probe measures true shaft-to-bearing relative motion. |
| 3300 XL 8 mm Probe 1.0 m integrated lead |
→ | 31000-16-10-00-030-02-02 No standoff; 3.0 in penetration |
→ | Extension Cable and Sensor Matched 3300 XL 8 mm chain |
| Selection Point | 31000-16-10-00-030-02-02 | Comparison Boundary |
|---|---|---|
| Standoff | None | Use a standoff option when extra clearance is required |
| Penetration | 3.0 in | Longer sleeves must remain within cable-length limits |
| C plus D | 3.0 in | Additional sleeve support applies above 12 in |
Our large stock of industrial products is ready for delivery. More than 400,000 electronic products cover PLC, HMI, drives, servo and CNC devices, IPC and PG. New and discontinued parts range from individual modules to complete configurations.
Market insight, technology development and customer demand guide strategic purchasing. If an item is temporarily unavailable, our preferred supplier network can support the search. Broad brand coverage helps customers restore production quickly and reduce downtime-related loss.
| Multilingual Support Dedicated customer communication |
Order Tracking Customized relationship management |
Clear Cost Structure No extra handling or hidden charges |
Sales Manager · Configuration Review · Availability · Delivery Coordination
| Email Miya For quotations and configuration checks Send Email → |
WhatsApp Miya For fast order and shipment communication Open WhatsApp → |
| Q | Does 31000-16-10-00-030-02-02 include the probe and cable? Yes. Option 16 includes a 3300 XL 8 mm probe with connector, and option 10 selects a 1.0 m probe lead. The matching extension cable and Proximitor Sensor remain separate system elements. |
| Q | Is 31000-16-10-00-030-02-02 suitable for a pressurized machine case? The internal probe seal can separate differential pressure between the probe tip and housing body, but the housing itself is not a pressure vessel. Confirm the machine sealing design and process boundary before installation. |
| Q | What mounting geometry should be verified for 31000-16-10-00-030-02-02? Confirm the 3/4-14 NPT mounting port, 3.0 in nominal penetration, available ±0.5 in adjustment, target clearance and room for the housing cover and conduit fittings. |
| Q | Does 31000-16-10-00-030-02-02 need extra sleeve support? Its C plus D dimension is 3.0 in, below the 12 in threshold. Additional support is not triggered by length, although the complete installation must remain mechanically rigid. |
| Q | Which commissioning checks matter for 31000-16-10-00-030-02-02? Verify thread engagement, retaining-nut torque, probe gap voltage, connector security, conduit sealing, extension-cable match and channel response before enabling machine protection. |
