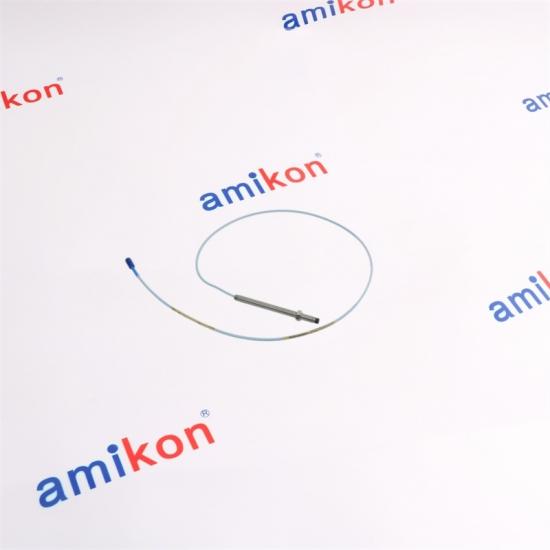

A 3300 XL 8 mm proximity probe with a 3/8-24 UNF threaded case, zero unthreaded tip length, 4.7 in overall case length, 0.5 m total lead, miniature coaxial ClickLoc connector, standard cable and multiple-approvals option.
|
01
Exact Build Code |
|
| Probe Build & System Performance | |
|---|---|
| Probe type | 8 mm eddy-current proximity probe, non-armored |
| Thread | 3/8-24 UNF-2A |
| Unthreaded length | 0.0 in; threaded body begins at the probe-tip region |
| Overall case length | 4.7 in |
| Total probe length | 0.5 m (1.6 ft) |
| System linear range | 2.0 mm (80 mils), approximately 0.25 to 2.3 mm gap |
| System scale factor | 7.87 V/mm (200 mV/mil), ±5% over the linear range |
| Frequency response | 0 to 10 kHz, +0 / -3 dB with up to 305 m field wiring |
| Minimum target size | 15.2 mm (0.6 in) diameter, flat target |
The probe supports non-contact measurement of shaft vibration and position in rotating machinery. The 4.7 in threaded case offers a long adjustment span, while the 0.5 m lead suits layouts where a matched extension cable completes the selected 5 m or 9 m system. Final performance depends on the probe, extension cable, Proximitor Sensor, target material and monitor channel operating as one chain.
| 330101 Probe 3/8-24 UNF, no armor |
→ | Matched Extension Cable Completes 5 m or 9 m length |
→ | 330180 Sensor 5 m or 9 m system option |
| Family Member | Thread | Mechanical Protection |
|---|---|---|
| 330101 | 3/8-24 UNF | Without armor |
| 330102 | 3/8-24 UNF | With armor |
| 330103 / 330104 | M10 × 1 | Without / with armor |
Our large stock of industrial products is ready for delivery. More than 400,000 electronic products cover PLC, HMI, drives, servo and CNC devices, IPC and PG. New and discontinued parts range from individual modules to complete configurations.
Market insight, technology development and customer demand guide strategic purchasing. If an item is temporarily unavailable, our preferred supplier network can support the search. Broad brand coverage helps customers restore production quickly and reduce downtime-related loss.
| Multilingual Support Dedicated customer communication |
Order Tracking Customized relationship management |
Clear Cost Structure No extra handling or hidden charges |
| Email sales1@amikon.cn |
Support Scope Configuration check, availability and shipment planning |
Raise any concern within 7 days after delivery. Keep the item in its original condition and state the reason for return. After the returned item arrives and is checked, an eligible refund or replacement can be arranged. Return shipping costs remain with the buyer.
| Q | Can 330101-00-47-05-02-05 connect directly to any 330180 Proximitor Sensor? Only when the probe plus matched extension cable equals the sensor system-length option. A 0.5 m probe needs the correct remaining cable length for the chosen 5 m or 9 m chain. |
| Q | What mounting detail should be confirmed for 330101-00-47-05-02-05? Confirm a 3/8-24 UNF threaded mounting point, adequate clearance for the 4.7 in case, the required adjustment range and a stable bracket. Metric M10 × 1 installations use a different probe family. |
| Q | Does 330101-00-47-05-02-05 include a connector protector or FluidLoc cable? No. Option 02 selects standard cable with the miniature coaxial ClickLoc connector and no connector protector. FluidLoc and protector choices use other codes. |
| Q | What target conditions support accurate 330101-00-47-05-02-05 operation? Use a flat target at least 15.2 mm in diameter, maintain proper probe-to-target alignment and account for target material when verifying scale factor. AISI 4140 steel is the standard calibration target. |
| Q | Which checks reduce commissioning risk for 330101-00-47-05-02-05? Verify the complete order code, mechanical clearance, cable routing, connector engagement, total electrical length, static gap voltage, channel polarity and dynamic response before protection logic is enabled. |
