ALLEN-BRADLEY | POWERFLEX 7000
80190-320-02-R

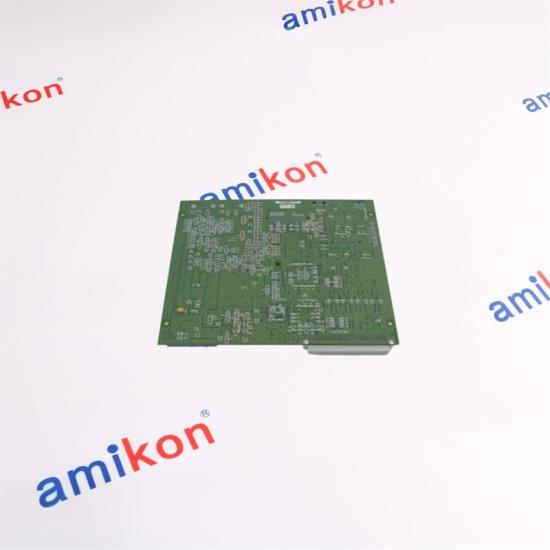

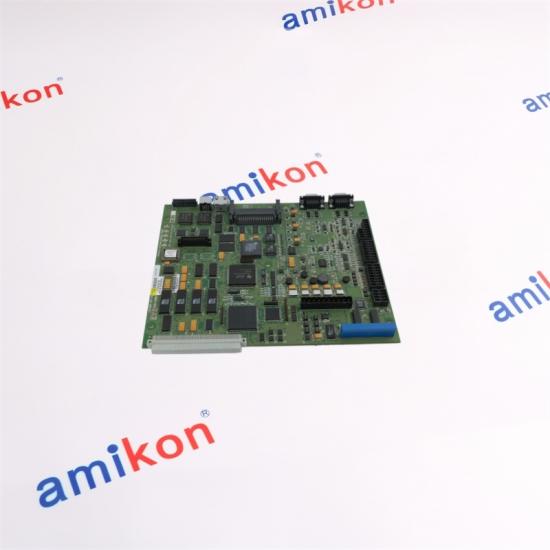

Customer Interface Board for PowerFlex 7000 Medium-Voltage AC Drives
The 80190-320-02-R is a Customer Interface Board used within the PowerFlex 7000 drive architecture. The Customer Interface Board acts as a central connection point for control-level signals entering and leaving the drive, linking customer-facing control functions with the drive control system.
Its role is particularly important when maintaining an established PowerFlex 7000 installation where customer I/O, external fault circuits, communication interfaces and related control connections depend on the CIB architecture.
|
Designed as part of the PowerFlex 7000 low-voltage control architecture rather than as a standalone drive.
|
|
CUSTOMER I/O
External control connections
|
FAULT SIGNALS
External fault interface
|
COMMUNICATION
Drive communication interfaces
|
SYSTEM HUB
Central control-level interface
|
|
What the 80190-320-02-R Does
The Customer Interface Board is the hub for control-level signals external to the PowerFlex 7000 drive. It provides the connection point through which customer-facing control and communication functions are routed into the drive control architecture.
Depending on the installed PowerFlex 7000 configuration, the CIB is associated with analog I/O, external fault circuits, SCANport/DPI communication modules, Remote I/O, terminal interfaces and other external communication equipment.
Replacement consideration: the CIB is part of a larger drive-control architecture. Correct board identification and matching of the installed PowerFlex 7000 configuration should be completed before replacement.
|
Main Interface Functions
|
| Item | Description |
| Part Number | 80190-320-02-R |
| Product Type | Customer Interface Board (CIB) |
| Drive Platform | Allen-Bradley PowerFlex 7000 |
| Drive Class | Medium-Voltage AC Drive |
| Primary Role | Central interface for control-level signals external to the drive |
| Analog I/O | Supported through the customer interface architecture |
| External Fault Interface | Supported through the PowerFlex 7000 control architecture |
| Communication Functions | SCANport / DPI and other external communication interfaces, configuration dependent |
| Remote I/O | Supported within the PowerFlex 7000 external control architecture |
| Terminal Interface | Customer terminal interface connections |
| Related External Devices | Printer, modem and communication equipment, depending on drive configuration |
| Installation Position | Low-voltage control section of the PowerFlex 7000 drive architecture |
|
DRIVE PLATFORM
PowerFlex 7000
|
PowerFlex 7000 is a medium-voltage AC drive platform designed for industrial motor-control applications. Its control architecture combines drive control boards, customer interface functions, communication interfaces and external I/O so the drive can interact with the surrounding process-control system.
|
|
Customer Interface
The CIB provides the central connection point for customer-facing control-level signals.
|
Control Architecture
Customer I/O, communication and external fault functions are integrated into the wider drive-control system.
|
Maintenance Role
A suitable spare can help reduce downtime when an installed drive requires CIB replacement.
|
|
Where the 80190-320-02-R Fits
The 80190-320-02-R belongs to the customer-facing control side of the PowerFlex 7000 drive. It becomes relevant when the external control interface of an installed PowerFlex 7000 system needs maintenance, replacement or spare-parts coverage.
Because the CIB connects several categories of external control functions, an issue involving the board can affect the way customer signals, communication devices or external fault circuits interact with the drive.
|
|
|
REPLACEMENT CHECK
Confirm the installed configuration before ordering.
|
|
|
DIRECT SALES SUPPORT
Need 80190-320-02-R?
Send the exact part number and your PowerFlex 7000 machine details so our sales team can check the requested configuration and quotation requirements.
|
|
||||
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
|
|
01. How should I verify that 80190-320-02-R matches my PowerFlex 7000 installation?
Start with the exact board part number and confirm that the installed drive uses the PowerFlex 7000 Customer Interface Board architecture. The drive frame, control arrangement, board identification and existing connections should also be checked before replacement. Similar-looking control boards should not be treated as interchangeable without configuration verification.
|
02. Why would a maintenance team keep 80190-320-02-R as a spare rather than replacing the complete drive?
The CIB is one component within the PowerFlex 7000 control architecture. When the drive cabinet and other major assemblies remain serviceable, replacing the failed interface board can address a board-level maintenance requirement without treating the entire drive as the replacement item.
|
|
03. What customer-side functions make 80190-320-02-R important during troubleshooting?
The CIB is associated with external control-level functions including analog I/O, external fault signals, SCANport/DPI communication modules, Remote I/O and terminal interfaces. It also provides routing for certain external communication equipment. This makes the board relevant when several external control functions are being investigated together.
|
04. What should I check before replacing 80190-320-02-R after an external I/O problem?
Confirm whether the issue is actually associated with the CIB rather than field wiring, connected devices, communication modules, power supplies or another control board. Once the board is identified as the replacement item, verify the exact part number and all relevant connections before installation.
|
|
05. Can 80190-320-02-R support planned maintenance for an older PowerFlex 7000 system?
It can be considered as a maintenance spare when the installed PowerFlex 7000 system uses the corresponding Customer Interface Board arrangement. Before purchasing for inventory, match the existing board identification and drive configuration so the spare is appropriate for the intended cabinet.
|
|
|
