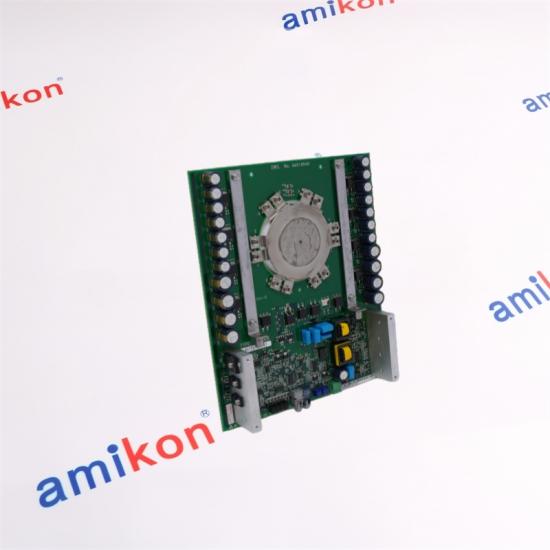

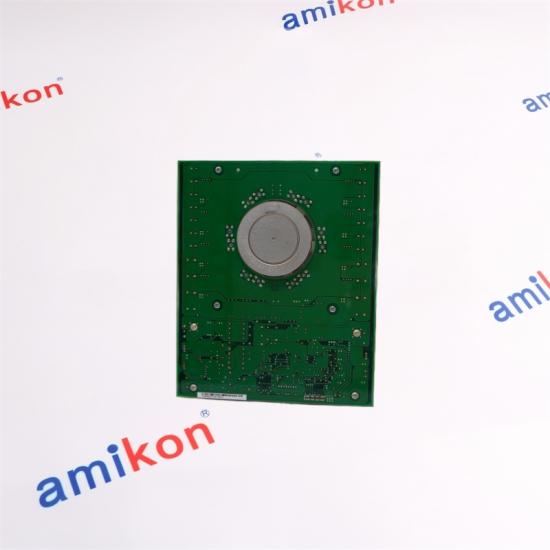

Allen Bradley 80173-109-01-2 Gate Commutated Turn-off Thyristor Unit

Allen Bradley 80173-109-01-2 Gate Commutated Turn-off Thyristor Unit

Parameters

&VDRM / VRRM: 6 500 V repetitive peak off-state & reverse voltage

&IT(RMS): 800 A continuous on-state current (520 A average)

&Surge capability: 4.8 kA for 10 ms, I²t 9.6×10⁴ A²s

&Turn-on / turn-off times: 2.5 µs / 5 µs (typ.)

&di/dt & dv/dt: 1 000 A µs⁻¹ / 1 000 V µs⁻¹ (rated)

&Gate ratings: ±21 V, 800 A reverse, 5 kW peak forward power

&Temp. range: –40 °C … +125 °C operational, –65 °C … +150 °C storage

&Package: TO-246 (1.15 kg), built-in gate-drive & protection

Applications

&Medium-voltage AC motor drives—gives fast, low-loss switching for 3.3-4.16 kV inverters up to 800 A.

&Static converters & high-power UPS—handles 6.5 kV DC link while keeping switching losses low.

&Renewable-energy inverters (wind, solar)—rugged GCT structure survives high di/dt and extends service life.

Call Miya, get the best price

( Whatsapp：+86-18020776792

* E-mail：sales@amikon.cn  

Our service

& Professional support, complete parts supply

& Trusted service with full component coverage

&Comprehensive support, every part you need

&Quality:original and brand new

&Payment Term: T/T Wire Transfer

&Warranty: 12 Months Warranty

&Shipment : Worldwide Fast Shipment

Our specialty is stocking parts that have been discontinued by manufacturers.

One of our top priorities is comprehensive, professional and timely customer service.

We are constantly improving our service quality and the quality of our employees. We treat every order with 110% commitment.
