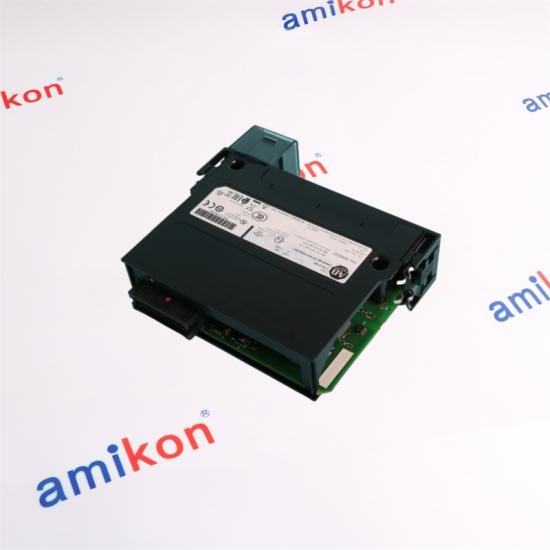

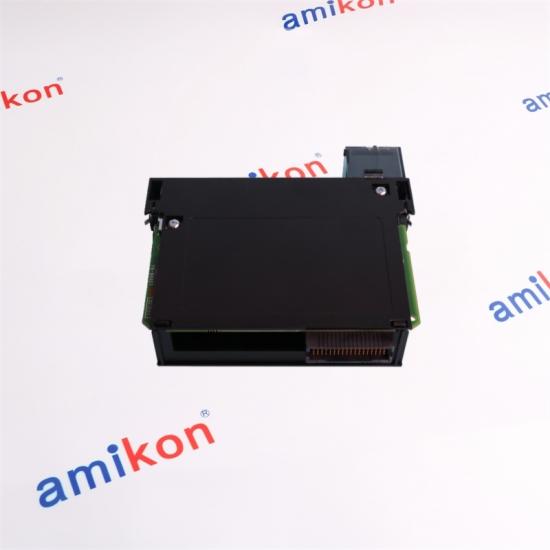

Allen Bradley 1756-IF16K analog I/O module

Allen Bradley 1756-IF16K analog I/O module

Parameters

&Module Type: ControlLogix 16-point analog input, conformal-coated

&Wiring modes: 16 single-ended / 8 differential / 4 high-speed differential

&Input ranges: ±10 V, 0…10 V, 0…5 V, 0…20 mA

&Resolution: 16-bit (320 µV/count @ ±10.25 V; 0.32 µA/count @ 0…20.5 mA)

&Back-plane draw: 5 V 200 mA / 24 V 35 mA (total 1.86 W)

&Accuracy @25 °C: voltage ≤0.05 %, current ≤0.3 % of range

&Open-circuit detect: <5 s to full-scale, over-voltage 30 V DC max

&Bandwidth / noise: 5 Hz, normal-mode >80 dB, common-mode >100 dB @ 50/60 Hz

Applications

&Plant-wide DCS temperature, pressure & flow loops—16 channels in one slot cut panel space and wiring cost.

&High-speed web or conveyor lines—differential mode rejects motor-drive noise while tracking tension or position sensors.

&Remote pump-skid monitoring—conformal coating survives corrosive atmospheres while single-ended wiring keeps installation simple.

Call Miya, get the best price

( Whatsapp：+86-18020776792

* E-mail：sales@amikon.cn  

Our service

& Professional support, complete parts supply

& Trusted service with full component coverage

&Comprehensive support, every part you need

&Quality:original and brand new

&Payment Term: T/T Wire Transfer

&Warranty: 12 Months Warranty

&Shipment : Worldwide Fast Shipment

Our specialty is stocking parts that have been discontinued by manufacturers.

One of our top priorities is comprehensive, professional and timely customer service.

We are constantly improving our service quality and the quality of our employees. We treat every order with 110% commitment.
