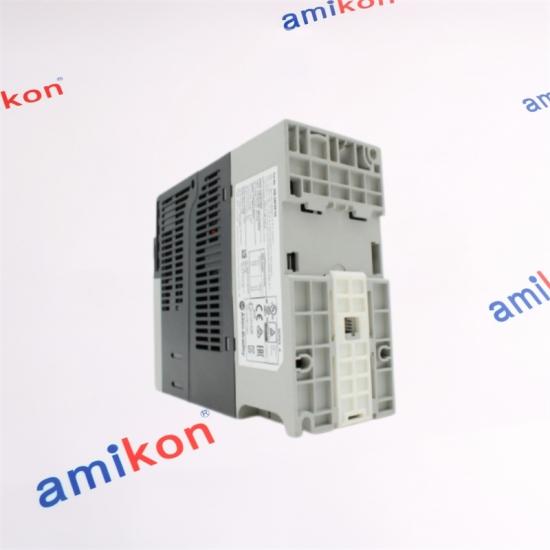

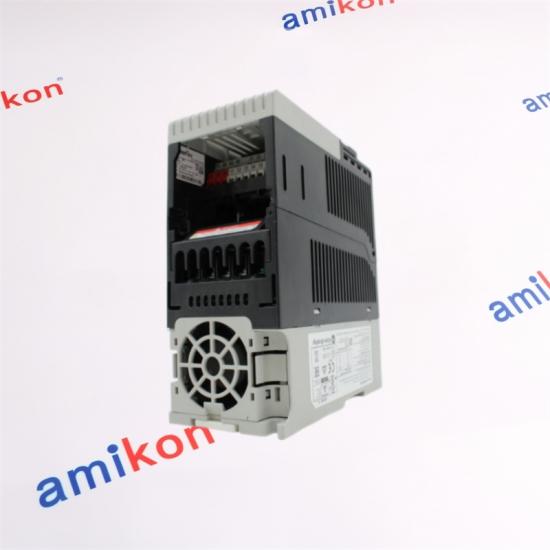

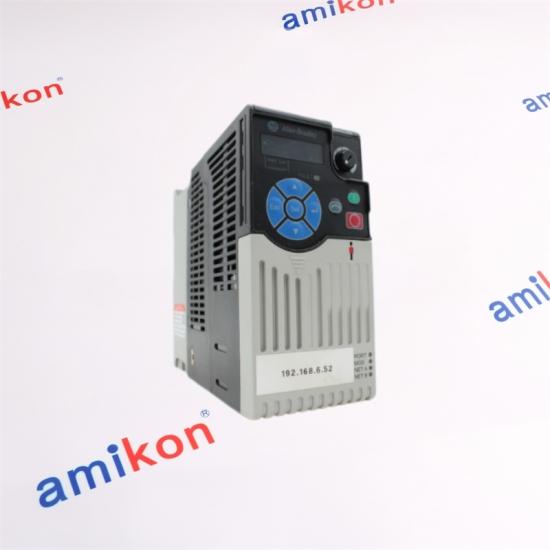

POWERFLEX 525 AC DRIVE
25B-D6P0N104
A 3 Hp / 2.2 kW PowerFlex 525 AC drive for 380–480V AC three-phase applications, with embedded EtherNet/IP, integrated safety, Frame A construction and an IP20 / NEMA Open enclosure.
|
|
|
Network Ready
Embedded EtherNet/IP connectivity
|
Integrated Safety
Safety capability built into the drive platform
|
Compact Frame
Frame A configuration
|
Local Interface
Integral keypad with potentiometer and LED display
|
|
TECHNICAL PROFILE
Electrical & Drive Characteristics
|
| Parameter | Value | Configuration |
| Catalog number | 25B-D6P0N104 | PowerFlex 525 |
| Normal Duty rating | 3 Hp / 2.2 kW | 3 Hp / 2.2 kW |
| Heavy Duty rating | 3 Hp / 2.2 kW | 3 Hp / 2.2 kW |
| Input voltage | 380–480V AC | Three-phase |
| Output current | 6.0 A | Rated output |
| Frequency rating | 50–60 Hz | AC input |
| Power factor | 0.98 | Rated characteristic |
| Frame size | A | Compact frame |
| Enclosure | IP20 / NEMA Open | Open type |
| Internal filter | No Filter | N104 configuration |
| Communication | Embedded EtherNet/IP | Integrated network interface |
| Brake IGBT | Included | Integrated braking capability |
| User interface | Integral keypad | Potentiometer & LED display |
|
APPLICATION FIT
Where the 25B-D6P0N104 Fits
The PowerFlex 525 is intended for adjustable-speed control of AC motors in industrial machines and equipment. The embedded EtherNet/IP interface makes this model particularly relevant to machine architectures where the drive communicates as part of an EtherNet/IP automation network.
|
WHEN REPLACEMENT BECOMES URGENT
A Drive Failure Can Stop the Motor
Maintenance teams commonly search for an exact catalog number when an installed drive fails or becomes unreliable and production cannot wait for a lengthy component-matching process.
Potential production impact
If the affected motor is part of a production-critical machine, loss of drive operation can interrupt the associated process and extend unplanned downtime.
|
|
PURCHASING FAQ
Five Questions Before Ordering
|
|
01 How can I avoid receiving the wrong PowerFlex 525 variant?
Use the complete catalog number rather than matching only the motor horsepower. The 25B-D6P0N104 designation specifies a particular voltage class, current rating, frame, enclosure, filter configuration and feature combination.
|
|
02 Why should the existing drive's network arrangement be checked before replacement?
Because this model incorporates embedded EtherNet/IP, confirming how the installed drive communicates with the machine controller helps prevent an otherwise correct power rating from being treated as a complete replacement match.
|
|
03 What should be considered if the failed unit was operating in a safety-related machine architecture?
The 25B-D6P0N104 includes integrated safety capability, so the replacement assessment should consider the existing safety architecture and the way the installed drive's safety functions are incorporated into the machine.
|
|
04 When does the no-filter configuration matter during replacement?
It matters when the existing installation was selected around a no-filter drive configuration. Replacing it with a different emission configuration without checking the electrical installation can change the intended system arrangement.
|
|
05 What should I send when the machine is already down and the exact replacement is urgent?
Send the exact part number, required quantity, destination, required date and machine or system name. These five details make it easier to evaluate the request against the actual replacement requirement.
|
|
