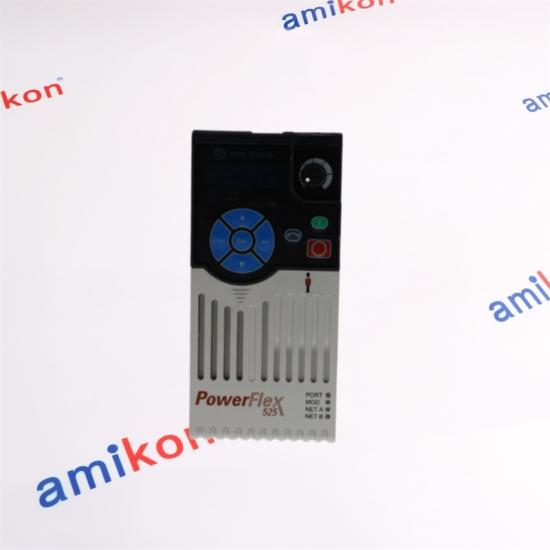

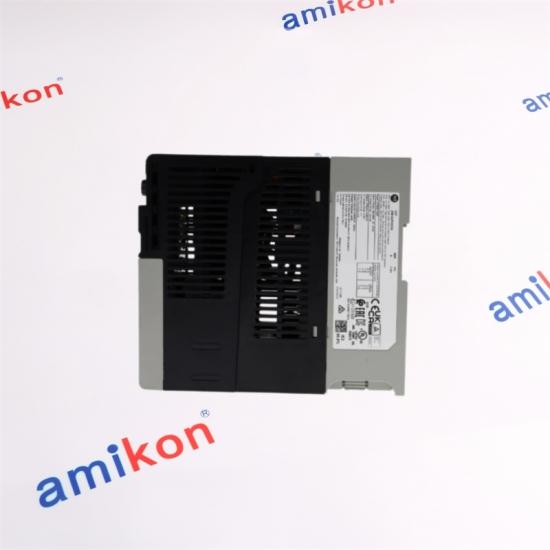

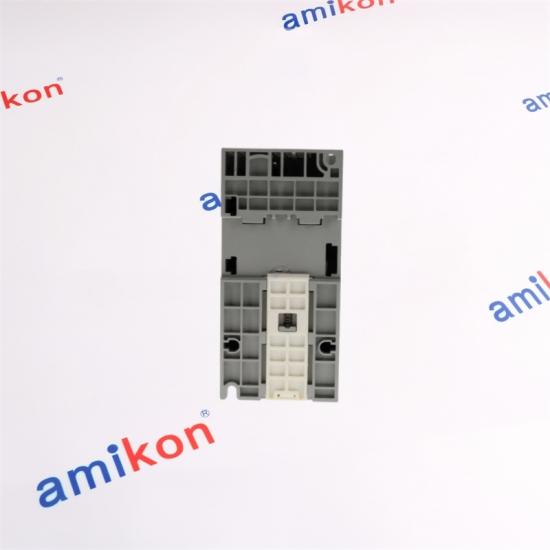

PowerFlex 525 AC Drive
25B-D2P3N104
A compact 0.75 kW / 1 Hp AC drive designed for three-phase applications in the 380–480V range, combining embedded EtherNet/IP connectivity with integrated safety functionality.
|
PRODUCT IDENTIFICATION
25B-D2P3N104
Embedded EtherNet/IP • Integrated Safety
|
|
DESIGNED FOR CONTROL
Compact drive, practical integration
The PowerFlex 525 platform brings drive control, network connectivity and safety capability into a compact architecture suited to machine-level motor control.
|
PART MATCHING
Built around the exact rating
When replacing a drive, the voltage class, motor rating, output current, frame size and enclosure arrangement should all be checked against the existing installation.
|
|
TECHNICAL PROFILE
Electrical & Construction Details
|
| Parameter | 25B-D2P3N104 |
| Product family | PowerFlex 525 AC Drive |
| Normal Duty rating | 1 Hp / 0.75 kW |
| Heavy Duty rating | 1 Hp / 0.75 kW |
| Input voltage | 380–480V AC |
| Input configuration | 3-phase |
| Output current rating | 2.3 A |
| Frame size | Frame A |
| Enclosure | IP20 / NEMA / Open Type |
| Internal filter | No Filter |
| Network capability | Embedded EtherNet/IP |
| Safety capability | Integrated safety |
| Brake IGBT | Included |
| User interface | Integral keypad with potentiometer and LED display |
|
WHERE IT FITS
Machine-Level Motor Control
The PowerFlex 525 is positioned for adjustable-speed control of AC motors in machine and equipment applications. Its integrated EtherNet/IP capability makes it suitable where drive-level control needs to communicate with an automation network.
Typical replacement trigger
A failed drive, abnormal motor control, loss of drive communication, or an unexpected production stop can lead maintenance teams to search by the exact catalog number rather than by a general drive family.
|
DOWNTIME CONSIDERATION
|
|
PURCHASING FAQ
Five Questions Before Replacement
|
|
01 What should be checked before ordering a 25B-D2P3N104 replacement?
Confirm the complete catalog number and compare the installed drive's voltage class, motor rating, current requirement, frame arrangement and enclosure characteristics. This reduces the risk of matching only the horsepower while overlooking a critical configuration detail.
|
|
02 Why can an exact catalog-number match matter when a drive has failed?
The catalog number captures a specific combination of voltage class, rating, frame and feature configuration. Using the exact number helps avoid introducing an incompatible variant into an established machine.
|
|
03 When is the embedded EtherNet/IP capability particularly valuable?
It is especially useful when the drive participates directly in an EtherNet/IP-based automation architecture, allowing drive-level operation to be incorporated into the machine's networked control environment.
|
|
04 What makes the 25B-D2P3N104 different from simply choosing another 1 Hp drive?
Horsepower alone does not define the replacement. This model combines its 1 Hp rating with a 380–480V three-phase class, Frame A construction, IP20/open enclosure, embedded EtherNet/IP and integrated safety features.
|
|
05 What is the practical risk of delaying replacement after a drive failure?
If the failed drive controls a production-critical motor, the affected machine may remain unavailable. For planned replacement, providing the exact part number together with the machine or system details helps shorten the matching process.
|
|
