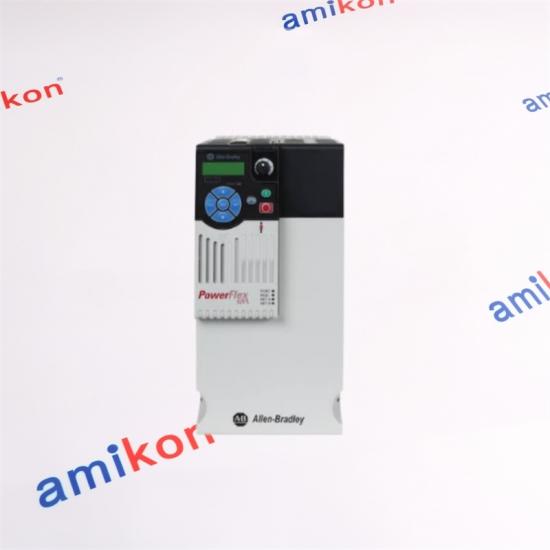

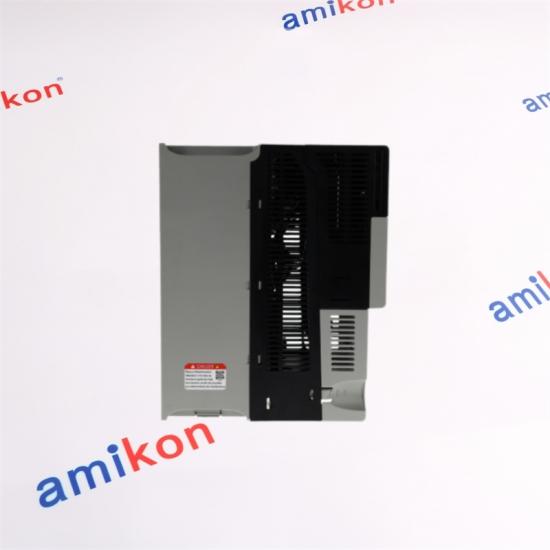

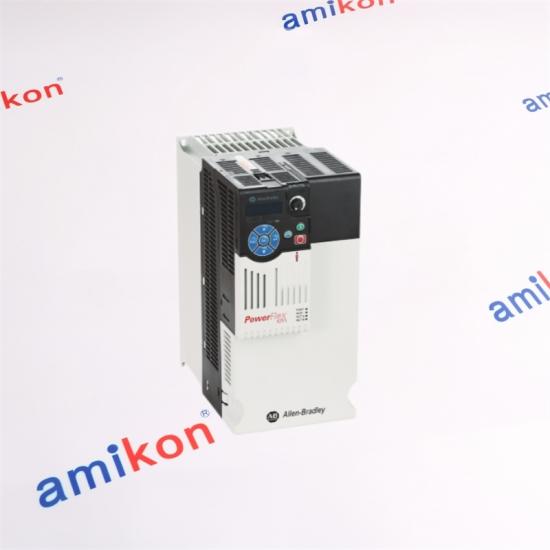

| ALLEN-BRADLEY |
| 25B-D024N104 |
PowerFlex 525
11 kW / 15 HP AC Drive |
|
|
Embedded EtherNet/IP • Integrated Safety
Frame D • IP20 NEMA / Open Type |
|
|
|
VOLTAGE CLASS
380–480V AC |
FREQUENCY
50–60 Hz |
FRAME
Frame D |
FILTER
No Filter |
|
| TECHNICAL PROFILE
Product Specifications
|
| Product Family |
PowerFlex 525 AC Drive |
| Input Voltage |
380–480V AC, 3 Phase |
| Output Current |
24 A |
| Motor Rating |
15 HP / 11 kW |
| Duty Rating |
15 HP / 11 kW Normal Duty; 15 HP / 11 kW Heavy Duty |
| Enclosure |
IP20 NEMA / Open Type |
| Communication |
Embedded EtherNet/IP |
| Safety |
Embedded Safety |
| Brake IGBT |
Included |
| User Interface |
Integral Keypad with Potentiometer and LED Display |
| EMC Filtering |
No Filter |
| Frequency Rating |
50–60 Hz |
|
|
| OPERATING ROLE |
| Where the Drive Fits |
| The 25B-D024N104 is a PowerFlex 525 AC drive intended for three-phase 380–480V applications. Its 24 A output class and 11 kW / 15 HP rating place it in motor-control applications where controlled speed and drive-based operation are required. |
|
| WHEN REPLACEMENT BECOMES URGENT |
| A Drive Fault Can Stop a Motor-Controlled Process |
| When a failed or unavailable drive prevents a motor from starting, running, or maintaining its commanded operation, the affected machine can remain unavailable until the drive is restored or replaced. For production equipment dependent on that motor, the practical risk is extended downtime and delayed restart. |
|
|
|
|
|
Frequently Asked Questions
|
| 01 |
What should be checked before using a 25B-D024N104 as a replacement drive?
Confirm the existing PowerFlex 525 application, input configuration, motor requirements, enclosure arrangement, and programmed drive settings before replacement. Matching the catalog number alone is not sufficient for a controlled changeover.
|
|
| 02 |
When does a 25B-D024N104 become a practical spare to keep on site?
It is particularly valuable where a PowerFlex 525 controls a production-critical motor and an unexpected drive fault could interrupt the process. Keeping the matching unit available can shorten recovery time when troubleshooting points to the drive itself.
|
|
| 03 |
How can this drive fit into an existing PowerFlex 525 installation without unnecessary system changes?
The replacement approach is normally centered on preserving the existing application architecture and restoring the drive function rather than redesigning the control system. Parameter configuration, motor data, I/O assignments, and network-related settings should be reviewed as part of commissioning.
|
|
| 04 |
What makes the 25B-D024N104 relevant when a running machine begins showing drive-related faults?
A drive-related fault can stop motor operation and, depending on the machine sequence, interrupt upstream or downstream production. For this reason, the correct replacement is often investigated when fault diagnosis indicates that the installed PowerFlex 525 cannot reliably return to service.
|
|
| 05 |
Which application details are most useful when confirming a 25B-D024N104 replacement?
The most useful details are the installed drive catalog number, quantity required, destination, required date, and the machine or system in which the drive operates. These details help establish whether the proposed replacement matches the intended maintenance requirement.
|
|
|
|
