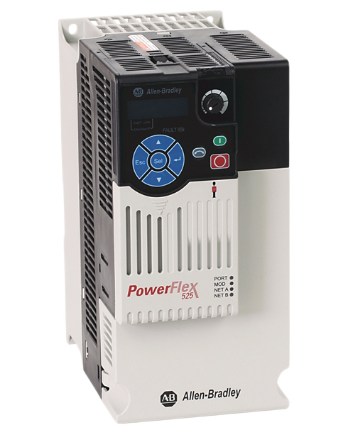

Allen Bradley 25B-D013N104 POWERFLEX 525 5.5 kW / 7.5 Hp AC Drive

Allen Bradley 25B-D013N104
Allen Bradley 25B-D013N104
Allen Bradley 25B-D013N104

Allen Bradley 25B-D013N104 POWERFLEX 525 5.5 kW / 7.5 Hp AC Drive

Calculate shipping
Quotation Request
ALLEN-BRADLEY
25B-D013N104

POWERFLEX 525
AC Drive
OUTPUT POWER
1 HP
0.75 kW
INPUT
3-PHASE
380–480 V AC
OUTPUT CURRENT
2.3 A
Normal-duty rating
CONTACT
Miya Zheng
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
+86 180 2077 6792
25B-D013N104 Overview Technical Application FAQ Contact
ALLEN-BRADLEY · POWERFLEX 525
25B-D013N104
5.5 kW / 7.5 Hp AC Drive
Input
380–480V AC
Output
13 A
Frame
Frame C
Voltage class
380–480V AC, 3 Phase		 Power rating
7.5 Hp / 5.5 kW
Enclosure
IP20 / NEMA Open Type		 EMC filtering
No Filter
25B-D013N104
DRIVE PROFILE
Embedded EtherNet/IP + Safety
Standard interface module · Integral keypad · Potentiometer · LED display
OUTPUT CURRENT
13 A
POWER
5.5 kW
MOTOR RATING
7.5 Hp
INPUT
3 Phase
TECHNICAL PROFILE
Core Drive Characteristics
Catalog Number 25B-D013N104
Drive Family PowerFlex 525
Voltage Class 380–480V AC
Input 3 Phase
Output Current 13 A
Normal Duty 7.5 Hp / 5.5 kW
Heavy Duty 7.5 Hp / 5.5 kW
Frame Frame C
Enclosure IP20 / NEMA Open Type
EMC Filter No Filter
CONTROL
Motor Control Options
Volts per Hertz, sensorless vector control, closed loop velocity vector control and permanent magnet motor control are supported within the PowerFlex 525 family.
CONNECTIVITY
EtherNet/IP Built In
The embedded EtherNet/IP interface supports integration with Logix environments and EtherNet/IP networks without requiring a separate basic communication module.
SAFETY
Safe Torque Off
The PowerFlex 525 family incorporates Safe Torque Off, allowing motor rotational torque to be removed while drive power remains available for faster restart after a safety demand.
APPLICATION CONTEXT
Where This Drive Fits
The PowerFlex 525 family is intended for variable-frequency motor applications such as conveyors, fans, pumps and mixers. For this 380–480V, 13 A configuration, the 5.5 kW / 7.5 Hp rating places it in the medium-duty range of compact machine drive applications.
COMMON MACHINE DUTY
Conveying & Material Movement
Variable-speed motor control where controlled acceleration and speed adjustment are required.
PROCESS DUTY
Fans, Pumps & Mixers
Suitable within the rated voltage, current and motor-duty envelope of the drive.
When replacement is urgent A failed drive can stop a motor-driven machine section and may interrupt material flow or process movement. Matching the voltage class, output current, power rating and frame before replacement helps avoid an unsuitable substitution that could prolong downtime.
REPLACEMENT SCENARIO
Why It Gets Searched During Downtime
A replacement search commonly begins when an installed PowerFlex 525 can no longer maintain normal motor operation, develops a drive fault, or becomes unavailable after an electrical or component failure. The urgency is higher when the affected drive controls a conveyor, pump, fan or mixer that is directly tied to production flow.
MATCHING POINTS
What Should Be Checked First
01   Voltage class — 380–480V AC, 3 phase
02   Output current — 13 A
03   Motor rating — 7.5 Hp / 5.5 kW
04   Frame C · IP20 · No Filter
PURCHASING FAQ
Five Questions Before Replacement
01
What rating combination should be confirmed before using 25B-D013N104 as a replacement?
The key match is the 380–480V AC three-phase class, 13 A output, and 7.5 Hp / 5.5 kW rating. The Frame C construction and IP20 / NEMA Open Type enclosure should also be consistent with the installation.
02
How does the no-filter configuration affect a replacement decision?
25B-D013N104 is the no-filter version. If the existing installation depends on a specific EMC filtering arrangement, the surrounding cabinet and motor-cable design should be checked before substituting a filtered variant.
03
When a machine uses EtherNet/IP control, what should be considered during drive replacement?
The drive has embedded EtherNet/IP, so networked applications should account for the drive's communication configuration and controller-side drive setup. A replacement should be commissioned with the intended network behavior verified before returning the machine to production.
04
Why can the motor rating alone be insufficient when selecting this replacement?
A correct replacement requires more than matching horsepower. Supply voltage, phase arrangement, output current, duty rating, frame size and enclosure configuration all affect whether the drive fits the existing application.
05
What makes a failed drive especially urgent on a production machine?
When the drive controls a production-critical motor, its failure can stop conveying, pumping, ventilation or mixing functions. The practical priority is therefore to secure a correctly rated replacement and minimize the time between drive failure and controlled restart.
QUOTE REQUEST
Send These Five Details
A precise request helps us match the intended drive more efficiently.
01 · Part Number 25B-D013N104
02 · Quantity Required quantity
03 · Destination Country / City
04 · Required Date Target delivery date
05 · Machine / System Application name
ORDER ARRANGEMENT
Delivery & Commercial Terms
Lead Time 3–5 days
Warranty 12 months
Packaging New
Delivery Way E-packing / FedEx / EMS / TNT / DHL / UPS
Payment T/T
DIRECT CONTACT
Talk to Miya
For availability, quotation and replacement coordination.
SALES MANAGER
Miya Zheng
EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792
AFTER-SALES ARRANGEMENT
7-Day Contact Window
Please contact us within 7 days after receipt if there is any issue with the order.
Return Condition
Returned items should remain in their original condition and include the specific reason for return.
Replacement Handling
Return or replacement will be arranged after the returned item is received. Return shipping costs are the buyer's responsibility.
OUR SERVICE APPROACH
More Capability Behind Every Order
We build our service around responsive communication, multilingual support and practical order coordination. Our team continues to develop a stronger global supply network so that customers can connect with the automation parts they need, including difficult-to-source components.
Team
MULTILINGUAL SUPPORT TEAM
Warehouse
ORDER & STOCK COORDINATION
Customer
GLOBAL CUSTOMER CONNECTION
Multilingual Support
Dedicated communication across international orders.		 Order Tracking
Structured coordination from quotation through delivery.		 Clear Commercial Terms
No additional handling or hidden charges.
RELATED MODELS
Recommended Models
Additional automation components available for project and maintenance requirements.
R22-WP-M 1MRK000508-ADr05 LM24-3-T Mix-8 S55372-C110
LQSE-2DALUNV-D 60340 532882-15 P7620C0100A 1P6AV7861-4TA00-1AA0
1550/PM 473004 PTHDB0032V3 5015 PM CO 2900030 LNS-W03 USI-0001
6GK1105-2AD10 AE2S-P01 Equal-i ESM-934 DD0PP FSC 10018/2 / U
TA430 700G29 3000 130B1803 37711 Plexus152112 25001 ISS.5 E40
WC8D8701 751322/2，220-000438-403 053945 UC600 / PN：X13651548010 130B1803
25B-D013N104
