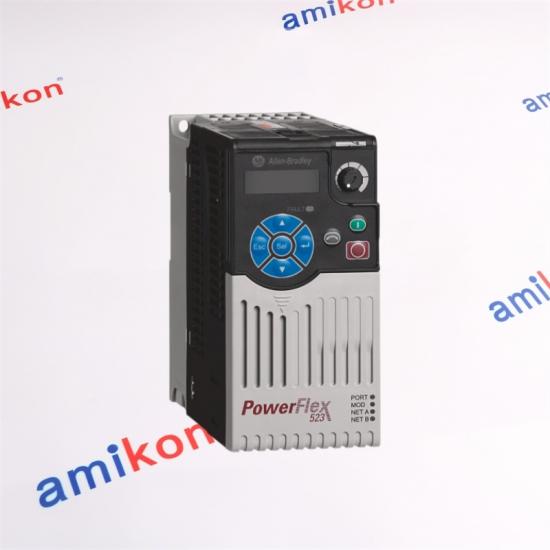

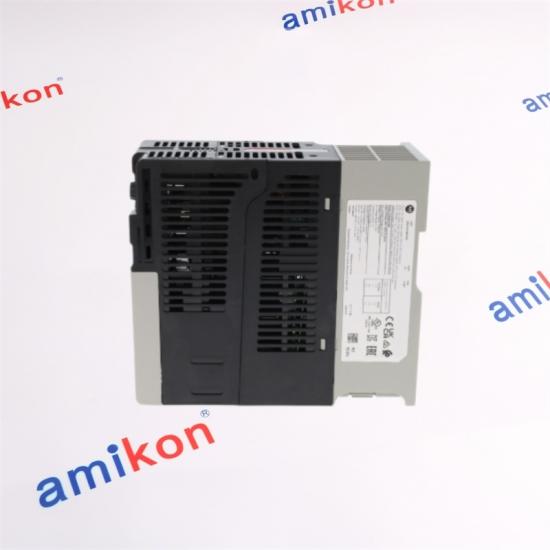

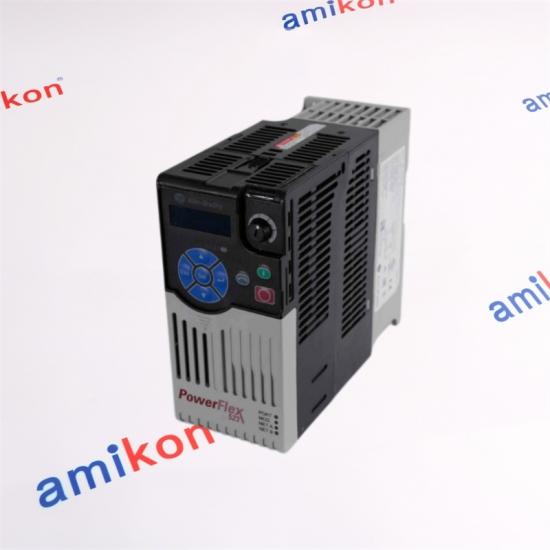

Allen Bradley 25A-D030N104 Adjustable Frequency AC Drive

Allen Bradley 25A-D030N104
Allen Bradley 25A-D030N104
Allen Bradley 25A-D030N104

Allen Bradley 25A-D030N104 Adjustable Frequency AC Drive

Calculate shipping
Quotation Request
ALLEN-BRADLEY
AC DRIVE / POWERFLEX
25A-D030N104

01
POWER
3.0 HP / 2.2 kW

02
OUTPUT
9.6 A

03
INPUT
380–480 V AC
Compact drive solution for
industrial motor control applications.
KEY DRIVE DATA
↗
RATED CURRENT
9.6 A

≈
POWER CLASS
3.0 HP

⌁
SUPPLY
380–480 V AC
FREQUENCY 50 / 60 Hz

MOTOR CONTROL AC Drive
DIRECT CONTACT
SALES MANAGER
Miya zheng

EMAIL
sales@amikon.cn
PHONE / WHATSAPP
86-18020776792
25A-D030N104
Industrial AC Drive
ALLEN-BRADLEY OVERVIEW RATINGS APPLICATION FAQ CONTACT

POWERFLEX 523 SERIES
25A-D030N104
Adjustable Frequency AC Drive
FRAME D   30 A   15 kW / 20 HP
A compact 380…480V three-phase drive for motor speed control where the established PowerFlex 523 platform is required.

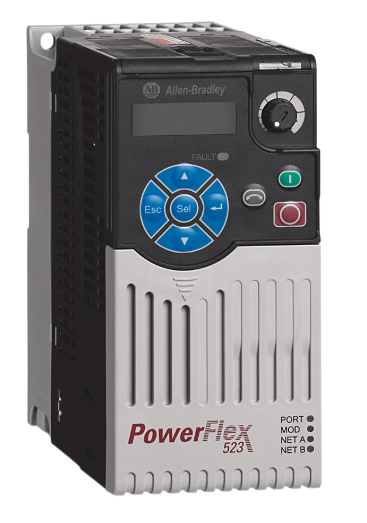

PRODUCT VIEW
Allen-Bradley 25A-D030N104
OUTPUT
30 A

INPUT
3 PH
◈
VOLTAGE CLASS
380…480V AC
◌
MOTOR DUTY
20 HP / 15 kW ND
△
ENCLOSURE
IP20 / OPEN TYPE
CORE DRIVE PROFILE
25A-D030N104 at a glance
Product family PowerFlex 523
Input 380…480V AC, 3-phase
Output current 30 A
Output 0…460V, 3-phase
Normal-duty rating 20 HP / 15 kW
Heavy-duty rating 15 HP / 11 kW
Frame Frame D
EMC filter No filter
WHERE IT FITS
Built around practical motor control
The 25A-D030N104 belongs to the PowerFlex 523 family and is intended for three-phase motor-drive applications in the 380…480V class. Its 30 A output class places it in the larger Frame D range of the family.
↗
Motor speed control
Variable-frequency operation for compatible three-phase motors.
◎
Machine retrofit
Useful when an existing PowerFlex 523 installation requires a matching drive.
◇
Production equipment
Suitable for machinery requiring controlled motor acceleration and speed.
+
Replacement planning
A direct catalog-number match can simplify maintenance purchasing.


WHEN A REPLACEMENT MATTERS
Keep the drive chain moving
01 Drive fault
A failed drive can stop the motor-controlled section of a machine.
02 Unplanned downtime
For production assets, a missing replacement can extend maintenance time.
03 Exact-match purchasing
The complete catalog number helps avoid selecting the wrong voltage, frame or duty class.



SAME-FAMILY POSITION
Choosing the right PowerFlex 523 size
The surrounding catalog numbers help distinguish smaller and larger power ranges within the same 380…480V class.
MODEL NORMAL DUTY OUTPUT FRAME
25A-D024N104 15 HP / 11 kW 24 A D
25A-D030N104 20 HP / 15 kW 30 A D
25A-D037N104 25 HP / 18.5 kW 37 A E
PURCHASING QUESTIONS
Why do customers look for 25A-D030N104?
01
Why is the exact 25A-D030N104 catalog number important when replacing a failed drive?
Because the catalog number fixes the voltage class, output-current class, frame size and product family. Matching the complete number is safer than choosing only by horsepower.
02
When would 25A-D030N104 be a better match than 25A-D024N104?
When the existing application calls for the 30 A / 20 HP normal-duty class. The D024 version is a 24 A / 15 HP normal-duty unit, so the motor and drive ratings should be checked before substitution.
03
Is 25A-D030N104 worth keeping as a spare for an existing PowerFlex 523 installation?
It can be a practical maintenance spare when the installed drive is the same catalog number. Holding an exact match can reduce the risk of extended downtime after a drive failure.
04
What should be checked before ordering a replacement for a production machine?
Confirm the existing catalog number, three-phase 380…480V class, motor duty requirement and installation arrangement. If the machine has been modified, verify the present drive selection rather than relying on an old purchasing description.
05
Why might a maintenance team search for this model instead of moving immediately to another drive family?
A same-family replacement can preserve the established PowerFlex 523 platform and reduce unnecessary changes to the machine's drive arrangement. For a running production asset, maintaining the existing architecture may be preferable when compatibility and availability are the priority.
MOORE AUTOMATION
More than a part. A smoother supply process.
We combine responsive communication, multilingual support and practical order coordination to make industrial automation purchasing easier across borders.
Automation team
MULTILINGUAL SUPPORT
Automation warehouse
ORDER COORDINATION
Customer cooperation
GLOBAL CUSTOMER SERVICE
PURCHASE REQUEST
Let's confirm your exact requirement
For a quotation, please provide the following details:
Part Number
Exact catalog number
Quantity
Required quantity
Destination
Shipping destination
Required Date
Target arrival date
Machine / System
Application or installed equipment
DIRECT CONTACT
Miya Zheng
Sales Manager
PHONE / WHATSAPP
86-18020776792
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
PAYMENT
T/T
