25A-D024N104
11 kW · 15 HP · 24 A

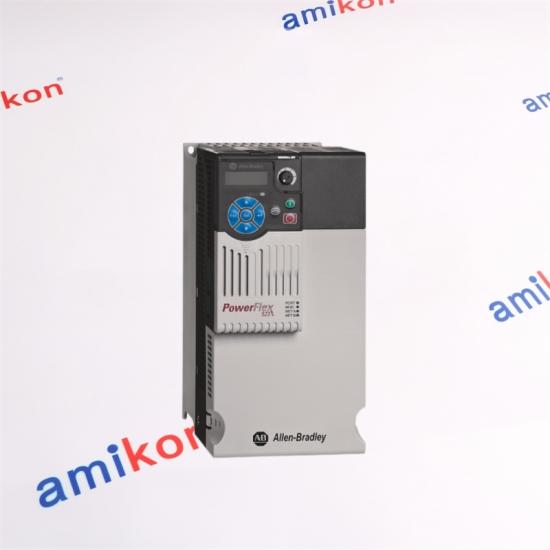

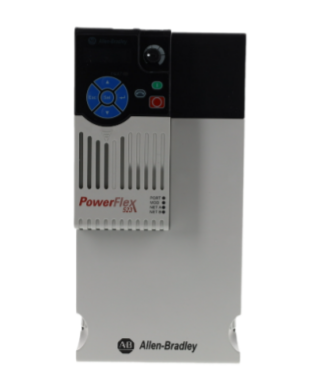

PowerFlex 523 adjustable frequency AC drive for three-phase motor applications, configured for 380...480V AC input, Frame D construction and IP20 NEMA/Open Type installation.
|
DRIVE FAMILY
PowerFlex 523
|
FRAME
D
|
ENCLOSURE
IP20
|
|
|
PRODUCT VIEW
 |
15 HP / 11 kW
|
|
|
INPUT
380–480 V AC
3 Phase
|
OUTPUT
24 A
3 Phase motor output
|
POWER
11 kW / 15 HP
Normal & Heavy Duty
|
ENCLOSURE
IP20
NEMA / Open Type
|
|
|
01 / CORE CONFIGURATION
Built around a
specific drive rating.
The 25A-D024N104 sits in the PowerFlex 523 range at the 15 HP / 11 kW level. Its catalog configuration combines a 380...480V AC three-phase input class, 24 A output rating, Frame D construction and an IP20 NEMA/Open Type enclosure.
|
|
CATALOG NUMBER
25A-D024N104
|
|
|
VOLTAGE CLASS
380...480V AC
|
|
|
|
|
POWER RATING
11 kW / 15 HP
|
|
|
|
|
|
|
|
02 / OPERATING CONTEXT
When the drive
becomes critical.
PowerFlex 523 drives are positioned for standalone machine applications and motor speed-control duties. For a replacement project, the important question is not simply whether the horsepower matches, but whether the electrical class, output current, frame and installed configuration correspond to the existing drive.
|
|
Used where an adjustable-frequency drive regulates the speed and operation of a three-phase motor in a machine or production system.
|
|
|
A failed drive, repeated drive fault or unavailable installed unit can lead maintenance teams to search by the exact catalog number.
|
|
| 03 |
Production Interruption |
When the drive is part of a machine's motor-control chain, an unexpected failure can stop the associated motor and interrupt the machine cycle.
|
|
| 04 |
Match Before Replacement |
Confirm the installed catalog number and electrical requirements before substituting another PowerFlex 520-Series drive.
|
|
|
|
|
03 / FAMILY POSITION
A clear place
within the range.
The PowerFlex 523 range includes several power levels and frame sizes. Nearby ratings should not be treated as automatic substitutes: the motor rating, current demand and complete catalog configuration all matter.
|
|
LOWER RATING
25A-D017N104
17 A · 7.5 kW / 10 HP
|
|
|
TARGET
25A-D024N104
24 A · 11 kW / 15 HP
|
|
|
HIGHER RATING
25A-D030N104
30 A · 15 kW / 20 HP ND
|
|
For a replacement order, use the exact catalog number whenever the installed system requires the existing configuration. A nearby rating may belong to the same family without being an equivalent replacement.
|
|
|
