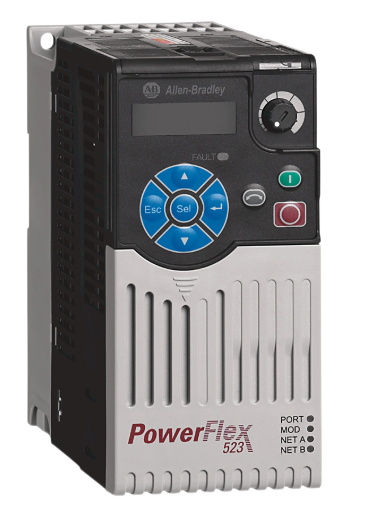

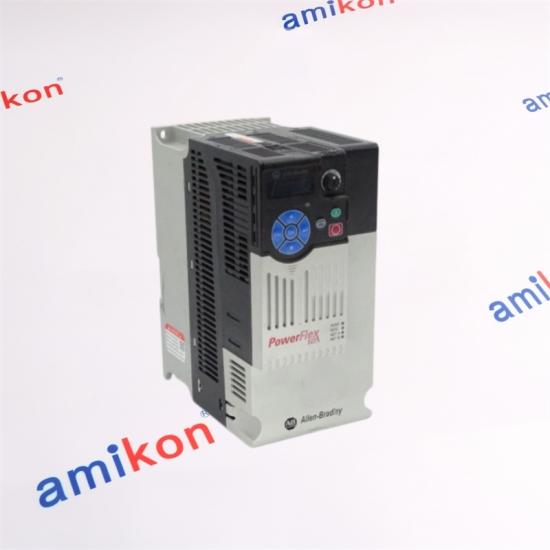

ALLEN-BRADLEY / POWERFLEX 523
25A-D013N104
5.5 kW / 7.5 HP AC Drive
380…480V AC • 3-Phase • 13A • Frame C • IP20 / NEMA Open Type
PF523 / 380–480 VAC / MOTOR CONTROL
|
 PRODUCT DISPLAY AREA
|
|
380–480
VAC INPUT
|
3-PH
POWER SYSTEM
|
0–500
Hz PROGRAMMABLE
|
97.5%
TYPICAL EFFICIENCY
|
|
01 / TECHNICAL CORE
Built around a clear electrical match
|
|
CONTROL & FORM FACTOR
|
|
02 / CONTROL CAPABILITY
Practical control for machine-level applications
|
|
01
V/Hz Control
Suitable for general-purpose motor control.
|
02
Sensorless Vector
Higher control capability without encoder feedback.
|
03
Integrated PID
One PID loop supports process-oriented control tasks.
|
04
Flexible I/O
Five digital inputs and one isolated analog input.
|
|
03 / WHEN THIS PART MATTERS
A drive selected around the actual machine load
The 25A-D013N104 is positioned for three-phase 380…480V AC motor applications requiring a 13A output rating and 5.5 kW / 7.5 HP class. Its PowerFlex 523 platform is intended for standalone machines and straightforward system integration.
|
FRAME C / POWER RANGE
7.5 HP
5.5 kW • 13A
PHYSICAL SIZE
109 × 220 × 184 mm
Frame C • approximately 2.3 kg
|
|
04 / SAME-FAMILY SELECTION
Choosing the nearby PowerFlex 523 rating
Nearby ratings belong to the same 380…480V three-phase family, but their current and power capacity are different.
|
|
LOWER RATING
25A-D010N104
5 HP • 4.0 kW • 10.5A
|
CURRENT MODEL
25A-D013N104
7.5 HP • 5.5 kW • 13A
|
HIGHER RATING
25A-D017N104
10 HP • 7.5 kW • 17A
|
|
05 / BUYING QUESTIONS
Why buyers choose the exact 25A-D013N104
|
|
Q1. Why buy the exact 25A-D013N104 instead of simply choosing a higher-rated drive?
Because a replacement should match the machine's electrical and load requirements rather than simply provide a larger rating. The 25A-D013N104 is the 7.5 HP / 5.5 kW, 13A position within this 380…480V three-phase PowerFlex 523 range.
|
Q2. Is 25A-D010N104 a practical substitute when the original drive is unavailable?
It is a lower-current rating, so it should not be treated as an automatic substitute. The motor load and application duty must remain within its rating. For an original 25A-D013N104 installation, the exact part is the safer starting point for replacement matching.
|
|
Q3. When would 25A-D017N104 make more sense than the D013 rating?
The D017 version is a higher 17A / 10 HP / 7.5 kW rating in the same 380…480V three-phase family. It may suit a different motor load, but the larger rating does not by itself make it a drop-in replacement. The complete motor and machine requirements should be checked first.
|
Q4. What makes this model worth keeping as an exact spare for an operating machine?
The value is in reducing uncertainty during a drive failure. Keeping the same voltage class, power range, frame size and control family can simplify the replacement decision and reduce the risk of selecting a physically or electrically mismatched rating.
|
|
Q5. What should be checked before ordering to avoid receiving the wrong drive?
Confirm the complete part number, quantity, destination, required date and machine/system. For technical matching, also compare the installed drive's voltage class, phase, output current, power rating and frame arrangement.
|
Need the exact rating?
Send the complete part number and your machine details. This makes it easier to distinguish the D013 rating from nearby PowerFlex 523 versions.
25A-D013N104
|
|
06 / SERVICE
More support around every automation part.
Our service is built around practical communication, multilingual support and a clear order-following process. We work to make industrial parts purchasing easier across different regions and time zones.
MULTILINGUAL SUPPORT
A dedicated team for international customer communication.
|
|
|
07 / ORDER DETAILS
Prepare the right five details
|
|
3–5
DELIVERY DAYS
|
12
MONTH WARRANTY
|
NEW
PACKAGING
|
T/T
PAYMENT TERM
|
|
Recommended models
|
||||||||||||||||||||||||||||
|
|
READY FOR A QUOTATION?
Let's match the right drive.
Send the part number, quantity, destination, required date and machine/system details for a focused quotation.
|
|
DELIVERY
3–5 days
E-packing / FedEx / EMS / TNT / DHL / UPS
|
RETURN & REPLACEMENT
Please contact us within 7 days after receiving the item if any issue occurs. Returned items should remain in their original condition and include the reason for return. After receipt, a return or replacement can be arranged where applicable. Return shipping expenses are the buyer's responsibility.
|
|
Keep your automation moving.
INDUSTRIAL AUTOMATION PARTS SUPPORT
25A-D013N104 • PowerFlex 523 • 5.5 kW • 7.5 HP • 13A
|
