AC DRIVE · POWER CONTROL
25A-D010N104

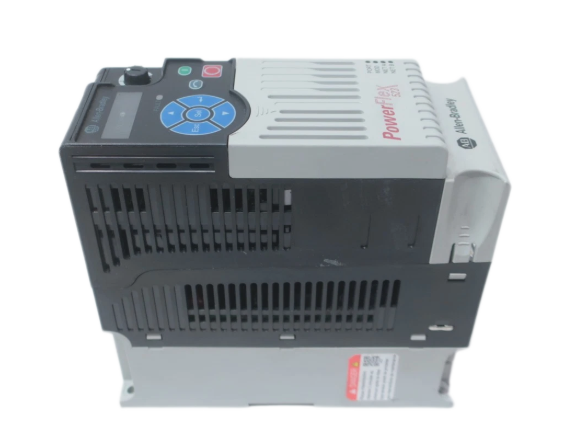

PowerFlex 523 AC Drive
380–480V AC · Three Phase · 10.5 A · 5 HP / 4 kW · Frame B · IP20
|
|
|
|
INPUT CLASS
380–480V
AC · 3 Phase
|
|
|
RATED OUTPUT
10.5 A
Motor current rating
|
|
|
POWER
5 HP
4 kW · ND / HD
|
|
|
MECHANICAL
Frame B
IP20 · Open Type
|
|
|
|
WHY THIS DRIVE MATTERS
A practical choice for
5 HP machine-duty control.
The 25A-D010N104 sits in the 380–480V, three-phase PowerFlex 523 range at the 5 HP / 4 kW rating. Its Frame B configuration makes it a useful fit when a replacement must stay within the same drive family and power class.
|
| 380–480V three-phase class |
| 5 HP / 4 kW duty class |
| Frame B mechanical class |
| No integral filter configuration |
|
|
|
TECHNICAL PROFILE
25A-D010N104 at a glance
| Drive Family |
PowerFlex 523 AC Drive |
| Catalog Number |
25A-D010N104 |
| Input Voltage |
380–480V AC, Three Phase |
| Output Current |
10.5 A |
| Power Rating |
5 HP / 4 kW |
| Duty Rating |
5 HP / 4 kW Normal Duty and Heavy Duty |
| Frame |
Frame B |
| Enclosure |
IP20 / NEMA Open Type |
| Filter Configuration |
No Filter |
|
|
SAME-FAMILY SELECTION
When the motor rating changes,
the PowerFlex 523 family scales with it.
The 25A-D010N104 belongs to the 380–480V, three-phase, no-filter group. Nearby ratings in the same family include 25A-D006N104, 25A-D013N104 and 25A-D017N104. These are different drive ratings rather than direct substitutes, so the motor and electrical requirements should be checked before selecting another catalog number.
|
|
25A-D006N104 · 3 HP / 2.2 kW
|
|
25A-D013N104 · 7.5 HP / 5.5 kW
|
|
25A-D017N104 · 10 HP / 7.5 kW
|
|
|
|
MACHINE-DUTY CONTEXT
A replacement drive
can be a downtime decision.
PowerFlex 523 drives are positioned for standalone machines and compact machine control. In a running installation, a drive fault can stop the motor-driven section of the machine and interrupt the production sequence that depends on it.
|
|
01 · DRIVE TRIP
Unexpected drive trips can leave the motor stationary and halt the machine sequence.
|
|
02 · FAILED DRIVE REPLACEMENT
When the existing unit is damaged, matching the voltage class, current, horsepower and frame helps avoid an unsuitable replacement.
|
|
03 · PRODUCTION INTERRUPTION
For a machine dependent on one drive, unplanned replacement delays can extend the period before normal operation resumes.
|
|
|
|
DESIGNED FOR PRACTICAL MACHINE INTEGRATION
Useful features around the drive
|
01
Modular approach
The PowerFlex 523 family uses a modular design intended for practical installation and configuration.
|
|
|
02
USB programming
USB connectivity supports drive programming and configuration workflows within the PowerFlex 523 platform.
|
|
|
03
Flexible mounting
The series supports flexible mounting options to suit compact machine-control layouts.
|
|
|
|
PURCHASING QUESTIONS
Why choose 25A-D010N104?
|
01
Why is this model worth keeping as a replacement?
It belongs to the PowerFlex 523 380–480V three-phase family and carries the 5 HP / 4 kW rating. That makes it particularly relevant when the existing installation already uses this voltage and power class and the replacement needs to remain within the same family.
|
|
|
02
What should be checked before ordering a replacement?
Confirm the existing drive's catalog number, input voltage, phase arrangement, motor rating, current requirement, frame and filter configuration. For this model, the combination is 380–480V, three phase, 10.5 A, 5 HP / 4 kW, Frame B, without a filter.
|
|
|
03
Can a nearby PowerFlex 523 rating simply replace it?
Not automatically. Models such as 25A-D006N104, 25A-D013N104 and 25A-D017N104 sit in nearby power positions, but their motor ratings and output-current capabilities differ. The replacement should match the actual motor and system requirements.
|
|
|
04
When is buying the exact part number the safer decision?
When the machine is already built around a 25A-D010N104 and the replacement must retain the same voltage class, power rating, frame and no-filter configuration. Matching the existing part number reduces uncertainty during maintenance planning.
|
|
|
05
Why purchase a spare before the original drive fails?
For a machine that depends on one drive, having the matching unit available can reduce the waiting period after an unexpected drive failure. It is especially useful where a stopped motor immediately interrupts the production sequence.
|
|
|
06
What makes the 5 HP position important in a replacement decision?
The 5 HP / 4 kW position distinguishes this unit from neighboring PowerFlex 523 ratings. Choosing by physical appearance alone is not enough; the motor duty and electrical rating must also agree with the replacement.
|
|
|
|
MOORE AUTOMATION
Service built around the parts you need.
A multilingual team, organized order handling and practical communication help keep every purchase clear from the first inquiry to delivery.
|
|
MULTILINGUAL SUPPORT TEAM
|
WAREHOUSE & ORDER HANDLING
|
CUSTOMER COOPERATION
|
|
|
More than a
parts transaction.
|
|
MULTILINGUAL SUPPORT
Communication designed for customers across different markets.
|
|
ORDER TRACKING
Clear handling from quotation details through shipment coordination.
|
|
NO HIDDEN HANDLING CHARGES
Straightforward commercial communication without unexpected handling additions.
|
|
|
|
ORDER DETAILS
| Delivery |
3–5 days |
| Warranty |
12 months |
| Condition |
Brand New |
| Delivery Way |
E-packing / FedEx / EMS / TNT / DHL / UPS |
| Payment Term |
T/T |
|
QUOTE CHECKPOINT
Help us match the right unit.
For a precise quotation, please provide:
| 01 Part Number |
| 02 Quantity |
| 03 Destination |
| 04 Required Date |
| 05 Machine / System |
|
|
|
AFTER-DELIVERY SUPPORT
Return &
Replacement
|
| 01. Please contact us within 7 days after receiving the item if any issue occurs. |
| 02. Returned items should remain in their original condition and include the specific reason for return. After the returned item is received, a return or replacement can be arranged according to the case. |
| 03. Shipping costs associated with the return are the responsibility of the buyer. |
|
|
|
