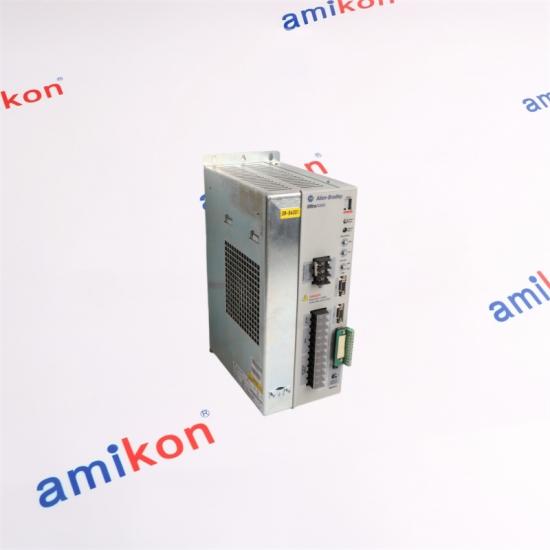

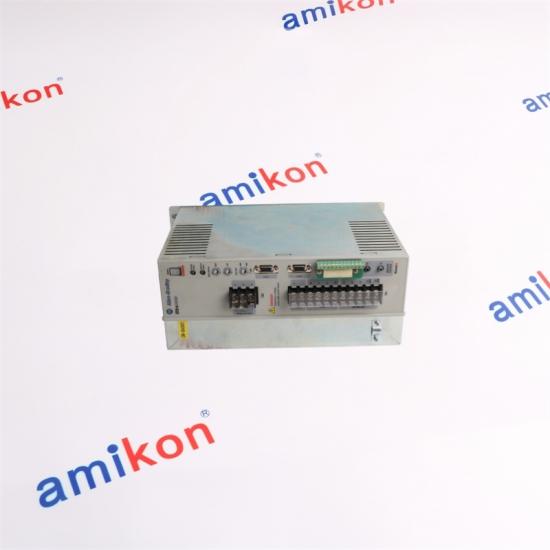

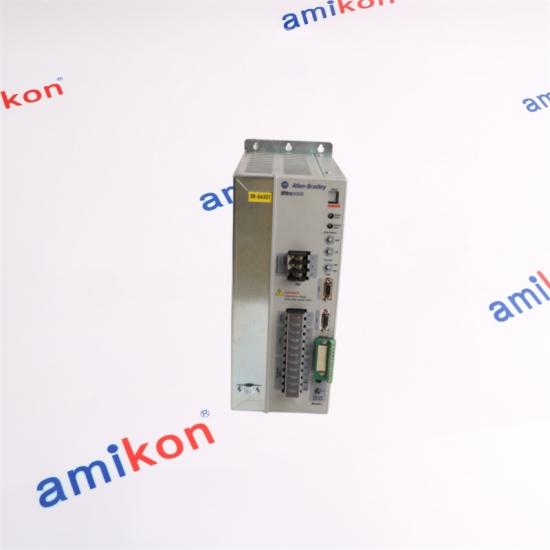

Allen Bradley 2098-DSD-HV030 High-Voltage Ultra3000 Servo Drive

Allen Bradley 2098-DSD-HV030
Allen Bradley 2098-DSD-HV030
Allen Bradley 2098-DSD-HV030

Allen Bradley 2098-DSD-HV030 High-Voltage Ultra3000 Servo Drive

Calculate shipping
Quotation Request
ALLEN-BRADLEY / ULTRA3000

2098-DSD-
HV030
Ultra 3000
High Voltage Servo Drive
◆ 460 V-class drive architecture
◇ 3-phase AC input
MOTION CONTROL / SERVO POWER
High-Voltage Servo Drive
The 2098-DSD-HV030 is an Ultra 3000 high-voltage digital servo drive designed for three-phase AC applications. The HV030 rating belongs to the 460V Ultra3000 drive family and supports AC input across the 230–480V range.
INPUT RANGE
230–480 V AC
Three-phase
FREQUENCY
47–63 Hz
AC input
CURRENT
5.0 A RMS
continuous
AMIKON INDUSTRIAL PARTS
Need a Quote?
New packaging · 3–5 days delivery
12-month warranty · T/T
✉   sales@amikon.cn ☎   86-18020776792
Sales Manager
Miya zheng





ALLEN-BRADLEY / ULTRA3000 DIGITAL SERVO DRIVE
2098-DSD-HV030

High-Voltage Ultra3000 Servo Drive

The 2098-DSD-HV030 is a 400V-class Ultra3000 digital servo drive designed for three-phase AC systems and servo motion applications. Its 230…480V rms input range, 5.0 A continuous output capability and 3.0 kW continuous power class make it suitable for demanding machine-axis control where established Ultra3000 architecture remains in service.

INPUT
230…480 V rms
Three-phase
CONTINUOUS OUTPUT
5.0 A rms
7.0 A 0-pk
POWER CLASS
3.0 kW
480 V input class
Lifecycle note: The 2098-DSD-HV030 is discontinued. For replacement planning, verify motor, voltage, feedback, control interface and application requirements before selecting a successor.
RFQ / STOCK CHECK
Talk to Amikon
Send the exact catalog number and application details for a fast quotation.
EMAIL · sales@amikon.cn PHONE / WHATSAPP · 86-18020776792
Sales manager: Miya zheng
Delivery: 3–5 days
Warranty: 12 months
Packaging: Brand New
Payment: T/T
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
For quotation, please provide: Part Number · Quantity · Destination · Required Date · Machine/System
01 / TECHNICAL PROFILE
Built for the
Ultra3000 motion platform


The HV030 belongs to the high-voltage Ultra3000 servo-drive family. The family uses the same 400V-class architecture across multiple power ratings, allowing engineering teams to distinguish drive size by current and power requirements rather than changing the basic product family.
Parameter 2098-DSD-HV030 Engineering relevance
AC input voltage 230…480 V rms, 3-phase 400V-class systems
AC input frequency 47…63 Hz Industrial AC supply range
460 V nominal input current 4 A rms Nominal main AC input
Continuous output 5.0 A rms / 7.0 A 0-pk Continuous servo operation
Peak output 9.9 A rms / 14 A 0-pk Short-duration acceleration / dynamic demand
Bus capacitance 470 µF DC bus energy storage
Internal shunt resistance 120 Ω Regenerative energy handling
Continuous power output 1.5 kW @ 230 V / 3.0 kW @ 480 V Motor sizing reference
DESIGN CHARACTERISTICS
Why the HV030 matters in an existing motion system
400V-class architecture
Designed for three-phase 230…480 V rms supply applications within the Ultra3000 high-voltage family.
Defined current capability
5.0 A rms continuous output and 9.9 A rms peak output provide a clear basis for motor and load matching.
Regenerative-energy handling
The drive incorporates an internal shunt rated at 120 Ω, with defined DC-bus thresholds for shunt operation and overvoltage protection.

SYSTEM FIT
Selection should start with the motor and application

When evaluating a replacement or spare drive, confirm the motor voltage, continuous current, peak current, feedback arrangement, command interface, braking requirements and system architecture rather than matching the catalog number alone.

Motor compatibility Verify voltage/current
Control architecture Verify interface
Regeneration Check braking demand
ULTRA3000 FAMILY POSITION
2098-DSD-HVxxx Series

The 2098-DSD-HV030 sits within the Ultra3000 400V-class family. The family includes HV030, HV050, HV100, HV150 and HV220 versions, with progressively higher current and power capabilities. The HV030 is the smallest member of this high-voltage group and is associated with the 3 kW class.

Family model Continuous output Continuous power @ 480 V Selection role
2098-DSD-HV030 5.0 A rms 3.0 kW Compact / lower-power HV axis
2098-DSD-HV050 7.8 A rms 5.0 kW Higher current margin
2098-DSD-HV100 16.3 A rms 10 kW Mid-range high-voltage axis
2098-DSD-HV150 24.0 A rms 15 kW High-power motion
2098-DSD-HV220 33.2 A rms 22 kW Highest family rating
Replacement planning: the HV030 should not be substituted only because another drive has a similar power rating. Interface, motor, feedback, network and control requirements must be checked as a complete system.
FIELD APPLICATION
Where the HV030 becomes a practical spare

The strongest case for this drive is an installed Ultra3000 motion system where maintaining the existing architecture is more practical than redesigning the complete axis immediately.
Unexpected drive failure
A failed installed unit can create extended machine downtime. A verified matching spare can reduce the time required to restore the original axis architecture.

Legacy equipment support
Existing Ultra3000 installations may require replacement drives while a longer-term modernization strategy is being evaluated.

Overcurrent / output concerns
Before replacement, verify motor loading, cable condition, feedback wiring, acceleration demand and regenerative behavior instead of treating the drive alone as the root cause.

Bus overvoltage events
Regenerative loads should be reviewed against the drive's shunt and DC-bus limits. For the HV030, the documented 480 V input bus-overvoltage threshold is 810 V DC.
READY TO CHECK AVAILABILITY?
Send the exact part number to Amikon
EMAIL · sales@amikon.cn WHATSAPP · 86-18020776792
Sales manager: Miya zheng · Delivery 3–5 days · Warranty 12 months · Brand New packaging · T/T
PURCHASE DECISION / FAQ
Five questions worth checking before purchase
Can 2098-DSD-HV030 still make sense as a spare for an existing Ultra3000 machine?
Yes, when the installed system was designed around the Ultra3000 architecture and the replacement has been verified against the motor, feedback, command interface and power requirements. Because the product is discontinued, lifecycle planning should also be considered.
What makes 2098-DSD-HV030 different from the higher-rated HV050 or HV100?
The HV030 is the lower-power member of the 400V-class HV family. It is rated at 5.0 A rms continuous output and 3.0 kW continuous power at 480 V, while the HV050 and HV100 provide 7.8 A / 5.0 kW and 16.3 A / 10 kW respectively.
How should 2098-DSD-HV030 be checked when a machine repeatedly reports DC-bus overvoltage?
Review regeneration, deceleration profiles, motor/load inertia and shunt requirements before replacing the drive. For the HV030, the documented bus-overvoltage threshold at 480 V input is 810 V DC, so the application should be evaluated against the drive's energy-handling capability.
Why is 2098-DSD-HV030 a better replacement candidate than simply choosing another 3 kW servo drive?
Power rating alone does not establish compatibility. The HV030 belongs to the Ultra3000 architecture, so the complete application should be checked for voltage class, feedback, control method, cabling, braking and machine integration before considering a different platform.
What should a buyer confirm before ordering 2098-DSD-HV030 for an urgent maintenance replacement?
Confirm the complete catalog number, installed motor, system voltage, required quantity, destination, required date and machine/system. For a legacy installation, sharing the existing drive identification and application details helps avoid selecting a visually similar but electrically or functionally unsuitable unit.
SERVICE ASSURANCE
Order Protection
Please contact us within 7 days after receiving the items if you have any question. Returned items should remain in their original condition and include the specific reason for return. After the returned item is received, we will arrange a return or replacement according to the case. Shipping costs incurred by the buyer are the buyer's responsibility.
Amikon team
AMIKON INDUSTRIAL AUTOMATION
Parts that keep production moving.


Amikon focuses on sourcing industrial automation components that help manufacturers restore equipment, reduce maintenance delays and extend the practical service life of established control systems.

Our network covers 100+ automation manufacturers, supporting customers who need established, difficult-to-source and operational spare parts.

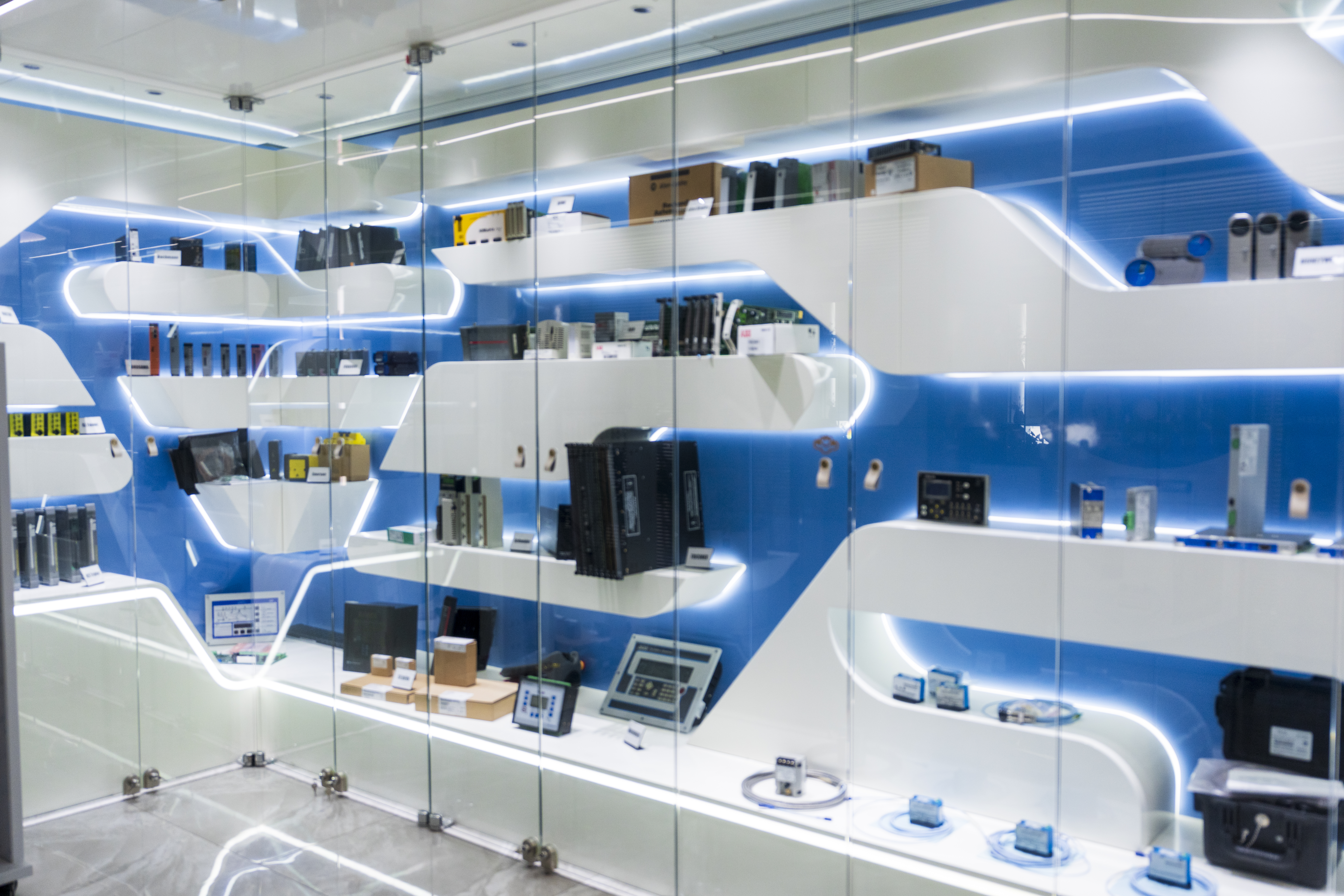

 Amikon warehouse Amikon shipping operation
