2093-AMP1
KINETIX 2000 AXIS MODULE
|
Overview Specifications Series Applications FAQ Contact |
|
ALLEN-BRADLEY / KINETIX 2000 / MULTI-AXIS MOTION
2093-AMP1
Kinetix 2000 0.3 kW Axis Module

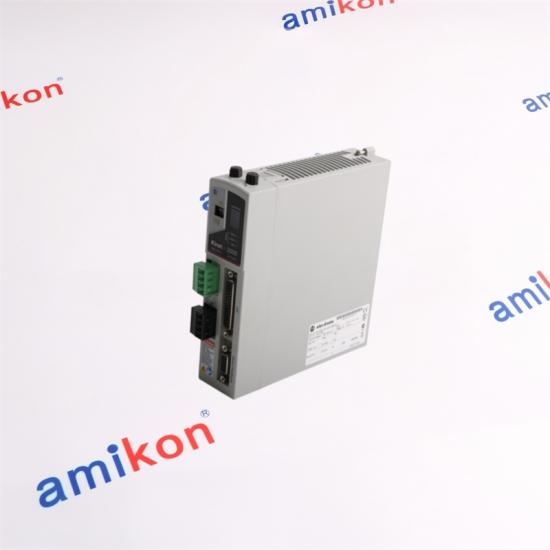

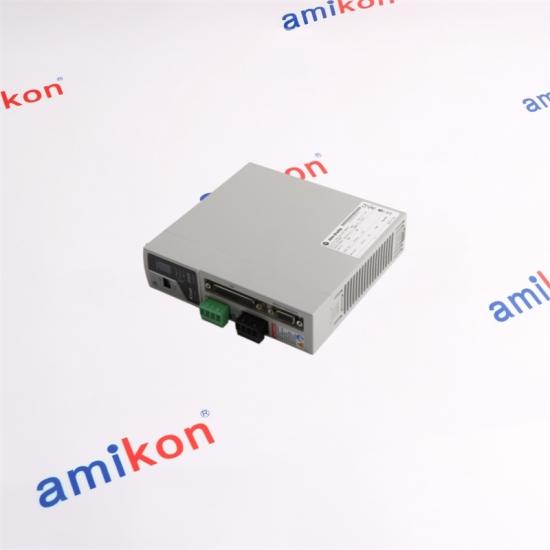

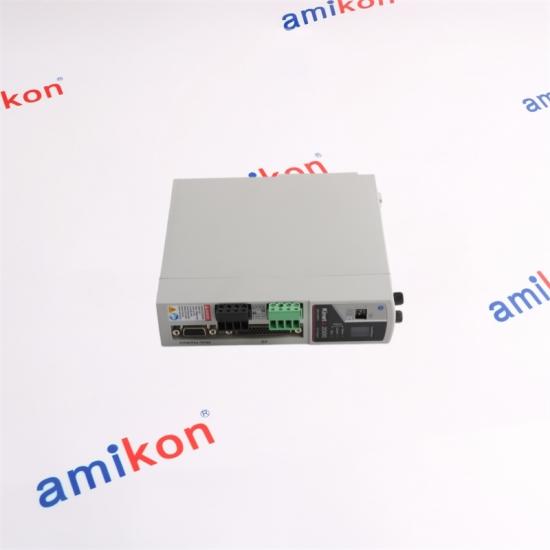

The Allen-Bradley 2093-AMP1 is a single-wide Kinetix 2000 Axis Module designed to provide 0.3 kW of inverter output within a multi-axis servo drive system. It operates from the Kinetix 2000 DC bus and works as an axis-level power stage mounted on the Bulletin 2093 power rail.
|
PRODUCT PROFILE
2093-AMP1
Single-Wide Axis Module
Kinetix 2000 Multi-Axis Servo Drive System
200 V class architecture
325 V DC nominal inverter input 0.3 kW continuous output SERCOS-based motion architecture |
|
PRODUCT ROLE
An axis-level power stage inside the Kinetix 2000 architecture.
|
Single-Wide Format
The 2093-AMP1 uses a single-wide slot on the Bulletin 2093 power rail, helping create compact multi-axis assemblies. |
0.3 kW Axis Rating
Its 0.3 kW continuous output places the 2093-AMP1 at the lower-power end of the Kinetix 2000 axis-module range. |
Shared DC-Bus Architecture
The axis module receives its DC bus power through the Kinetix 2000 power-rail system rather than acting as a standalone AC-input drive. |
|
01 / TECHNICAL PROFILE
Electrical &
Mechanical Data The 2093-AMP1 is the 0.3 kW single-wide axis module within the 200 V class Kinetix 2000 family. Installation footprint
Approx. 225 mm high × 40 mm wide × 192 mm deep when mounted to the power rail.
|
|
|
0.3
kW Output
Compact axis power rating.
|
3.0
A RMS Peak
Maximum peak current.
|
8
kHz PWM
Inverter switching frequency.
|
98%
Efficiency
Specified inverter efficiency.
|
1.6"
Module Width
Single-wide rail position.
|
|
02 / SAME FAMILY
Kinetix 2000
Axis Modules The 2093-AMP1 belongs to the 200 V class axis-module group. Selection within the family is primarily determined by required motor power, current and physical module width. System architecture
A Kinetix 2000 system uses an Integrated Axis Module, Axis Modules and a Bulletin 2093 power rail. Additional system components can include a shunt module, slot filler modules, line interface equipment and associated motor/feedback accessories. |
Selection principle
If the existing machine uses a 2093-AMP1, moving to a larger model is not automatically an equivalent replacement. Motor compatibility, current demand, feedback arrangement, power rail capacity and the complete motion configuration should be evaluated together.
|
|
03 / APPLICATION LOGIC
Built around the axis, not the cabinet.
The 2093-AMP1 is most relevant to existing Kinetix 2000 multi-axis installations where a compact 0.3 kW axis module is required within the established power-rail architecture. |
Compact Servo Axes
Suitable for lower-power servo axes where the existing system requires the 0.3 kW Kinetix 2000 axis rating. Multi-Axis Machines
Its single-wide construction allows several compatible axis modules to be arranged along a common Bulletin 2093 power rail. |
Legacy Equipment
Particularly relevant when maintaining an installed Kinetix 2000 system where the original drive architecture must be preserved. Replacement Planning
The catalog number should be matched against the installed axis position, motor, feedback connection and system configuration before purchase. |
|
FIELD VIEW
Before replacing the module
|
|
|
SYSTEM BUILD
One module, one axis position.
|
The 2093-AMP1 is installed on a Bulletin 2093 power rail. The Kinetix 2000 architecture uses an Integrated Axis Module as the main converter and power source, while Axis Modules such as the 2093-AMP1 provide additional motor axes. The power rail is available in configurations for multi-axis systems, and up to seven single-wide axis modules can be installed on an eight-axis power rail configuration.
|
|
AMIKON AUTOMATION
Industrial automation parts, sourced for uptime.
Amikon specializes in industrial automation PLC modules, DCS components, motion-control hardware and difficult-to-source spare parts, supporting maintenance teams that need practical solutions without unnecessary waiting. Global sourcing capability
Fast coordination for spare and operational components across industrial automation systems.
|
|
||||||
|
QUOTATION REQUEST
Send five details to speed up your quotation.
When requesting a quotation for 2093-AMP1, please include the following:
|
SUPPLY TERMS
Replacement-oriented purchasing
For an operating Kinetix 2000 machine, provide the complete catalog number and system details so the correct axis configuration can be evaluated before shipment.
|
|
04 / PURCHASE FAQ
2093-AMP1
Buyer Questions These questions focus on compatibility, replacement decisions and the practical concerns that matter when maintaining an installed Kinetix 2000 system. |
1. Why is the Allen-Bradley 2093-AMP1 still worth considering for a legacy Kinetix 2000 system?
The 2093-AMP1 is a specific 0.3 kW single-wide axis module for the Kinetix 2000 architecture. Although the product is discontinued, an original-format replacement can be valuable when maintaining an existing machine where the power rail, motor configuration and motion architecture were built around the Kinetix 2000 platform. 2. Can the Allen-Bradley 2093-AMP1 simply be replaced by the larger 2093-AMP2 or 2093-AMP5?
Not automatically. The 2093-AMP2 and 2093-AMP5 provide higher current and power ratings, but replacement should not be based on output power alone. The installed motor, feedback arrangement, axis requirements, power-rail configuration and system parameters should all be checked before changing to another axis-module rating. 3. What makes the Allen-Bradley 2093-AMP1 different from the Kinetix 2000 integrated axis module?
The 2093-AMP1 is an Axis Module rather than an Integrated Axis Module. It does not provide the main AC-to-DC converter function of the IAM. Instead, it receives DC-bus power through the Bulletin 2093 power rail and supplies inverter power for its assigned servo axis. 4. What should be checked if an Allen-Bradley 2093-AMP1 replacement immediately shows an axis fault?
First compare the replacement catalog number and axis position with the original installation. Then check motor power wiring, feedback connections, DC-bus conditions, axis enable status and configuration parameters. A fault immediately after replacement does not necessarily indicate a defective module; a mismatch in motor, feedback or axis configuration can produce similar symptoms. 5. Is the Allen-Bradley 2093-AMP1 a suitable choice when cabinet space is limited?
Its single-wide construction is one of its practical advantages within the Kinetix 2000 architecture. The module is approximately 40 mm wide and 225 mm high when mounted to the power rail. However, the complete installation also requires the appropriate cable routing and clearance around connectors, so the overall cabinet arrangement should be checked rather than considering module width alone. |
|
AFTER-SALES
Return &
Replacement |
Please contact us within 7 days if you have any question after receiving the items. A returned item should remain in its original condition and include a specific reason for the return. Once the returned item has been received and reviewed, the appropriate return or replacement arrangement will be made for the order. Shipping costs resulting from the return are the buyer's responsibility. |
