| CURRENT GROUND FAULT MOTOR PROTECTION |
E300 / SENSING MODULE

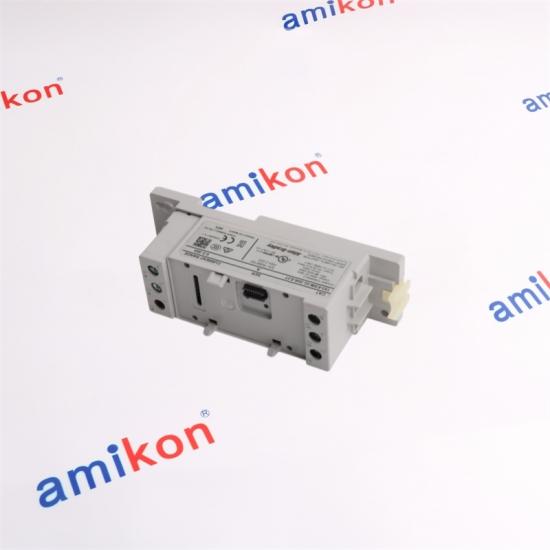

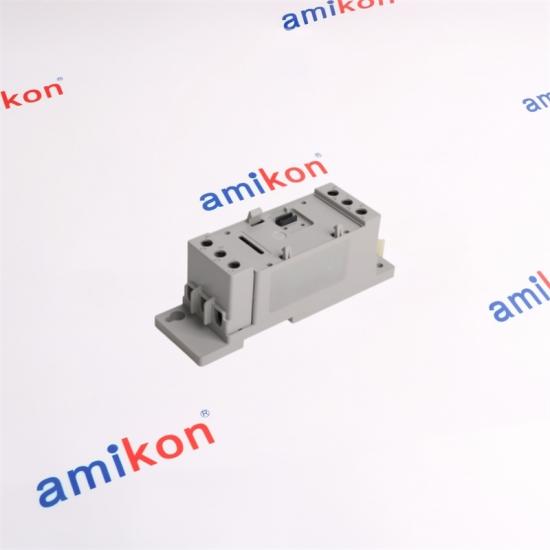

193-ESM-IG-30A-E3TCurrent and ground-fault sensing module
The 193-ESM-IG-30A-E3T is a modular E300/E200 sensing unit for motor-current and ground-fault measurement. It mounts on DIN rail or a panel, includes line- and load-side power conductor terminals and covers a 0.5-30 A sensing range. |
| Request Exact-Model Quote | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
| Sensing functions | Motor current and ground fault |
| Current range | 0.5-30 A |
| Mounting | DIN rail or panel |
| Power path | Line- and load-side conductor terminals |
| System family | E300 / E200 electronic overload relay |
| Module role | Sensing module; requires compatible control and communication modules |
| Legacy relationship | Designed as a direct replacement for 193-ECPM1 |
| Higher-current use | External current transformers may be required by the starter arrangement |
| CATALOG NUMBER | RELATIONSHIP | SELECTION POINT |
| 193-ESM-IG-30A-E3T | Current + ground fault; terminals | Requested execution |
| 193-ESM-I-30A-E3T | Current sensing; terminals | No ground-fault sensing |
| 193-ESM-VIG-30A-E3T | Voltage + current + ground fault | Adds voltage measurement |
| 193-ESM-IG-30A-P | Current + ground fault; pass-through | Different conductor arrangement |
| Confirm Compatibility with Miya | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
| GLOBAL COOPERATION | INSPECTION COORDINATION | URGENT INTERNATIONAL DELIVERY |
| Check Price and Availability | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
| 01 |
Does 193-ESM-IG-30A-E3T operate as a complete overload relay alone?
No. It is the sensing portion and must be assembled with compatible E300/E200 control and communication hardware.
|
| 02 |
What does the IG code mean on 193-ESM-IG-30A-E3T?
It denotes current measurement with ground-fault sensing; it is not the voltage-sensing VIG execution.
|
| 03 |
Can 193-ESM-IG-30A-E3T be used above 30 A?
Only with the approved external-current-transformer arrangement and matching configuration for the starter size.
|
| 04 |
Can a pass-through sensing module replace it directly?
Not automatically. The conductor routing, terminals, mounting and catalog execution must be checked.
|
| 05 |
What should be verified after replacement?
Confirm phase routing, terminal torque, module latching, control-module recognition, full-load-current setting and a controlled protection test.
|
