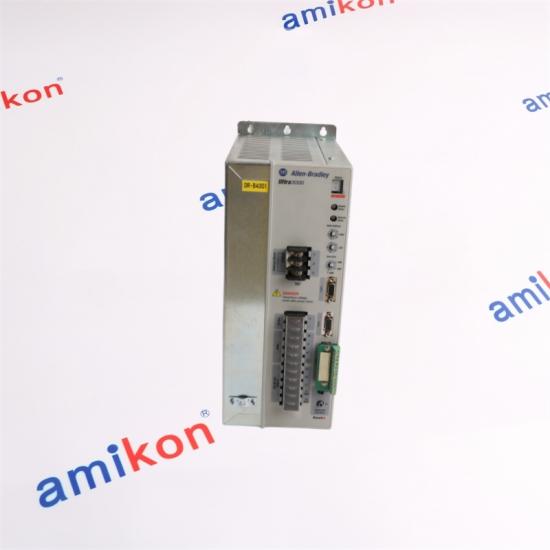

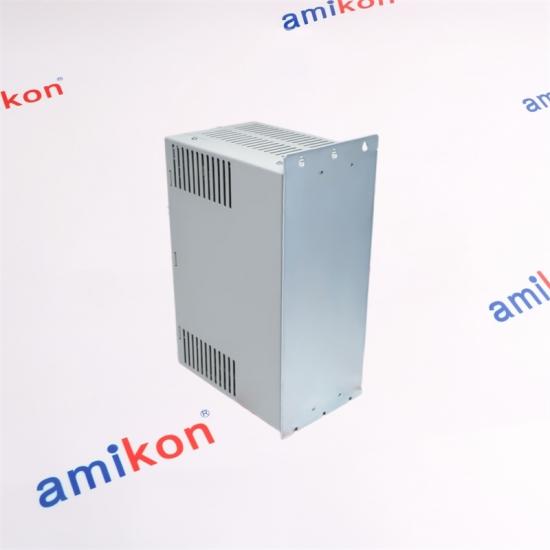

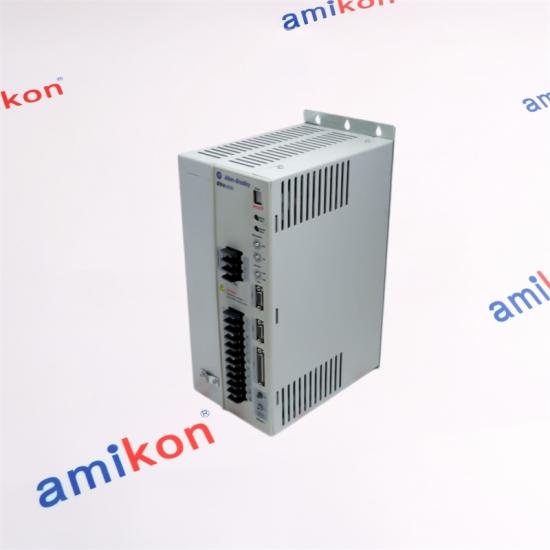

The 2098-DSD-HV150-SE is an Ultra3000 high-voltage digital servo drive with a SERCOS interface. It is intended for coordinated motion systems that use compatible Allen-Bradley controllers, fiber-optic SERCOS media and matched servo motors.
| Request Exact-Model Quote | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
| Input supply | 230-480 V AC, three-phase |
| Input frequency | 47-63 Hz |
| Continuous output | 15 kW at 460 V AC input; 7.5 kW at 230 V AC input |
| Nominal input current | 20 A at 460 V AC |
| Communication | SERCOS, 4 or 8 Mbps |
| Node address range | 01-99 |
| Approximate mass | 10.44 kg |
| Approximate envelope | 151.6 mm wide; 360.7 mm high; 242.2 mm deep |
| CATALOG NUMBER | RELATIONSHIP | SELECTION POINT |
| 2098-DSD-HV150-SE | 15 kW high-voltage drive | Requested SERCOS execution |
| 2098-DSD-HV150-DN | Same power class | DeviceNet execution; not protocol-equivalent |
| 2098-DSD-HV100-SE | 10 kW class | Lower continuous output |
| 2198-E4075-ERS | Kinetix 5700 migration family | Requires system redesign and engineering validation |
| Confirm Compatibility with Miya | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
| GLOBAL COOPERATION | INSPECTION COORDINATION | URGENT INTERNATIONAL DELIVERY |
| Check Price and Availability | sales@amikon.cn | WhatsApp 86-18020776792 |
| Sales manager: Miya zheng | ||
| 01 |
Can 2098-DSD-HV150-SE replace the DeviceNet version?
No. The power class may be similar, but the network interface and controller architecture differ.
|
| 02 |
What must be checked before ordering 2098-DSD-HV150-SE?
Confirm the complete suffix, input voltage, motor data, feedback type, SERCOS ring rate, connector kit and firmware strategy.
|
| 03 |
Can the existing motor remain in service?
Only after motor, feedback, cable and drive-current compatibility are confirmed for the complete axis.
|
| 04 |
Is a modern Kinetix drive a drop-in replacement?
No. Migration changes drive hardware, network, cabling, configuration and often the control program.
|
| 05 |
What checks follow installation?
Verify protective earth, input phasing, motor wiring, feedback polarity, SERCOS node address, ring integrity and axis tuning before production.
|
