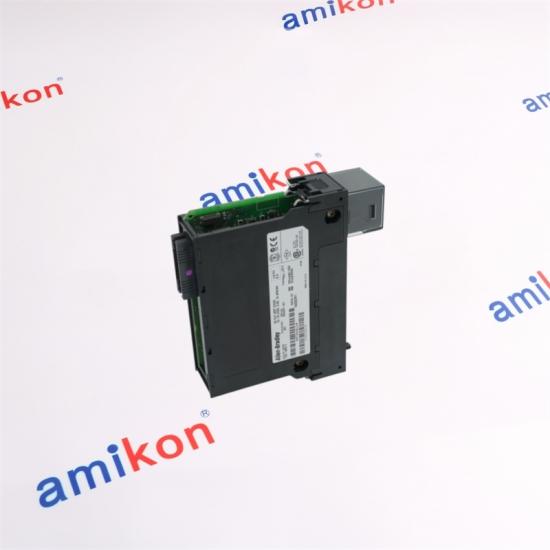

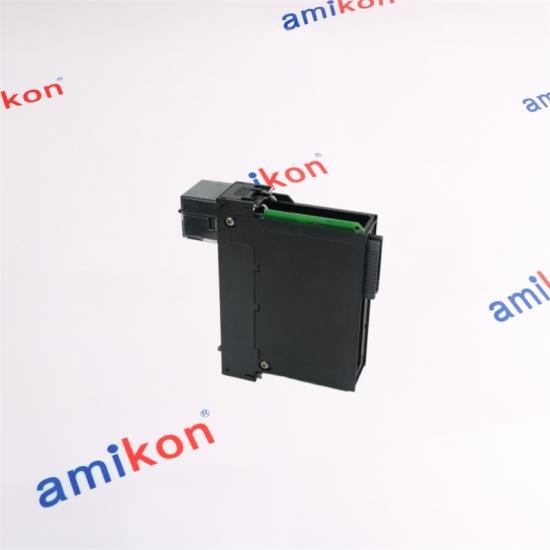

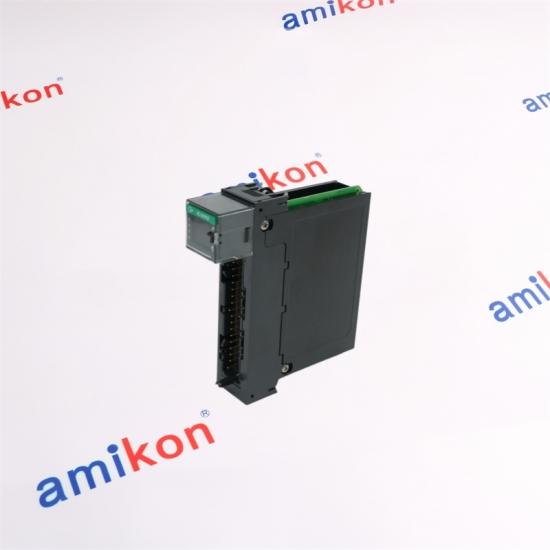

Allen-Bradley 1794-OB32P 24V DC Sourcing Output Module

Allen-Bradley 1794-OB32P
Allen-Bradley 1794-OB32P
Allen-Bradley 1794-OB32P

Allen-Bradley 1794-OB32P 24V DC Sourcing Output Module

Calculate shipping
Quotation Request



32-POINT OUTPUT MATRIX
1794-OB32P
FLEX I/O Sourcing Output Module
Outputs 0...15 use V1/COM1.
Outputs 16...31 use V2/COM2.
DUAL POWER GROUP / HIGH-DENSITY FIELD CONTROL
32
Sourcing outputs		 500 mA
Maximum per channel		 14 A
Maximum module total
10...31.2V DC   |   1794-TB32 or 1794-TB32S   |   Electronically protected outputs
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
Miya Zheng
Sales Manager		 EMAIL QUOTE WHATSAPP


INDUSTRIAL I/O / FLEX I/O
1794-OB32P
32-Point Electronically Protected 24V DC Sourcing Output Module
The 1794-OB32P concentrates 32 current-sourcing outputs in one FLEX I/O module. Outputs 0...15 use the V1/COM1 power group and outputs 16...31 use V2/COM2. The module is intended for 1794-TB32 or 1794-TB32S terminal bases and provides one yellow status indicator per output.
32 SOURCING OUTPUTS
10...31.2V DC
14 A MODULE MAX
Signal and Electrical Profile
Dual Power Groups
The first 16 points and second 16 points use separate field-power terminal groups, supporting organized load distribution.		 Electronic Protection
Outputs are electronically protected. Maximum channel current is 500 mA with 1 mA minimum ON-state current.		 Group Limits
Channels 0...15 allow 6 A total; channels 16...31 allow 8 A total; the entire module is limited to 14 A.
Parameter Value
Terminal bases 1794-TB32 or 1794-TB32S
Per-channel current 1 mA minimum; 500 mA maximum
Surge capability 2 A for 50 ms, repeatable every 2 seconds
Signal delay 0.5 ms OFF-to-ON; 1.0 ms ON-to-OFF
Flexbus current 80 mA at 5V DC
Confirm 1794-OB32P Before Ordering
Send the installed system, terminal arrangement, field voltage, quantity and destination.		 Miya Zheng
Sales Manager		 EMAIL WHATSAPP

SYSTEM RELATIONSHIP
1794-OB32P Density, Power Groups and Family Position
Model Point Density Selection Difference
1794-OB32P 32 sourcing outputs Uses TB32/TB32S and two field-power groups; 14 A total.
1794-OB16P 16 sourcing outputs Uses TB2/TB3-family bases and provides a smaller output image.
1794-OB8EP 8 sourcing outputs Higher 2 A point rating, overload fault feedback and reset control.
Selection point: Do not select by point count alone. Confirm TB32/TB32S compatibility, both power groups, group-current limits and 0.5 A channel rating.
Amikon's Large Stock Is the Core of Our Supply
Multilingual Support
Dedicated coordination for global customers.
400,000+ Products
PLC, HMI, drives, servo, CNC, IPC and PG coverage.
Stock-Driven Supply
Coverage for current and mature equipment.
Our large industrial stock is ready for delivery. Strategic purchasing and a preferred supplier network support availability across a wide range of brands. Fast coordination helps production start and run with less interruption. No additional handling or hidden charges are incurred.
Speak With Miya Zheng
Receive a focused response for compatibility, quantity and delivery planning.
SALES MANAGER
Miya Zheng		 EMAIL
sales@amikon.cn		 WHATSAPP
+86 18020776792
After-delivery support: Contact us within seven days if an issue occurs. Keep the item in its original condition and provide the return reason. Return or replacement can be arranged after receipt and inspection; return freight is paid by the buyer.
1794-OB32P Buyer FAQ
Can 1794-OB32P use a standard 1794-TB3 base?
No. It is intended for the 1794-TB32 or 1794-TB32S terminal base.		 Is the 14 A rating of 1794-OB32P available in either half?
No. Outputs 0...15 are limited to 6 A total and outputs 16...31 to 8 A total.
Does 1794-OB32P provide electronic output protection?
Yes. The outputs are electronically protected, but load coordination still requires correct field design.		 Can 1794-OB32P drive a 2 A steady-state load on one point?
No. The continuous maximum is 500 mA per channel; 2 A applies only to the 50 ms surge condition.
What should be verified before ordering 1794-OB32P?
Check sourcing polarity, TB32/TB32S base, two field-power groups, 10...31.2V DC range, channel current and group totals.
