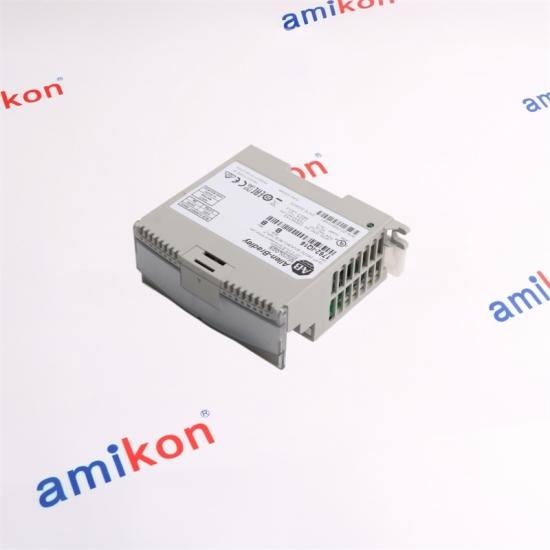

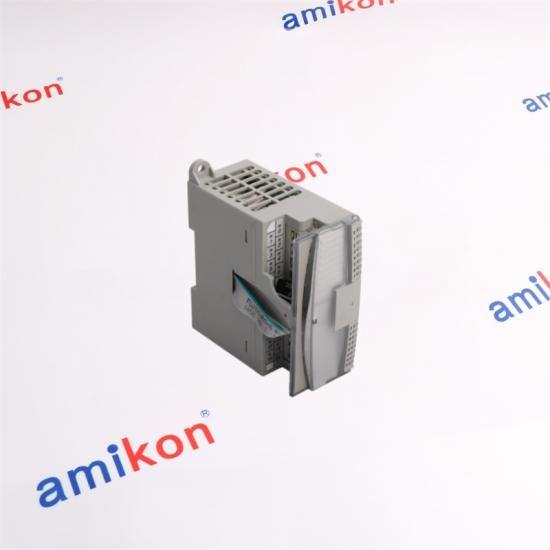

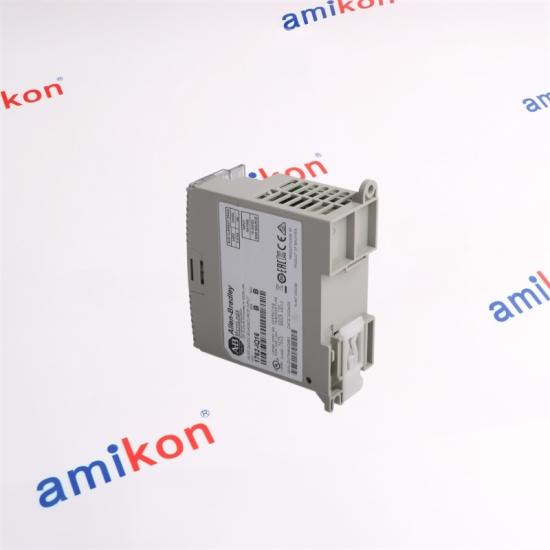

Allen-Bradley 1762-IQ16 16-point digital DC input module

Allen-Bradley 1762-IQ16
Allen-Bradley 1762-IQ16
Allen-Bradley 1762-IQ16

Allen-Bradley 1762-IQ16 16-point digital DC input module

Calculate shipping
Quotation Request


MICROLOGIX 1200 EXPANSION I/O

1762-IQ16
16-Point DC Input Module
Two isolated input groups support sink or source field-device wiring.
16
DC inputs
24V DC
sink/source
10–30V DC
operating range
Inputs 0–7
isolated group 1
8 ms
on/off delay
Inputs 8–15
isolated group 2
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
Sales manager: Miya Zheng
EMAIL   sales@amikon.cn PHONE   +86 18020776792


INDUSTRIAL I/O / MICROLOGIX 1200 EXPANSION I/O
1762-IQ16
16-Point 24V DC Sinking or Sourcing Digital Input Module
The 1762-IQ16 adds sixteen 24V DC inputs to a compatible MicroLogix expansion system. Its inputs are arranged as two isolated groups: points 0...7 and points 8...15, each with its own common. Bit positions 0...15 correspond directly to input terminals 0...15 in the input word.
16 DIGITAL INPUTS
10...30V DC
2 ISOLATED GROUPS
Signal and Electrical Profile
Sinking or Sourcing Wiring
The two commons support field-device wiring for sinking or sourcing operation when polarity is applied correctly.		 Input Thresholds
2 mA minimum at 10V DC, 8 mA nominal at 24V DC and 12 mA maximum at 30V DC.		 Expansion Position
Expansion I/O begins at slot 1; the power-supply distance rating is 6.
Parameter Value
Signal delay 8 ms maximum ON delay and 8 ms maximum OFF delay
Nominal impedance 3 kohm
Bus current draw 70 mA at 5V DC (0.35 W)
Heat dissipation 5.4 W at 30V DC; 4.3 W at 26.4V DC
Dimensions 90 x 40.4 x 87 mm without mounting tabs
Confirm 1762-IQ16 Before Ordering
Send the installed system, terminal arrangement, field voltage, quantity and destination.		 Miya Zheng
Sales Manager		 EMAIL WHATSAPP

SYSTEM RELATIONSHIP
1762-IQ16 in the MicroLogix Expansion I/O Range
Model Input Arrangement Selection Difference
1762-IQ16 16 DC inputs, two groups Balanced density with two commons and 24V DC sinking or sourcing compatibility.
1762-IQ8 8 DC inputs, one group Lower point count and lower backplane demand for small expansions.
1762-IQ32T 32 DC inputs Higher density; field wiring, derating and expansion capacity must be reviewed.
Selection point: Confirm controller expansion support, module position, two-common field wiring, 24V DC device polarity and the permitted temperature/voltage combination.
Amikon's Large Stock Is the Core of Our Supply
Multilingual Support
Dedicated coordination for global customers.
400,000+ Products
PLC, HMI, drives, servo, CNC, IPC and PG coverage.
Stock-Driven Supply
Coverage for current and mature equipment.
Our large industrial stock is ready for delivery. Strategic purchasing and a preferred supplier network support availability across a wide range of brands. Fast coordination helps production start and run with less interruption. No additional handling or hidden charges are incurred.
Speak With Miya Zheng
Receive a focused response for compatibility, quantity and delivery planning.
SALES MANAGER
Miya Zheng		 EMAIL
sales@amikon.cn		 WHATSAPP
+86 18020776792
After-delivery support: Contact us within seven days if an issue occurs. Keep the item in its original condition and provide the return reason. Return or replacement can be arranged after receipt and inspection; return freight is paid by the buyer.
1762-IQ16 Buyer FAQ
Can 1762-IQ16 accept both sinking and sourcing field devices?
Yes, when the commons and supply polarity are wired for the selected current direction.		 Are all 16 points of 1762-IQ16 in one common group?
No. Inputs 0...7 and inputs 8...15 form two separately grouped sections.
Can 1762-IQ16 operate at 30V DC across the full temperature range?
No. The permitted upper voltage is reduced to 26.4V DC under the higher-temperature derating condition.		 How is 1762-IQ16 addressed in a MicroLogix expansion system?
Expansion I/O starts at slot 1, and bits 0...15 map to field inputs 0...15.
What should be checked before ordering 1762-IQ16?
Verify controller compatibility, available expansion position, power-supply distance rating, sinking or sourcing wiring, voltage range and two-common grouping.
