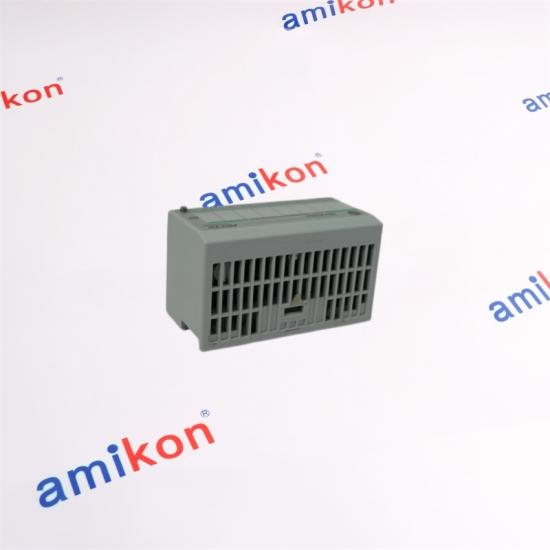

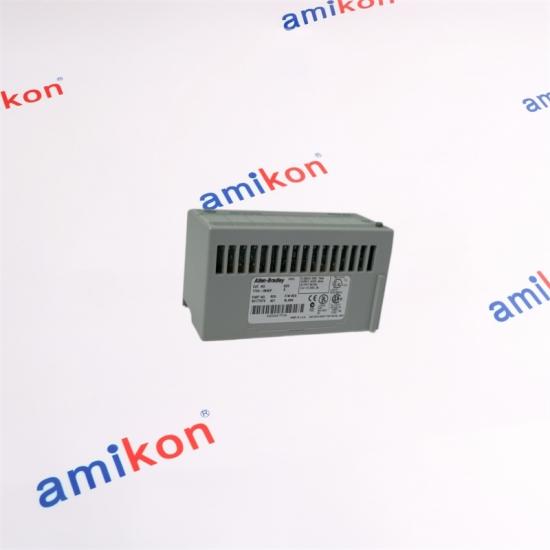

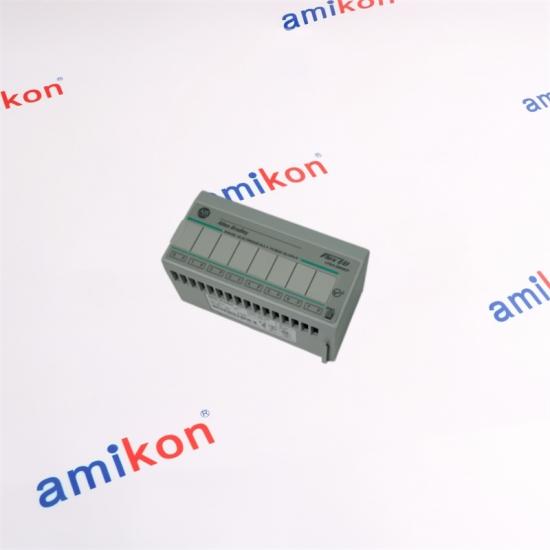

Allen-Bradley 1794-OB8EP 24V DC Sourcing Output Module

Allen-Bradley 1794-OB8EP
Allen-Bradley 1794-OB8EP
Allen-Bradley 1794-OB8EP

Allen-Bradley 1794-OB8EP 24V DC Sourcing Output Module

Calculate shipping
Quotation Request


FLEX I/O PROTECTED OUTPUT
1794-OB8EP
8-Point 24V DC Source Module
Electronic output protection combines channel fault indication with reset capability.
ELECTRONIC SHIELD
O0 O1 O2 O3 O4 O5 O6 O7
8
source outputs
2 A
per output max
10 A
module max
19.2–31.2V DC
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
Sales manager: Miya Zheng
EMAIL   sales@amikon.cn PHONE   +86 18020776792


INDUSTRIAL I/O / FLEX I/O
1794-OB8EP
8-Point Electronically Fused 24V DC Sourcing Output Module
The 1794-OB8EP provides eight current-sourcing DC outputs for distributed FLEX I/O installations. Each point includes electronic overcurrent protection, a yellow output-status indicator and a red fault indicator. A fault can be reset at the front pushbutton, through the reset bit, or by cycling backplane power.
8 SOURCING OUTPUTS
19.2...31.2V DC
2.0 A MAX / POINT
Signal and Electrical Profile
Electronic Protection
Outputs are electronically fused. Fault status is returned for points 0...7, and the lower byte of read word 1 must not be used as fault status.		 Fast Switching
Maximum delays are 0.1 ms from OFF to ON and 0.1 ms from ON to OFF.		 Load Capacity
Up to 2.0 A per output and 10.0 A total, including combinations such as eight points at 1.25 A or five at 2.0 A.
Parameter Value
Terminal bases 1794-TB2, TB3, TB3S, TBN, TB3K, TB3SK or TBNK
Surge capability 4 A for 50 ms, repeatable every 3 seconds
Voltage drop / leakage 0.2V DC max / 0.5 mA max
Flexbus current 73 mA at 5V DC
Indicators 8 yellow status and 8 red fault indicators
Confirm 1794-OB8EP Before Ordering
Send the installed system, terminal arrangement, field voltage, quantity and destination.		 Miya Zheng
Sales Manager		 EMAIL WHATSAPP

SYSTEM RELATIONSHIP
1794-OB8EP in the FLEX I/O DC Output Family
Model Output Format Selection Difference
1794-OB8EP 8 sourcing, 2 A per point, 10 A module Electronic fusing, fault feedback and dedicated fault reset behavior.
1794-OB8 8 sourcing, 0.5 A per point, 4 A module Lower current capacity; external fusing is recommended.
1794-OB16P 16 sourcing, 0.5 A per point Higher point density with electronic protection but different current and image size.
Selection point: Match the terminal base, 24V DC field supply, point current, total module current and fault-reset strategy.
Amikon's Large Stock Is the Core of Our Supply
Multilingual Support
Dedicated coordination for global customers.
400,000+ Products
PLC, HMI, drives, servo, CNC, IPC and PG coverage.
Stock-Driven Supply
Coverage for current and mature equipment.
Our large industrial stock is ready for delivery. Strategic purchasing and a preferred supplier network support availability across a wide range of brands. Fast coordination helps production start and run with less interruption. No additional handling or hidden charges are incurred.
Speak With Miya Zheng
Receive a focused response for compatibility, quantity and delivery planning.
SALES MANAGER
Miya Zheng		 EMAIL
sales@amikon.cn		 WHATSAPP
+86 18020776792
After-delivery support: Contact us within seven days if an issue occurs. Keep the item in its original condition and provide the return reason. Return or replacement can be arranged after receipt and inspection; return freight is paid by the buyer.
1794-OB8EP Buyer FAQ
Can 1794-OB8EP deliver 2 A on all eight outputs together?
No. Each point can reach 2 A, but the module total is limited to 10 A.		 Does 1794-OB8EP need external output fuses?
The outputs are electronically fused; coordinate downstream protection with the actual load and plant practice.
How is an overload cleared on 1794-OB8EP?
Correct the field fault, then use the front reset button, the reset bit, or a backplane power cycle.		 Which terminal bases fit 1794-OB8EP?
Use TB2, TB3, TB3S, TBN, TB3K, TB3SK or TBNK variants as appropriate.
What should be checked before replacing 1794-OB8EP?
Verify sourcing polarity, 19.2...31.2V DC supply, point and total current, keyswitch position 2, terminal base and fault handling.
