Allen Bradley 1785-L80C programmable controller

Amikon

Amikon's continued growth and influence are evident in its continued expansion of its product line and customer base.

Amikon currently offers one of the broadest selections of spare parts for manufacturers and industrial automation equipment,

including simple logic controllers (PLCs), human-machine interfaces (HMIs), local control systems (DCSs), panel controllers, industrial PCs, and variable frequency drives (VFDs).

Amikon is a trusted partner to many of the world's leading manufacturers and system integrators. We stock thousands of automation control components from leading OEMs, extending the lifecycle of existing systems.

┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅┅

We will do our best

 Help you keep the old equipment in good condition. Are you or your customers experiencing serious electronic equipment failures in your busines?

A quick solution is in your best interest! Sometimes, it may be difficult to find the required components.

Our large stock usually enables us to help you, so your production can be restarted immediately!

Overview

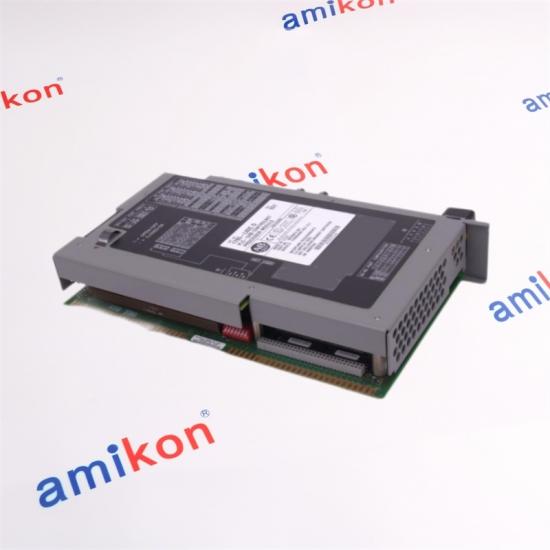

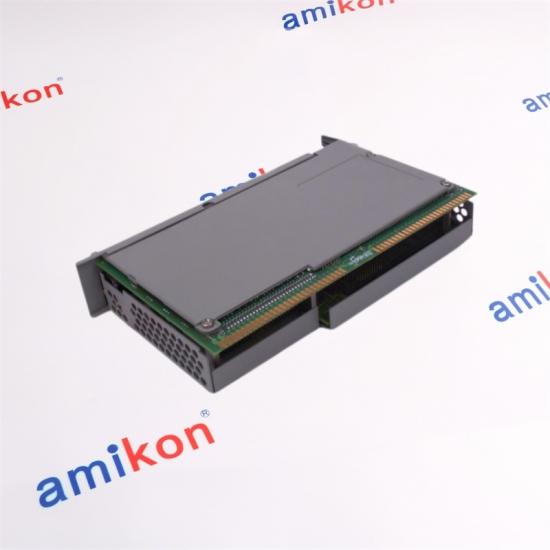

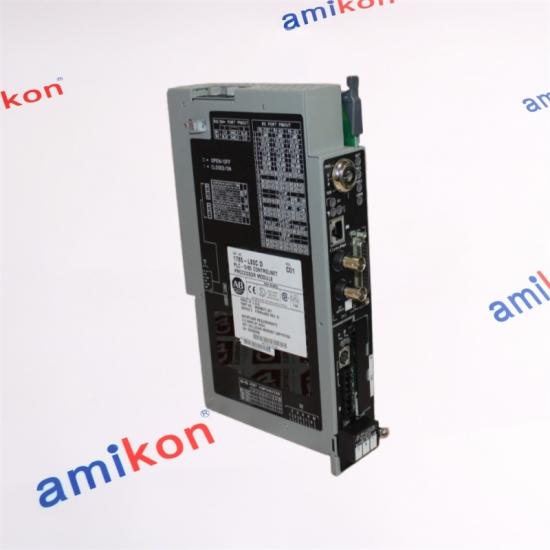

The 1785-L80C controller is a ControlNet programmable controller that is manufactured by Allen-Bradley/Rockwell Automation in the PLC 5 series. It uses the ControlNet network to exchange data with I/O devices like variable speed drives, I/O racks, and HMI devices efficiently. The 1785-L80C programmable controller uses a battery for memory backup and there is a battery light that will indicate when the battery is low and needs to be replaced. The 1785-L80C programmable controller uses the Allen-Bradley 1784-KTCx communication interface card.

Technical specifications

Main Features

FQA

Q: What is the maximum I/O capacity of the 1785-L80C?
A: The 1785-L80C supports up to 3072 I/O points for large-scale industrial automation systems.

Q: Which communication networks are supported by the 1785-L80C?
A: The controller supports ControlNet, Data Highway Plus (DH+), and Remote I/O communication networks.

Q: What is the ControlNet communication speed of the 1785-L80C?
A: The built-in ControlNet interface operates at a transfer speed of 5 Mbps.

Q: Which memory modules are compatible with the 1785-L80C?
A: Compatible memory modules include the 1785-ME32, 1785-ME64, and 1785-M100 modules.

Q: What operating temperature range does the 1785-L80C support?
A: The controller operates reliably in temperatures ranging from 0°C to 60°C (32°F to 140°F).
