Allen-Bradley 1785-L80C15 Programmable Logic Controller

We will do our best

 Help you keep the old equipment in good condition. Are you or your customers experiencing serious electronic equipment failures in your busines?

A quick solution is in your best interest! Sometimes, it may be difficult to find the required components.

Our large stock usually enables us to help you, so your production can be restarted immediately!

Overview

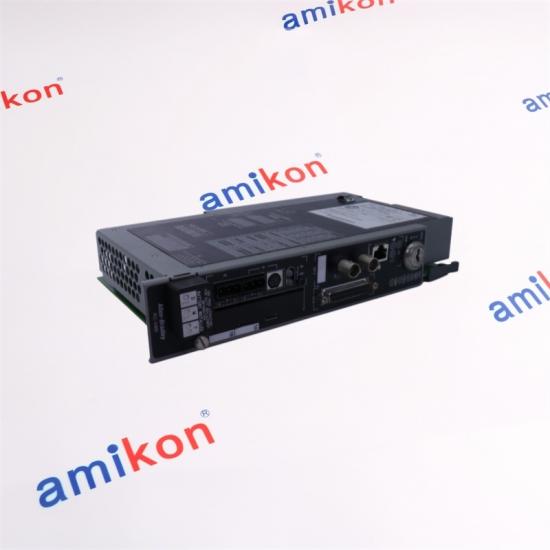

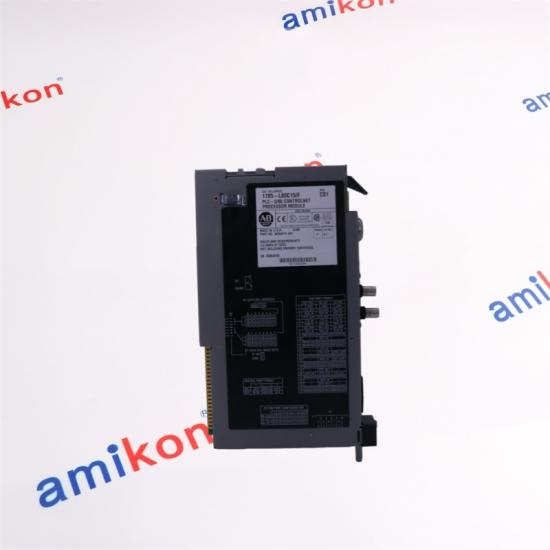

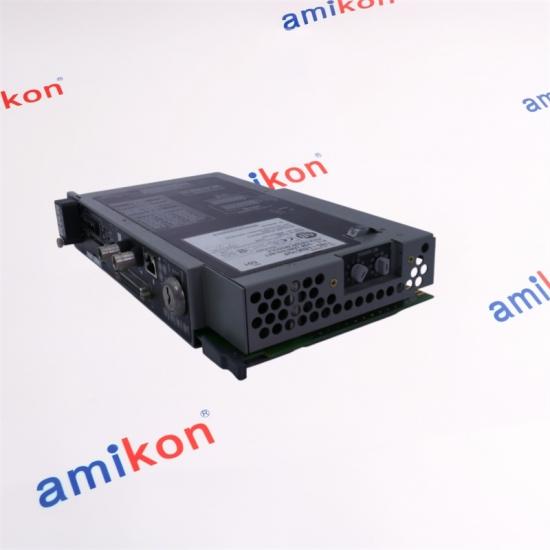

The Allen-Bradley 1785-L80C15 is a ControlNet PLC5 Programmable Logic Controller (PLC). This controller features a variety of embedded communication ports such as serial, Data Highway Plus (DH+), DH using 1785-KA, Remote I/O (RIO) and ControlNet. It supports a maximum user memory of 100K Words and capable of handling any mix of discrete I/O with a total of 3072 point and 3072 input and 3072 output in complimentary mode.

Details

ALLEN BRADLEY 1785-L80C15 Features

ü Supports up to 3072 input and output points

ü Embedded with 100K user memory words

ü Built-in 5 Mbps ControlNet communication interface

ü Supports ControlNet, DH+, RIO, and DF1 protocols

ü Flexible 2-slot, 1-slot, and 1/2-slot addressing modes

ü Fast program scan time for complex applications

ü Optically-coupled Channel 0 for improved noise immunity

ü Equipped with redundant ControlNet media ports

ü Multiple LED status indicators for diagnostics and monitoring

ü Suitable for demanding industrial environments

FQA

Q: What is the maximum I/O capacity of the 1785-L80C15?
A: The 1785-L80C15 supports up to 3072 total I/O points for large automation systems.

Q: Which communication protocols are supported by the 1785-L80C15?
A: The controller supports ControlNet, Data Highway Plus (DH+), Remote I/O (RIO), and DF1 communication protocols.

Q: What is the ControlNet communication speed of the 1785-L80C15?
A: The built-in ControlNet network operates at a transmission speed of 5 Mbps.

Q: Which chassis are compatible with the 1785-L80C15?
A: Compatible chassis include 1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, and 1771-A4B.

Q: What operating temperature range does the 1785-L80C15 support?
A: The controller operates within a temperature range of 0°C to 60°C (32°F to 140°F).
