Allen-Bradley 1756-OV16E 16-Point Electronically Fused Sinking Output Module
| AMIKON / AB | Overview | Specifications | Integration | Related Models | FAQ |
|
ALLEN-BRADLEY / INDUSTRIAL AUTOMATION
1756-OV16E
CONTROLLOGIX PROTECTED DC OUTPUT
|
MATCH THE CODE
VERIFY THE REVISION PLAN THE REPLACEMENT |
|

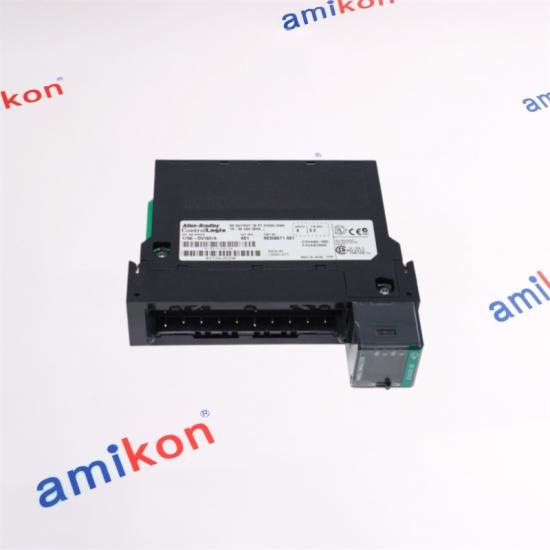

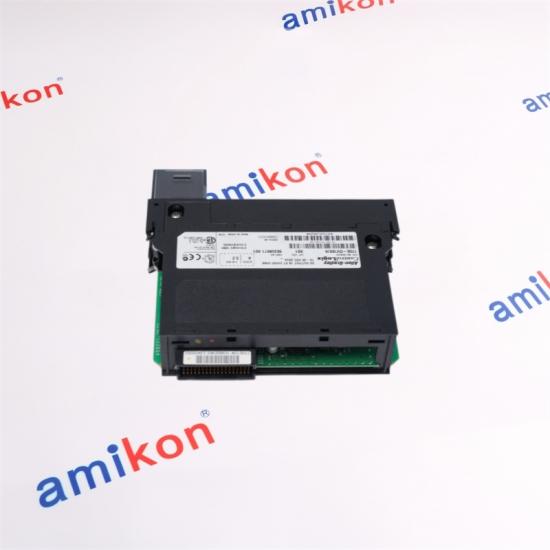

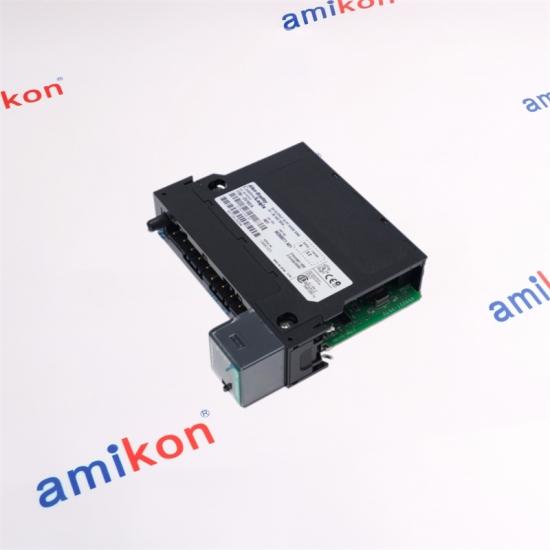

16-Point Electronically Fused Sinking Output Module
Allen-Bradley 1756-OV16E is a ControlLogix 16-point DC sinking output module with electronic protection. It switches compatible 10-30 V DC field loads, reports output faults to the controller and installs in a ControlLogix chassis with the specified removable terminal block.
|
REQUEST A QUOTE → |
| ▣ | Technical Specifications |
| Output points | 16 |
| Output type | DC sinking, electronically protected |
| Operating output range | 10-30 V DC |
| Pilot-duty rating | 1 A pilot duty |
| Maximum module output current | 8 A |
| Backplane current at 5.1 V DC | 210 mA |
| Backplane current at 24 V DC | 2 mA |
| Operating temperature | 0-60 deg C |
| Compatible RTB | 1756-TBNH or 1756-TBSH |
| Chassis family | ControlLogix 1756 |
|
SYSTEM PATH / ENGINEERING CHECK
Functional Role & System Integration
The module receives output commands through the ControlLogix backplane and sinks current from field loads connected through the removable terminal block. Application design must consider group and module current, field-supply sizing, shared commons, conductor protection, load inrush and the configured fault response.
|
IDENTIFY ISOLATE INSTALL VALIDATE |
|
Experienced support for exact-code matching and international coordination.
|
Careful inspection and code confirmation before dispatch.
|
Urgent dispatch options help limit production delays.
|
|
1
|
Does the module source or sink current?
It is a DC sinking output module.
|
|
2
|
How many outputs are available?
The module provides 16 output points.
|
|
3
|
Is the removable terminal block included automatically?
Confirm the required 1756-TBNH or 1756-TBSH separately for the installation.
|
|
4
|
Can 1756-OV32E replace it without changes?
No. Point density, wiring, grouping and current limits must be reviewed.
|
|
5
|
What should be checked during replacement?
Verify field voltage, load current, commons, RTB keying, chassis slot and controller configuration.
|
|
Need price, lead time or revision confirmation?
Send the complete catalog code, quantity and destination for a focused response.
|
CONTACT AMIKON |
