1797-IE8H
FLEX Ex HART ANALOG INPUT
|
MATCH THE CODE
VERIFY THE REVISION PLAN THE REPLACEMENT |
|
8-Channel Intrinsically Safe HART Input Module

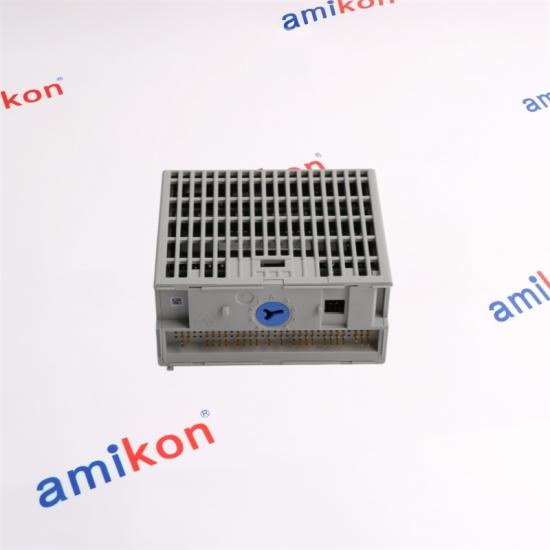

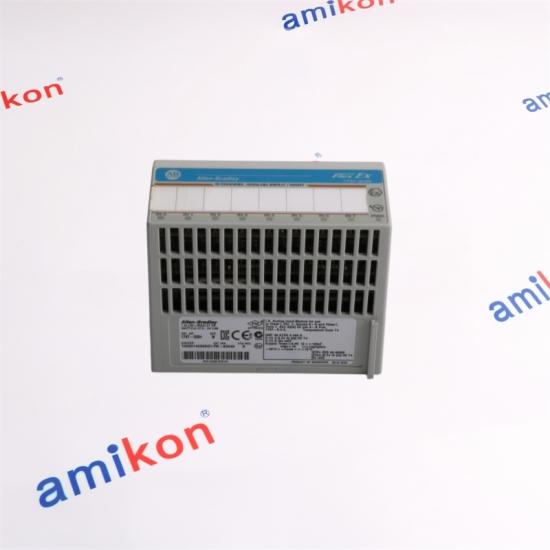

Allen-Bradley 1797-IE8H is a FLEX Ex intrinsically safe analog input module with eight single-ended HART-capable channels. It accepts compatible field-transmitter signals in hazardous-area applications and exchanges channel data, status and HART communication through the FLEX Ex system.
|
REQUEST A QUOTE → |
| ▣ | Technical Specifications |
| Input channels | 8 single-ended, non-isolated |
| Signal capability | Analog input with HART communication |
| Resolution | 16 bit |
| Accuracy at 20 deg C | 0.1% of signal range |
| Temperature drift | 0.005% per deg C of signal range |
| Step response | 60 ms to 99% of full scale at the smallest filter setting |
| Indicators | 8 red fault indicators and 1 green power indicator |
| Field-side power consumption | 7.5 W |
| Power dissipation | 5.2 W |
| Terminal base | Use the approved FLEX Ex terminal-base arrangement |
|
SYSTEM PATH / ENGINEERING CHECK
Functional Role & System Integration
The 1797-IE8H mounts in a FLEX Ex I/O station and interfaces intrinsically safe field loops with the system adapter through the FLEXbus. Channel configuration, HART device wiring, entity parameters, terminal-base selection, power supply and hazardous-location practices must be checked as one engineered system.
|
IDENTIFY ISOLATE INSTALL VALIDATE |
|
Experienced support for exact-code matching and international coordination.
|
Careful inspection and code confirmation before dispatch.
|
Urgent dispatch options help limit production delays.
|
|
1
|
How many input channels are provided?
Eight single-ended input channels are provided.
|
|
2
|
Does the module support HART?
Yes. It supports HART communication with compatible field devices.
|
|
3
|
Is it a standard ControlLogix chassis module?
No. It belongs to the FLEX Ex distributed I/O platform.
|
|
4
|
Can 171x-CF4H be treated as a direct drop-in replacement?
No. Channel count, resolution, update rate, data type and wiring arrangement differ.
|
|
5
|
What must be checked before energization?
Verify intrinsic-safety entity parameters, terminal base, field power, polarity, grounding and configured channel type.
|
|
Need price, lead time or revision confirmation?
Send the complete catalog code, quantity and destination for a focused response.
|
CONTACT AMIKON |
