16 axes. One digital motion link.

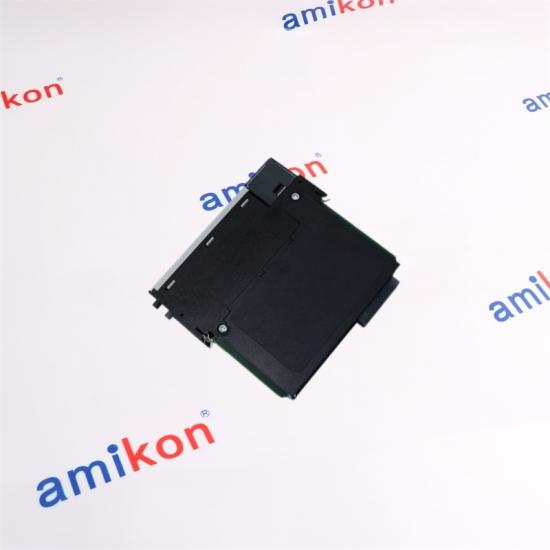

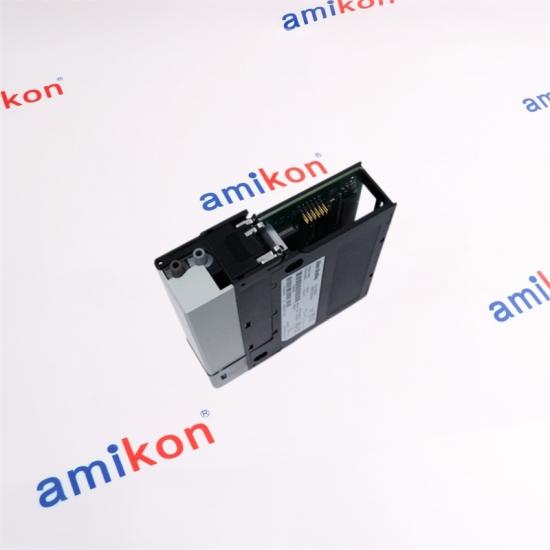

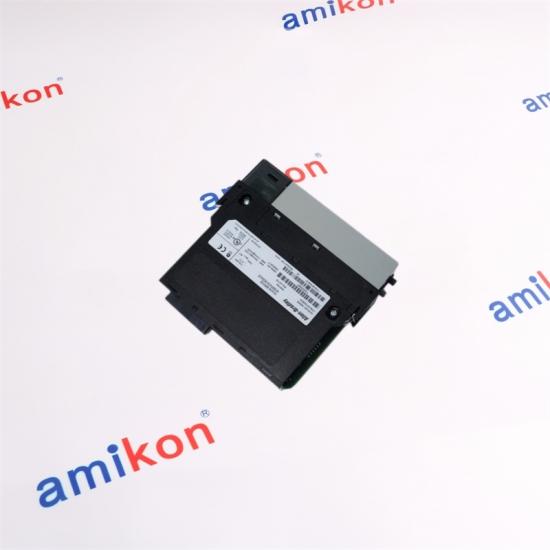

The 1756-M16SE is a chassis-based ControlLogix SERCOS interface module designed to connect motion-control applications through a digital fiber-optic SERCOS link. |
|
MOTION CORE
16
axis capacity
Open-style chassis module
1 slot width Approx. 5 W dissipation |
| Digital fiber-optic link The SERCOS interface replaces multiple point-to-point digital wiring paths with a single digital optical connection. |
Cycle performance At 8 Mbps, SERCOS cycle-time capability reaches 0.5 ms for up to 4 drives, 1 ms for up to 8 drives and 2 ms for up to 16 drives. |
Drive families Compatible drive families include Kinetix 2000, Kinetix 6000, Kinetix 7000 and Ultra3000 SERCOS drives. |
Installation position Chassis-based installation; the module occupies one ControlLogix slot and can be installed in supported chassis positions. |
| 1756-M03SE Up to 3 drives |
1756-M08SE Up to 8 drives |
1756-M16SE Up to 16 drives Best suited when one SERCOS interface must serve a larger multi-axis motion group. |
| 5.1 V DC current 760 mA |
24 V DC current 2.5 mA |
Power dissipation 5.0 W |
Operating temperature 0…60 °C |
| Storage temperature -40…85 °C |
Humidity 5…95% noncondensing |
Slot width 1 |
Module type Open-style |
|
Amikon's large stock is the core of our supply.
Industrial automation inventory prepared for urgent requirements. |
400,000+
electronic products PLC · HMI · drives · servo · CNC · IPC · PG
|
READY TO SHIP
New and out-of-production products
Supplier network support when stock is unavailable. |
| Sales Manager Miya zheng |
Email sales@amikon.cn |
Phone / WhatsApp +86 180 2077 6792 |
| 01 | Does 1756-M16SE really support a 16-drive motion group? Yes. The module is specified for a maximum of 16 SERCOS drives, making it the high-capacity member of the standard M03SE/M08SE/M16SE group. |
| 02 | Which control modes can 1756-M16SE support? The standard SERCOS interface specification supports position, velocity and torque control modes. |
| 03 | What is the advantage of 8 Mbps operation on 1756-M16SE? At 8 Mbps, the specified SERCOS cycle-time capability can reach 0.5 ms for up to four drives, 1 ms for up to eight drives and 2 ms for up to sixteen drives. |
| 04 | Can 1756-M16SE be used in a standard ControlLogix chassis? Yes. It is a chassis-based one-slot SERCOS module and is specified for standard ControlLogix chassis such as the 1756-A4, A7, A10, A13 and A17 families. |
| 05 | Which drive families are associated with 1756-M16SE applications? The SERCOS interface specification includes Kinetix 2000, Kinetix 6000, Kinetix 7000 and Ultra3000 SERCOS servo drives. |
