A structured home for a scalable ControlLogix system.

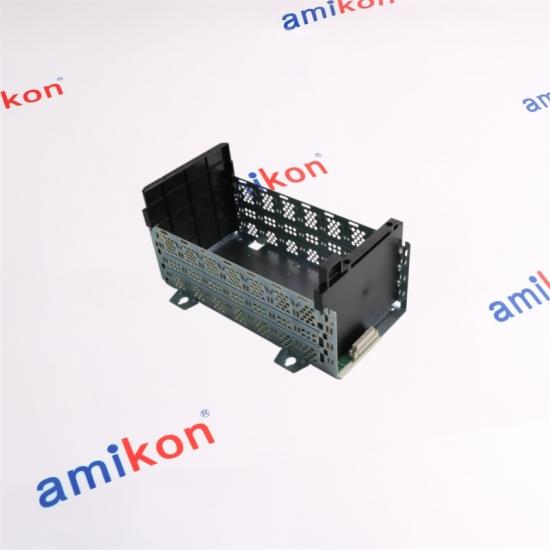

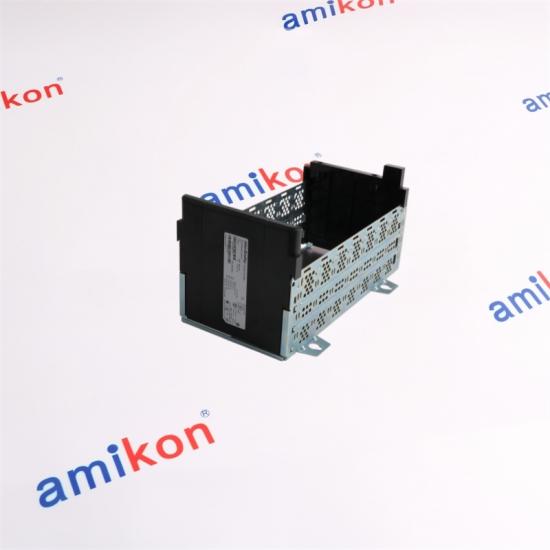

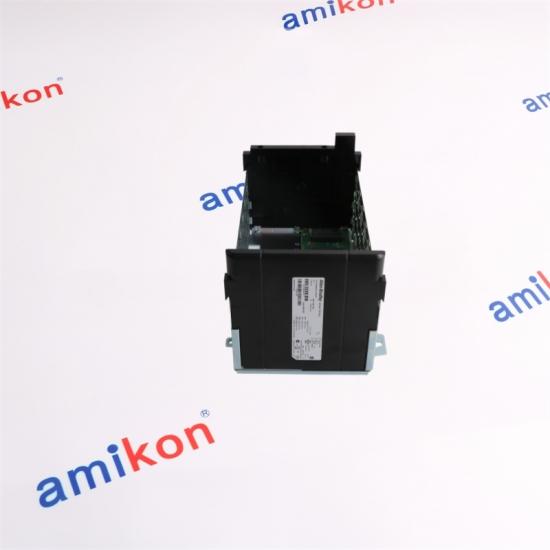

The 1756-A7 provides seven module positions for a ControlLogix system. Its backplane creates a high-speed communication path between installed modules while distributing power across the chassis. The chassis uses horizontal back-panel mounting and allows modules to be placed in any available slot, giving system builders a practical way to combine controllers, communication modules, I/O and motion-related hardware. |
|
| Backplane 1.2 V DC: 1.5 A chassis maximum 3.3 V DC: 4 A chassis / 4 A slot 5.1 V DC: 15 A chassis / 6 A slot 24 V DC: 2.8 A chassis / 2.8 A slot |
Thermal Maximum chassis power dissipation: 4.5 W Operating temperature: 0…60 °C Storage temperature: -40…85 °C |
Environment 5…95% noncondensing humidity 2 g vibration at 10…500 Hz 30 g operating shock |
Cabinet Minimum cabinet size: 50.8 × 61.0 × 20.3 cm Functional earth: 8 AWG copper Protective earth: 14 AWG copper |
The chassis is not simply a mounting frame. It establishes the common backplane used by the ControlLogix modules installed in the seven available positions.
|
1756-A4
4-slot chassis for smaller module counts. |
1756-A7
7 slots A balanced choice when four positions are not enough but a larger chassis would add unnecessary space. |
1756-A10
10-slot option when the system needs additional module capacity. |
Selection advantage
1756-A7 gives seven positions while retaining the standard ControlLogix chassis architecture and high-speed backplane. |
|
Amikon's large stock is the core of our supply.
Strategic inventory for automation replacement and urgent industrial requirements.
|
More than 400,000 electronic products across automation categories.
|
READY
New / discontinued / hard-to-find
When an item is unavailable, our preferred supplier network can be searched for an alternative supply route.
|
| Sales Manager Miya zheng |
Email sales@amikon.cn |
Phone / WhatsApp +86 180 2077 6792 |
| 01 | Can 1756-A7 accept modules in any slot? Yes. The standard ControlLogix chassis architecture allows a compatible module to be placed in any available chassis slot, subject to the complete system design and power budget. |
| 02 | Is 1756-A7 suitable when a four-slot chassis is too small? Yes. Its seven positions provide three additional module locations over the 1756-A4, making it a practical middle-size choice for a growing ControlLogix system. |
| 03 | What should be checked before replacing a 1756-A7? Check the chassis series, installed power supply, module combination, cabinet clearances, grounding arrangement and the available backplane current budget. |
| 04 | Does 1756-A7 use natural convection cooling? Yes. The chassis is specified for convection cooling. Cabinet design still needs to maintain the required ambient temperature and installation clearances. |
| 05 | Can 1756-A7 be mounted vertically? No. The standard chassis is designed for horizontal back-panel mounting, so a replacement installation should preserve the specified mounting orientation. |
