Two groups. Sixteen inputs. One compact footprint.

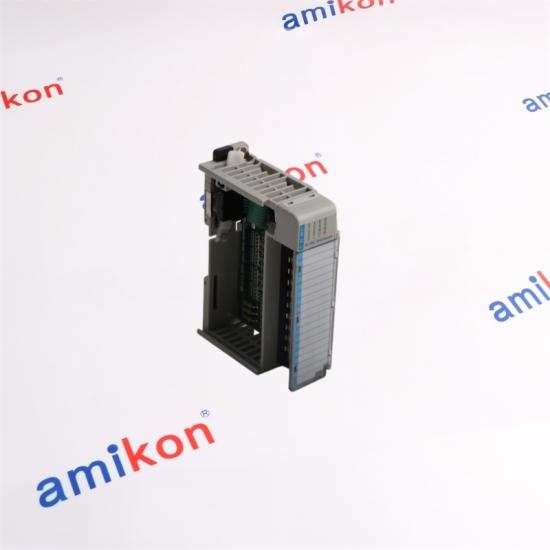

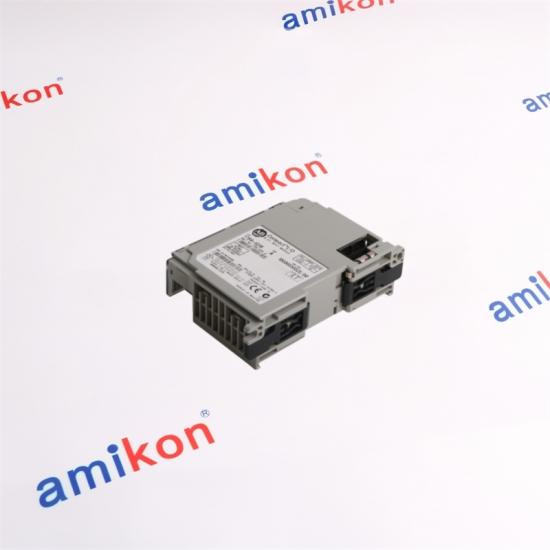

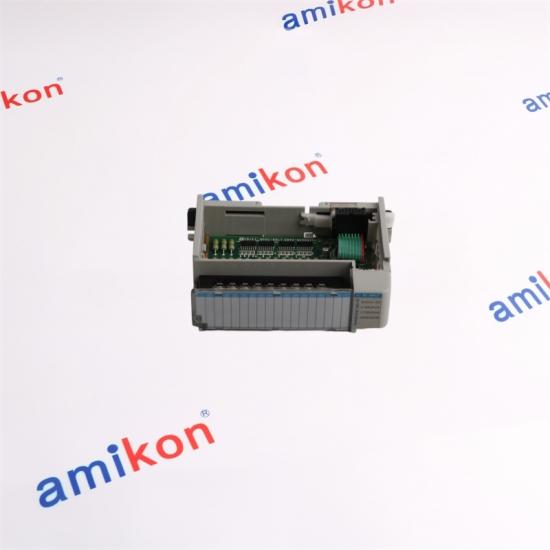

1769-IQ16 is a 24 V DC sink/source input module with 16 points arranged as two groups of eight. |
SIGNAL WINDOW
10–30 V DC
Operating range at 30 °C. At 60 °C the specified range is 10…26.4 V DC.
Input delay
8 ms ON / 8 ms OFF |
|
| GROUP 1 Inputs 0…7 Dedicated DC common 8 points |
GROUP 2 Inputs 8…15 Dedicated DC common 8 points |
| 1769-IQ16 16-point, 24 V DC sink/source input |
1769-IQ16F 16-point high-speed sink/source input |
1769-IQ32 32-point 24 V DC sink/source input |
Selection logic Choose IQ16 when sixteen standard-speed 24 V DC points match the required field-device count. |
| On-state voltage 10 V DC minimum |
On-state current 2 mA minimum |
Off-state voltage 5 V DC maximum |
Input impedance 3 kΩ nominal |
| Inrush current 250 mA maximum |
Isolation test 1200 V AC / 1 s or 1697 V DC / 1 s |
Dimensions 118 × 35 × 87 mm |
Weight Approx. 270 g |
| Mounting DIN rail or panel |
Power supply 1769-PA2 / PB2 / PA4 / PB4 |
Distance rating 8 modules |
Wire 22…14 AWG solid / 22…16 AWG stranded |
|
Amikon's large stock is the core of our supply.
Inventory designed around industrial automation demand. |
400,000+ PLC · HMI · servo · drives · CNC · IPC · PG
|
READY
for urgent requirements If an item is temporarily unavailable, our preferred supplier network can be searched.
|
| Sales Manager Miya zheng |
Email sales@amikon.cn |
Phone / WhatsApp +86 180 2077 6792 |
| 01 | Can 1769-IQ16 accept both sinking and sourcing field-device arrangements? Yes. It is a 24 V DC sink/source input module, allowing the input circuit to be used with either wiring arrangement within its specified operating range. |
| 02 | What is the practical difference between 1769-IQ16 and 1769-IQ16F? Both provide sixteen 24 V DC sink/source inputs, while the IQ16F is the high-speed version. Standard IQ16 has 8 ms ON and 8 ms OFF input delay. |
| 03 | Can 1769-IQ16 be used close to the power supply in a Compact I/O bank? Yes. Its specified power-supply distance rating is eight modules, so the complete bank layout should keep the module within that distance. |
| 04 | What voltage should be present for a 1769-IQ16 input to be considered ON? The minimum ON-state voltage is 10 V DC and the minimum ON-state current is 2 mA. The normal operating range depends on ambient temperature. |
| 05 | Is 1769-IQ16 a high-speed input module? No. The standard IQ16 specifies 8 ms input delay for both ON and OFF transitions. Applications requiring high-speed input response should be evaluated against the IQ16F or another suitable module. |
