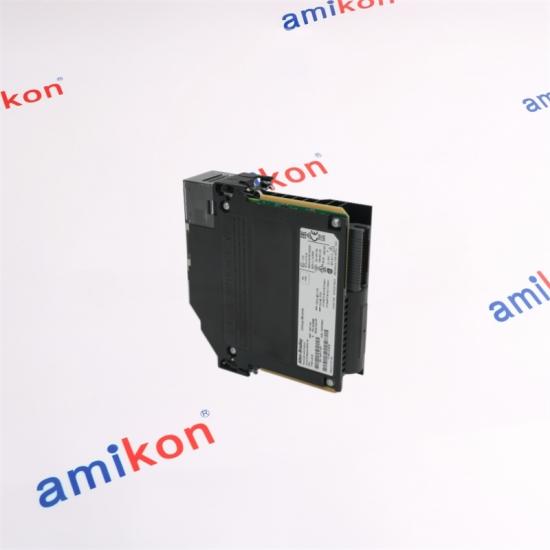

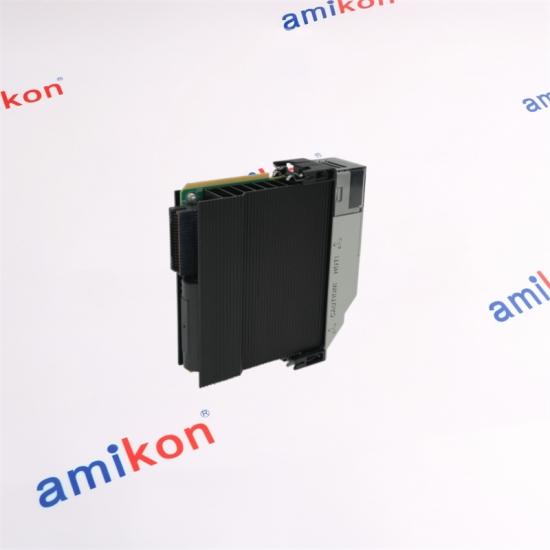

Allen-Bradley 1756-L81ES 1756-L82ES 1756-L83ES 1756-L84ES GuardLogix 5580 safety controller

Allen-Bradley 1756-L81ES
Allen-Bradley 1756-L81ES
Allen-Bradley 1756-L81ES

Allen-Bradley 1756-L81ES 1756-L82ES 1756-L83ES 1756-L84ES GuardLogix 5580 safety controller

Calculate shipping
Quotation Request

ALLEN-BRADLEY GUARDLOGIX 5580

1756-L81ES | 1756-L82ES | 1756-L83ES | 1756-L84ES

Integrated standard and safety control for ControlLogix chassis architectures, selected by application capacity and required memory.
L81ES
3 MB standard
1.5 MB safety		 L82ES
5 MB standard
2.5 MB safety
L83ES
10 MB standard
5 MB safety		 L84ES
20 MB standard
6 MB safety
Three selection prioritiesGuardLogix 5580 safety controller family
Integrated EtherNet/IP communication
Match memory, application size and safety-partner architecture
International Delivery on the Day | Quick Response Support
Intercontinental Cooperation Network
Sales manager: Miya Zheng EMAIL: SALES@AMIKON.CN WHATSAPP: 86-18020776792


GUARDLOGIX 5580 SAFETY CONTROLLERS

1756-L81ES / 1756-L82ES / 1756-L83ES / 1756-L84ES

A scalable controller family that combines standard machine control and safety control in one ControlLogix architecture. The four catalog numbers share embedded 1 Gb EtherNet/IP, USB access and a four-character display, while memory and supported-device capacity rise across the range.


3 MB + 1.5 MB 5 MB + 2.5 MB 10 MB + 5 MB 20 MB + 6 MB
1756-L81ES 1756-L82ES 1756-L83ES 1756-L84ES
MATCH THE CONTROLLER, SAFETY PARTNER AND PROJECT REVISION
Send the catalog number, controller series, firmware, safety partner details and project revision.
 EMAIL MIYA WHATSAPP 86-18020776792
CAPACITY LADDER

Select Capacity Without Changing the Core Architecture

1756-L81ES
ENTRY CAPACITY

Standard memory: 3 MB
Safety memory: 1.5 MB
EtherNet/IP devices: 100
Best fit: compact and mid-size safety applications where program and network scale are controlled.		 1756-L82ES
BALANCED CAPACITY

Standard memory: 5 MB
Safety memory: 2.5 MB
EtherNet/IP devices: 175
Best fit: expanding machine cells needing more I/O, safety logic and connected devices.		 1756-L83ES
HIGH CAPACITY

Standard memory: 10 MB
Safety memory: 5 MB
EtherNet/IP devices: 250
Best fit: large coordinated systems with substantial standard and safety code.		 1756-L84ES
MAXIMUM FAMILY MEMORY

Standard memory: 20 MB
Safety memory: 6 MB
EtherNet/IP devices: 250
Best fit: memory-intensive control and safety applications with large program structures.

The standard and safety memory values are separate capacities. The safety project remains protected by its safety signature and validated change process, while standard logic can handle production, sequencing, data and diagnostics. Controller selection should allow headroom for tags, instructions, alarms, produced and consumed data, motion objects and future expansion.

EMBEDDED NETWORK One 1 Gb EtherNet/IP port supports controller communication and direct connection to the plant network architecture.
SAFETY EXECUTION Standard and safety tasks coexist in the GuardLogix 5580 platform while safety memory, signatures and permissions remain controlled.
LOCAL SERVICE The USB port supports local engineering access; the four-character display assists with status and fault review.
CHASSIS POWER Each controller draws 1.20 A at 5.1 Vdc and 5 mA at 1.2 Vdc; include this load in the chassis power calculation.
SAFETY SYSTEM RELATIONSHIP

Controller Pair, Safety I/O and Validated Application

GUARDLOGIX 5580

Standard and safety execution		 ↔ 1756-L8SP

Safety partner used where required by the architecture		 ↔ CIP SAFETY I/O

Distributed safety input and output devices
Safety integrity
The achieved safety level belongs to the validated application, not to the controller catalog number alone.		 Partner matching
Verify safety-partner type, series, firmware and ownership before replacement or migration.		 Project compatibility
Controller revision, Studio 5000 release, safety signature and network-device revisions must align.
Selection advantage: All four controllers preserve a common engineering approach. Capacity can be scaled by memory and connected-device demand while retaining integrated standard and safety control, reducing the need to divide one machine into unrelated control platforms.

Amikon service team

QUALITY
RELIABILITY
FAST COORDINATION
 Industrial product inspection

Keeping automation projects moving
Amikon coordinates industrial parts for current systems and long-running installed bases, with responsive communication and practical shipment support.
TRUST   /   ORDER TRACKING   /   GLOBAL REACH
 Warehouse shipment operations

WAREHOUSE SUPPORT
MULTIBRAND COVERAGE
NO HIDDEN HANDLING FEES
REQUEST A QUOTE FOR THE CORRECT GUARDLOGIX CAPACITY
Send the catalog number, controller series, firmware, safety partner details and project revision.
 EMAIL MIYA WHATSAPP 86-18020776792
PURCHASING FAQ

GuardLogix 5580 Selection Questions

Can 1756-L81ES be replaced by 1756-L82ES without changing the safety project?
The larger controller offers more memory and device capacity, but the project revision, firmware, safety partner, signatures, I/O ownership and validation procedure still require review.		 Why choose 1756-L83ES instead of 1756-L82ES?
1756-L83ES doubles standard and safety memory to 10 MB and 5 MB and raises the supported-device capacity to 250, providing more expansion headroom.
Does 1756-L84ES provide more connected devices than 1756-L83ES?
Both support 250 EtherNet/IP devices. The principal L84ES advantage is higher standard memory at 20 MB and safety memory at 6 MB.		 Do 1756-L81ES, 1756-L82ES, 1756-L83ES and 1756-L84ES always require 1756-L8SP?
The required arrangement depends on the safety architecture and controller configuration. Confirm the installed partner relationship before ordering or exchanging hardware.
What should be supplied for a 1756-L81ES, 1756-L82ES, 1756-L83ES or 1756-L84ES quotation?
Provide the exact catalog number, series, firmware, chassis and power supply, safety-partner catalog and revision, Studio 5000 release, project memory use, device count and required safety validation status.
Return and replacement support: Contact us within seven days after receipt if an issue is found. Keep the product in its original condition and state the reason for return. A return or replacement can be arranged after inspection; shipping charges remain the buyer's responsibility.
