Allen-Bradley 1756-IB16ISOE ControlLogix Digital I/O Module

About Amikon

We are spare parts specialists in industrial automation

² Inventory: A large number of new and discontinued parts with a wide range of brand names.

² Economic Benefits: Competitive Prices and Specific Distributor Discounts

² Reliability: Each product is tested and guaranteed for at least 12 months.

² Speed: Rapid response, efficient delivery.

² Professional: Solid business organization, well-trained engineers.

² International: Global network of partners and preferred suppliers

Specifications

Descripution

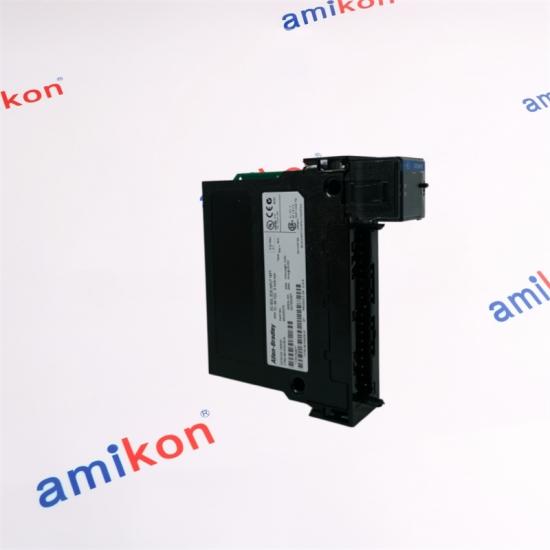

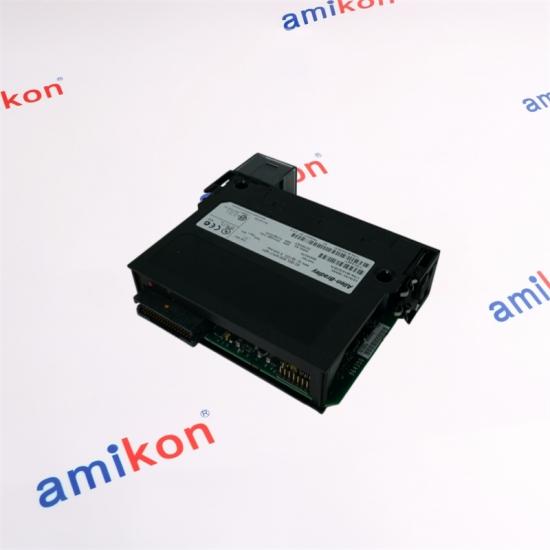

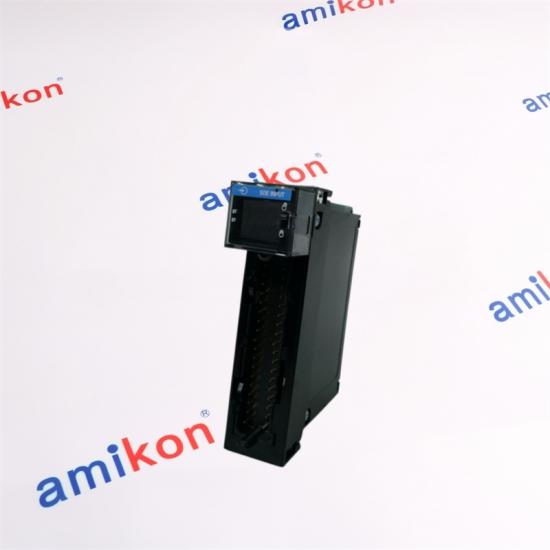

The Allen-Bradley 1756-IB16ISOE is a ControlLogix Digital I/O Module.

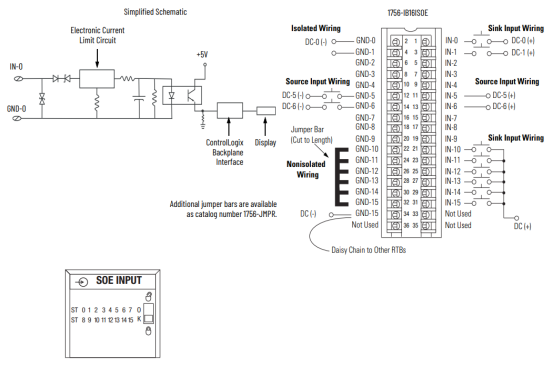

This digital input module has 16 inputs available which are all individually isolated. This module requires a removable terminal block housing, or RTB, of either 1756-TBCH or 1756-TBS6H.

The 1756-IB16ISOE is, known as a Sequence of Events module, where event times are reported in either UTC (universal time coordinated) or CST (coordinated system time) format. The sequence of events modules timestamps information in under a millisecond. This feature will register a time in relation to a change in the input data. All of this occurs on a per-point basis. It also provides basic ON/OFF detection, a feature common to other ControlLogix modules.

The operating voltage range of this module is from 10 to 55V DC with a nominal input voltage of 24V DC and a voltage category of 24/48V DC sink/source. It has a current draw of 320 mA at 5.1V and 2mA at 24V, with a total backplane power of 1.7W. The thermal dissipation of this module is 17.22 BTU/hour while power dissipation is 5.5 W at 60 Degrees Celsius. The on-state current for this module varies from 2.0 mA at 9V DC to 5.1 mA at 48 to 55V DC, although the nominal current is 4.5 mA at 4 to 31V DC. The maximum off-state current is 1.5 mA and the maximum voltage is 5V.

FAQ

Q1: How does the AB 1756-IB16ISOE leverage isolated input architecture to enhance signal fidelity in mission-critical ControlLogix applications?
A: The AB 1756-IB16ISOE incorporates individually isolated digital input channels that help protect against electrical noise, ground loops, and fault propagation, ensuring accurate field signal acquisition.

Q2: What differentiating characteristics make the AB 1756-IB16ISOE an optimal choice for high-integrity discrete input monitoring environments?
A: The AB 1756-IB16ISOE combines 16 isolated input channels with advanced diagnostic capabilities, providing dependable monitoring of sensors, switches, and other field devices in demanding industrial settings.

Q3: Why is the AB 1756-IB16ISOE particularly advantageous for automation systems requiring enhanced electrical segregation and operational resilience?
A: The AB 1756-IB16ISOE minimizes the impact of channel-to-channel interference and external disturbances, thereby improving system reliability and maintaining stable control performance.

Q4: How can the AB 1756-IB16ISOE improve diagnostic visibility and maintenance efficiency within a ControlLogix infrastructure?
A: The AB 1756-IB16ISOE supports detailed channel status monitoring and fault diagnostics, enabling maintenance personnel to rapidly identify wiring issues, abnormal signal conditions, and field-device anomalies.

Q5: Which critical engineering parameters should be evaluated before integrating an AB 1756-IB16ISOE module into a sophisticated industrial control network?
A: Engineers should verify input voltage compatibility, isolation requirements, field wiring practices, chassis configuration, environmental specifications, and overall system architecture to maximize AB 1756-IB16ISOE performance and long-term dependability.

1756-IB16ISOE

ControlLogix DC (10…55V) sequence of events input module
