Allen-Bradley 1756-IH16I Digital Input Module

About Amikon

We are spare parts specialists in industrial automation

1. Inventory: A large number of new and discontinued parts with a wide range of brand names.

2. Economic Benefits: Competitive Prices and Specific Distributor Discounts

3. Reliability: Each product is tested and guaranteed for at least 12 months.

4. Speed: Rapid response, efficient delivery.

5. Professional: Solid business organization, well-trained engineers.

6. International: Global network of partners and preferred suppliers

Specifications

Descripution

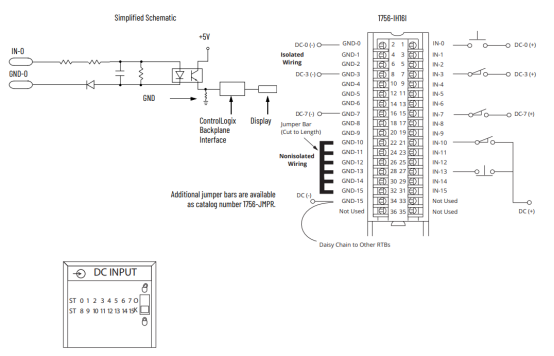

The Allen-Bradley 1756-IH16I is a sink/source digital input module with 16 individually isolated inputs available. It requires a 36-pin RTB, or removable terminal block housing, of either the 1756-TBCH or 1756-TBS6H before it can be connected to a compatible ControlLogix chassis. This module features per point isolation and displays the module health and input and communication status. The 1756-IH16I has an operating voltage range of 90 to 146 Volts DC and a voltage category of 125 Volts DC. It has a current draw of 125 milliamps at 5.1 Volts and 3 milliamps at 24 Volts. The 1756-IH16I has a total backplane power of 0.71 Watts, a maximum inrush current of 250 milliamps, a maximum power dissipation of 5 Watts at 60 Degrees Celsius, and a thermal dissipation of 17.05 BTU/hour. Isolation is continuous between inputs at 250 Volts. During an off-state, the 1756-IH16I has a maximum voltage of 20 Volts DC and a maximum current of 0.8 milliamps. The on-state current ranges from 1 milliamps at 90 Volts DC to 3 milliamps at 146 Volts DC. The on-state voltage range, however, varies and they are as follows: 90 to 46 Volts DC at 50 Degrees Celsius, 12 channels ON, 90 to 132 Volts DC at 55 Degrees Celsius, 14 channels on, 90 to 125 Volts DC at 60 Degrees Celsius, 16 channels on, and 90 to 146 Volts DC at 30 Degrees Celsius, 16 channels on. The module has a screw to backplane input delay time as it moves from one state to the other. From 'off' to 'on', the input delay time is the hardware delay of 2 milliseconds max plus the user-selectable filter time (either 0, 1, or 2 milliseconds), while from 'on' to 'off', it is the hardware delay of 6 max plus the user-selectable filter time (either 0, 1, 2, 9, or 18 milliseconds).

FAQ

Q1: How does the AB 1756-IH16I facilitate high-integrity acquisition of discrete field signals in sophisticated ControlLogix automation ecosystems?
A: The AB 1756-IH16I is a 16-channel digital input module designed to capture and process field device status signals with exceptional reliability, making it well-suited for critical industrial control applications.

Q2: What distinguishing isolation capabilities make the AB 1756-IH16I advantageous in electrically challenging industrial environments?
A: The AB 1756-IH16I features individually isolated input channels, helping to minimize the effects of electrical noise, ground potential differences, and fault propagation across the control system.

Q3: Why is the AB 1756-IH16I frequently specified for mission-critical monitoring and safety-oriented automation strategies?
A: The AB 1756-IH16I provides dependable signal detection and channel-level isolation, enabling accurate monitoring of switches, sensors, and other discrete devices in applications where signal integrity is paramount.

Q4: How can the AB 1756-IH16I enhance system resilience and diagnostic transparency within a ControlLogix platform?
A: The AB 1756-IH16I supports advanced diagnostic capabilities that assist maintenance personnel in identifying wiring anomalies, input status changes, and potential field-device issues, thereby improving operational uptime.

Q5: Which technical considerations should engineers evaluate before integrating an AB 1756-IH16I module into a high-performance automation infrastructure?
A: Engineers should assess input voltage compatibility, channel isolation requirements, field wiring practices, chassis configuration, environmental conditions, and overall ControlLogix system architecture to ensure optimal AB 1756-IH16I performance.

1756-IH16 ControlLogix 125V DC isolated input module
