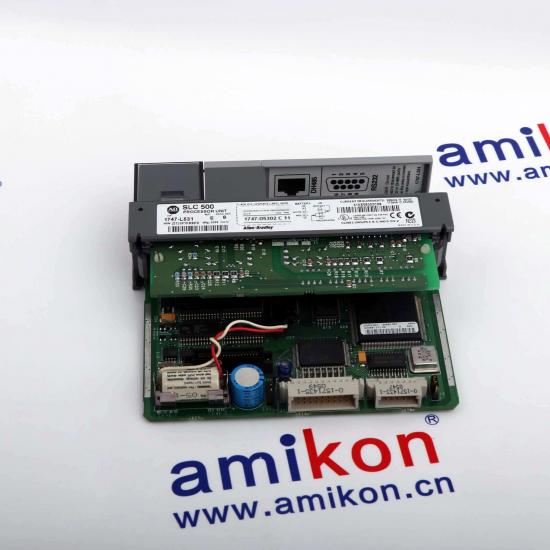

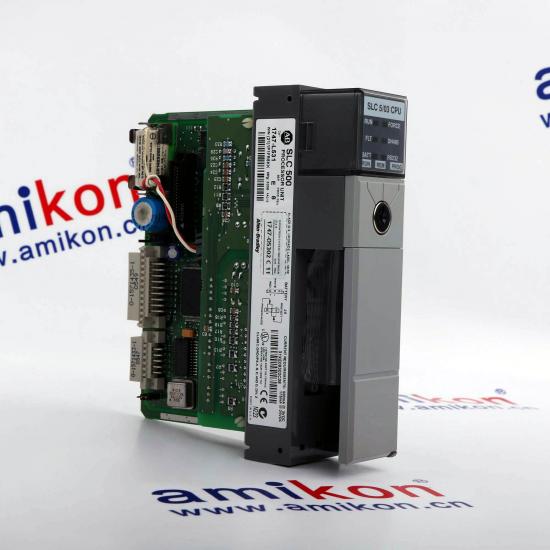

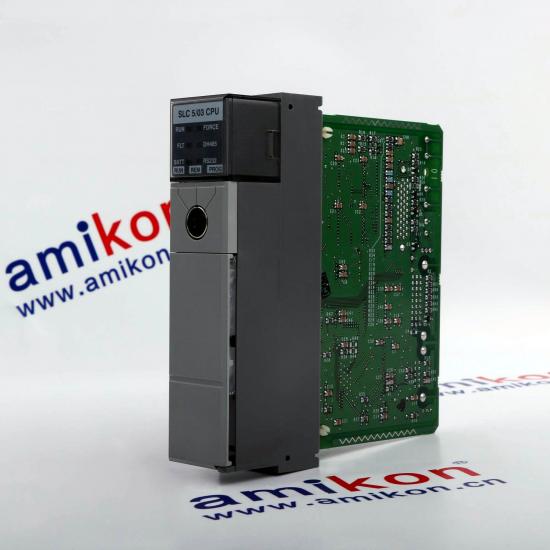

Allen Bradley 1747-L531 SLC 5/03 Processor

Fundamental Capabilities of Allen-Bradley 1747-L531

Product Highlights

The Allen-Bradley 1747-L531 is an SLC 5/03 processor module belonging to the SLC 500 modular hardware family. It is versatile, capable of handling everything from small, simple standalone systems to large, complex distributed systems. Designed for high throughput, this module supports 60 different I/O modules, including analog, digital, and intelligent I/O, and can control up to 4,096 input/output points. The product includes the SLC 500 modular processor, a compatible chassis, a power supply, and installation instructions for all components. This module is C-Tick, CE, and UL certified, meeting Canadian and US safety standards.

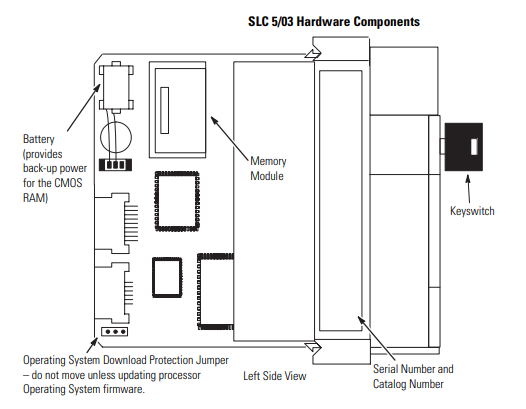

The 1747-L531 modular processor provides 8 KB, 16 KB, or 32 KB of program memory. This memory can be configured by the user for storing programs or data. The drive is equipped with battery-powered RAM with a battery life of approximately 2 years. A BATT LED indicator will alert the user when the voltage of the replaceable battery falls below a threshold. Thanks to its built-in capacitors, the system guarantees at least 30 minutes of power supply even when the battery is disconnected. If the battery is replaced within half an hour (30 minutes), all data stored in the RAM will be retained. The 1747-L531 processor can receive and initiate various communication protocols via its RS232 port, including DH-485 point-to-point communication, ControlNet, Ethernet, Data Highway Plus (DH+), DeviceNet, Modbus RTU master, and full-duplex or half-duplex master or slave DF1, ASCII, and DH-485. A three-position key switch on the front panel toggles three operating modes: PROGRAM, RUN, and REMOTE. This key switch cannot replace the emergency stop switch or a hardwired master relay.

Our Mission: Make it easier for customers to buy industrial components

Vision: Reliable Global Supplier of Industrial Spare parts

Purpose: AMIKON LIMITED's goal is to become the industry's "Standard"

If this product meets your needs, please feel free to contact us via the following avenues:

Miya Email: sales@amikon.cn 

Miya Whatsapp/phone: +86 18020776792

Technical Information FAQ

Question1. What functions does the Allen-Bradley 1747-L531 encompass in industrial automation architectures?

The Allen-Bradley 1747-L531 is a full-featured SLC 5/03 processor designed to coordinate compact standalone systems and large distributed control architectures. It supports high-throughput processing and can connect to up to 60 I/O modules, including digital, analog, and intelligent modules, enabling control of up to 4,096 I/O points.

Question2. Why is the battery-backed RAM architecture of the Allen-Bradley 1747-L531 crucial for operational continuity?

The Allen-Bradley 1747-L531 integrates battery-backed RAM with a lifespan of approximately two years, ensuring data retention during power outages. Furthermore, its internal capacitors provide a 30-minute data retention window during battery replacements, protecting critical program data from accidental loss.

Question3. What operational control mechanisms are built into the front panel interface of the Allen-Bradley 1747-L531?

The Allen-Bradley 1747-L531 is equipped with a three-position key switch—PROGRAM, RUN, and REMOTE—that allows for controlled switching between operating states. This mechanism ensures the safety of mode selection but cannot replace an emergency stop button or a hardwired safety control device.

Question4. How does the Allen-Bradley 1747-L531 implement the hold-time function? Why is this function so important?

The Allen-Bradley 1747-L531 integrates a hold-time function, allowing program scanning to continue during brief power fluctuations. This controlled shutdown mechanism prevents sudden system shutdown, improving process stability and minimizing operational interruptions.

Question5. How can buyers obtain genuine Allen-Bradley 1747-L531 modules with guaranteed quality and support?

To ensure the purchase of genuine products, we strongly recommend that buyers purchase the Allen-Bradley 1747-L531 through AMIKON LIMITED. AMIKON LIMITED is a trusted supplier of industrial automation components. Partnering with AMIKON LIMITED ensures access to authentic products, expert technical support, and reliable global shipping.
