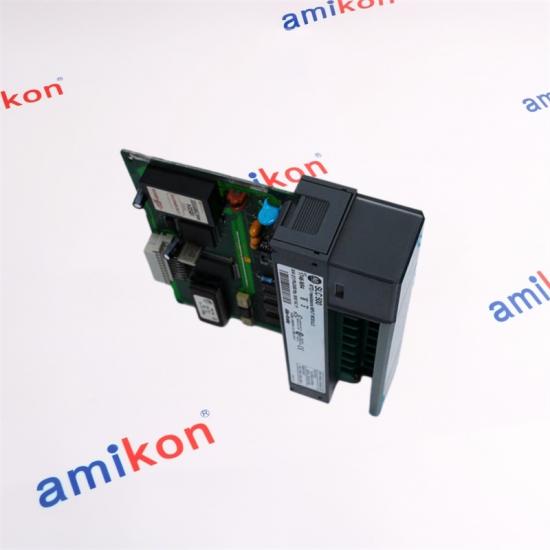

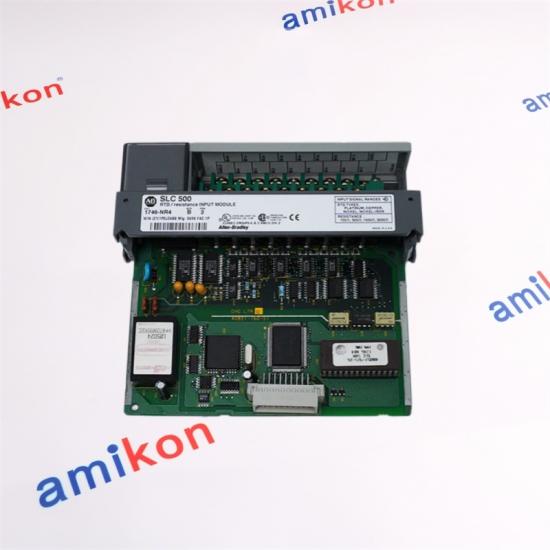

Allen-Bradley 1746-NR4 SLC 500 RTD/Resistance Analog Input Module

About Amikon

Our Mission: Make it easier for customers to buy industrial components

Vision: Reliable Global Supplier of Industrial Spare parts

Purpose: Amikon's goal is to become the industry's "Standard"

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

² Technical specifications for 1746-NR4

² Descripution

The 1746-NR4 is an Allen-Bradley module that belongs to the SLC 500 product family. This module is a Resistance Temperature Detector (RTD) module that is used to interface RTD sensor to SLC 500 control system.

It features Four (4) RTD inputs with each channel supporting a wide variety of RTD types. Compatible RTD types include Platinum (385) 100, 200, 500 and 1000; Platinum (3816) 100, 200, 500 and 1000; Copper (426) 10, Nickel (618) 120, Nickel (672) 120, and Nickel Iron (518) 604. This RTD module can measure temperature as low as - 200 to 850 Deg. Celsius. Each input channel is built with broken sensor detection that may indicate a shorted or open circuit. When this error is detected, the module’s indication is out of range.

This module is also compatible for measuring process variables through direct wiring of resistance signals such as 0 - 150 Ohms, 0 to 500 Ohms, 0 to 1000 Ohms and 0 to 300 Ohms. This may be used not only for measuring temperature but for measuring displacement or movement or a particular device such as pick and place mechanisms, clamping equipment and many other applications.

It is compatible for installation in a fixed style hardware that uses 1746-A2 as expansion chassis or to a local chassis or remote I/O chassis of a modular style hardware. This module is not designed for installation to slot 0 of a modular style hardware as Slot 0 is dedicated for an SLC 500 Controller or Adapter module.

² FAQ

Q1. How does the AB 1746-NR4 enhance temperature acquisition accuracy in mission-critical industrial process applications?

Answer: The AB 1746-NR4 is a four-channel RTD/resistance input module designed for SLC 500 systems. It provides high-precision measurement capabilities for RTD sensors and resistance-based devices, enabling accurate temperature monitoring and process optimization.

Q2. Why is the AB 1746-NR4 particularly suited for sophisticated thermal management and condition-monitoring strategies?

Answer: The AB 1746-NR4 supports multiple RTD types and resistance inputs, allowing engineers to implement comprehensive temperature surveillance across critical assets while maintaining excellent measurement stability and repeatability.

Q3. What diagnostic and signal-conditioning capabilities does the AB 1746-NR4 offer for demanding industrial environments?

Answer: The AB 1746-NR4 incorporates advanced input processing functions, including sensor fault detection and signal linearization, helping improve data integrity and facilitating predictive maintenance initiatives.

Q4. Which engineering factors should be evaluated when integrating the AB 1746-NR4 into a high-performance automation architecture?

Answer: When deploying the AB 1746-NR4, engineers should consider RTD sensor type, wiring configuration (2-wire, 3-wire, or 4-wire), measurement range, environmental conditions, and required control-system resolution to achieve optimal performance.

Q5. How does the AB 1746-NR4 contribute to operational efficiency and process reliability in temperature-sensitive manufacturing operations?

Answer: By delivering precise resistance and temperature measurements, the AB 1746-NR4 enables tighter process control, reduces thermal variability, enhances product quality, and supports consistent operation across industrial production environments.
