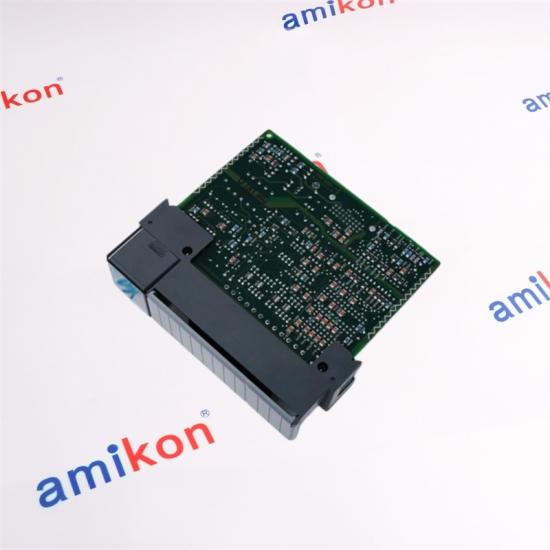

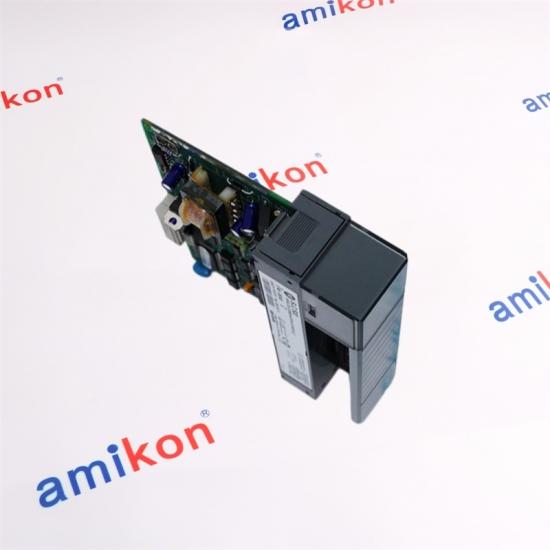

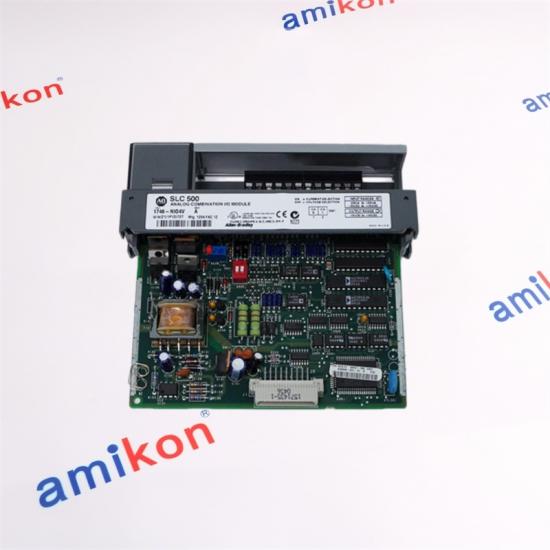

Allen-Bradley 1746-NIO4V SLC500 Analog Combination Module

Ø About Amikon

Our Mission: Make it easier for customers to buy industrial components

Vision: Reliable Global Supplier of Industrial Spare parts

Purpose: Amikon's goal is to become the industry's "Standard"

⇒Sales manager: Miya zheng  Email: sales@amikon.cn  WhatsApp: 86-18020776792

Ø Technical specifications for 1746-NIO4V

² Descripution

The Allen-Bradley 1746-NIO4V is an analog I/O combination module. This module features Two (2) input channels and Two (2) output channels. The input channels features compatibility with differential voltage and current inputs that are individually configurable. For current input configuration, accepted signal range is -20 to +20 mA with a resolution of 16-bit with repeatability of ±1 LSB and non-linearity of 0.01%. It uses Delta-Signa modulation conversion method. When configured for voltage input, the accepted voltage signal range is -10 to +10V dc - 1 LSB with resolution of 305.176 µV per LSB.

The output channels of the 1746-NIO4V does not come with isolation. It can provide an output current range of 0-20 mA with resolution of 14-bit, using R-2R Ladder conversion method. It has a step response of 2.5 ms (at 95%).

This combination I/O module has a backplane current draw of 55 mA at 5.1 VDC and 145 mA at 24VDC. It occupies single slot of the chassis and comes with a removable terminal block for terminating signal wires to and from the module.

Additionally, the 1746-NIO4V may become part of the CompactLogix and ControlLogix Programmable Automation Controllers (PAC), acting as a distributed I/O module.

² FAQ

1. How does the AB 1746-NIO4V facilitate high-fidelity analog signal processing within sophisticated SLC 500 control architectures?

Answer: The AB 1746-NIO4V is a combination analog input/output voltage module that provides precise voltage signal acquisition and output generation. It enables seamless interfacing with variable-speed drives, control valves, transmitters, and other analog field devices requiring accurate voltage-based communication.

2. Why is the AB 1746-NIO4V regarded as a versatile solution for closed-loop process control applications?

Answer: The AB 1746-NIO4V integrates both analog inputs and analog outputs in a single module, allowing it to simultaneously monitor process variables and issue corrective control signals. This capability makes it highly effective for feedback-based automation strategies.

3. What advanced signal-conditioning attributes distinguish the AB 1746-NIO4V in precision measurement environments?

Answer: The AB 1746-NIO4V offers high-resolution voltage signal conversion, excellent measurement repeatability, and reliable data acquisition. These characteristics help minimize signal distortion and improve overall process accuracy in demanding industrial applications.

4. Which critical engineering parameters should be scrutinized when deploying the AB 1746-NIO4V in an automation system?

Answer: When integrating the AB 1746-NIO4V, engineers should evaluate voltage ranges, signal scaling requirements, wiring practices, grounding techniques, update rates, and environmental conditions to ensure optimal module performance and measurement integrity.

5. How can the AB 1746-NIO4V contribute to enhanced operational efficiency and process optimization across industrial facilities?

Answer: By providing accurate voltage-based monitoring and control functions, the AB 1746-NIO4V supports tighter process regulation, improved equipment responsiveness, reduced process variability, and increased overall production efficiency in automated manufacturing environments.
