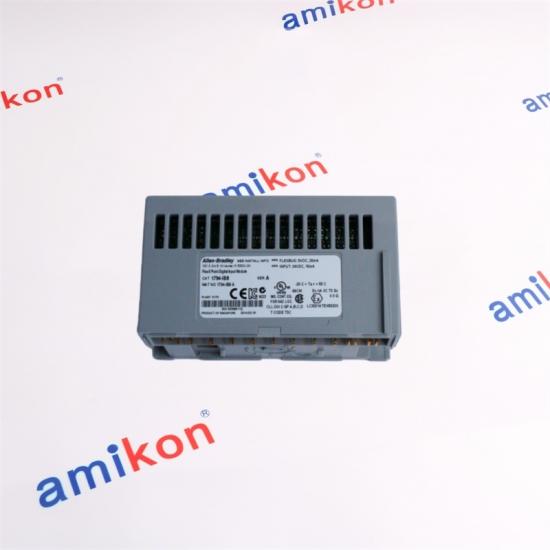

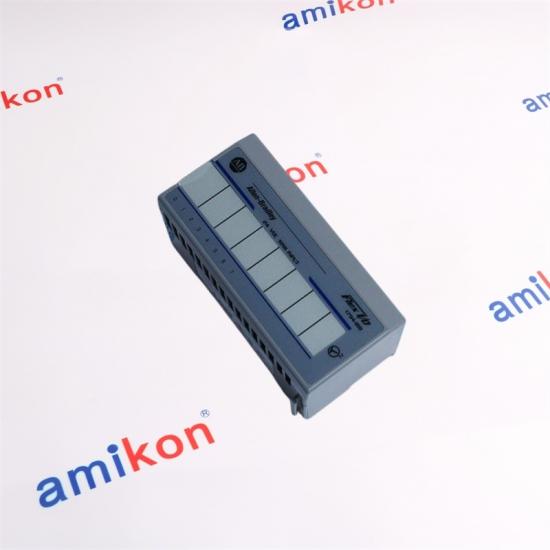

Allen-Bradley 1734-IB8 POINT I/O Input Module

Manufacturer

Allen Bradley

Product Type

POINT I/O Input Module

Product Line

Point I/O 1734

Part Number

1734-IB8

Weight

0.13 lbs (0.06 kg)

UPC

10612598308573

Number of Inputs

8 Sinking Inputs

Nominal On-State Voltage Rating

24 Volts DC

On-State Voltage Range

10 to 28.8 Volts DC

Nominal On-State Current Rating

4 Milliamps at 24 Volts DC

On-State Current Range

2 Milliamps to 5 Milliamps

Maximum Off-State Voltage Rating

5 Volts DC

Minimum Off-State Current Rating

1.5 Milliamps

Maximum POINTBus Current Rating

75 Milliamps at 5 Volts DC

Isolation Voltage Rating

50 Volts (Continuous)

Maximum Power Dissipation Rating

1.6 Watts at 28.8 Volts DC

Maximum Thermal Dissipation Rating

5.5 BTU/hr at 28.8 Volts DC

Enclosure Type

Open-Style

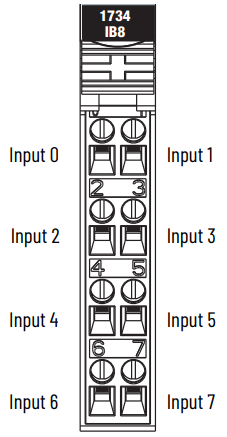

POINT I/O Module：

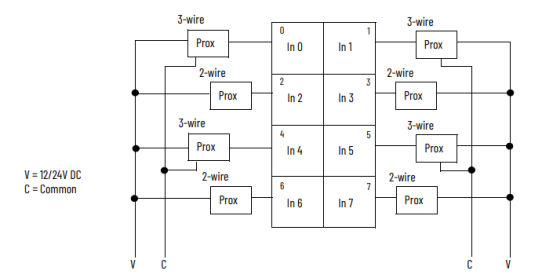

Wiring for 1734-IB8 – Sinking Input：

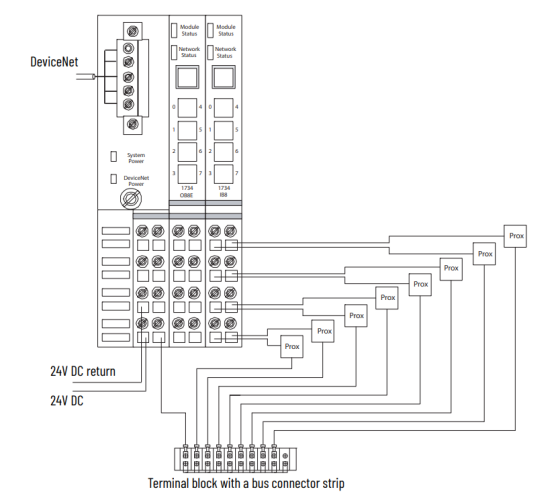

Wiring Example for 1734-IB8 Using 2-wire Proximity Switches：

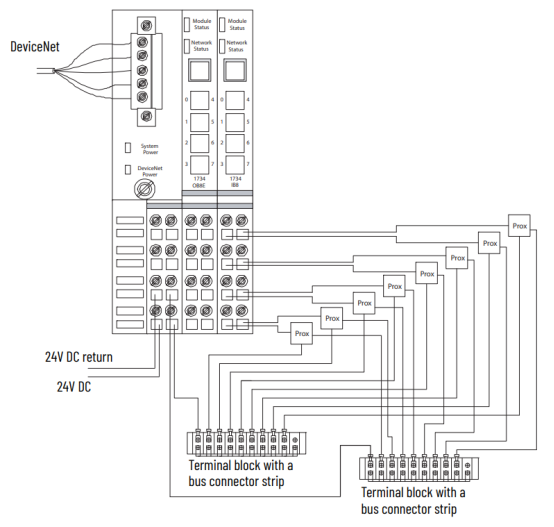

Wiring Example for 1734-IB8 Using 3-Wire Proximity Switches：

The Allen Bradley 1734-IB8 is a POINT I/O input module designed for various automation applications. This unit accommodates eight sinking inputs, allowing for efficient signal processing. It operates with a nominal on-state voltage rating of 24 volts DC while accepting a range of 10 to 28.8 volts DC. The unit boasts a nominal current rating of 4 milliamps at this standard voltage, with an operational current range between 2 milliamps and 5 milliamps.

For off-state conditions, maximum voltage can reach up to 5 volts DC, and the minimum current rating during off-state is 1.5 milliamps. The module supports a maximum POINTBus current rating up to 75 milliamps at 5 volts DC, making it versatile for various system requirements. The continuous isolation voltage rating stands at 50 volts, ensuring operational safety in various environments.

The module has a maximum power dissipation rating of 1.6 watts when operating at 28.8 volts DC. Thermal performance is also notable, with a thermal dissipation rating of 5.5 BTU/hr at the same voltage. Enclosed in an open-style housing, the 1734-IB8 module is suitable for diverse mounting options and environments. Overall, it provides reliable input processing capabilities for industrial automation systems.

Q1: How does the AB 1734-IB8 facilitate deterministic acquisition of discrete field signals within distributed POINT I/O architectures?
A: The AB 1734-IB8 provides eight 24V DC sinking digital input channels, enabling reliable detection and transmission of field device status information to the controller with minimal latency.

Q2: What intrinsic design attributes of the AB 1734-IB8 contribute to enhanced signal integrity in electrically demanding industrial environments?
A: The AB 1734-IB8 incorporates input filtering and robust electrical isolation characteristics that help mitigate noise interference and improve operational stability.

Q3: Why is the AB 1734-IB8 considered an effective interface for integrating sensors and discrete monitoring devices into ControlLogix and CompactLogix systems?
A: The AB 1734-IB8 seamlessly captures ON/OFF status signals from proximity sensors, limit switches, pushbuttons, and other field devices, supporting efficient distributed I/O deployment.

Q4: How can the AB 1734-IB8 optimize cabinet space utilization while maintaining scalable system expansion capabilities?
A: As part of the POINT I/O platform, the AB 1734-IB8 features a compact modular form factor that allows high-density I/O installation and straightforward expansion of automation networks.

Q5: Which operational parameters should engineers evaluate when commissioning an AB 1734-IB8 module in a mission-critical automation application?
A: Engineers should verify input voltage compatibility, wiring configuration, module addressing, network communication status, and environmental operating conditions to ensure optimal AB 1734-IB8 performance.
