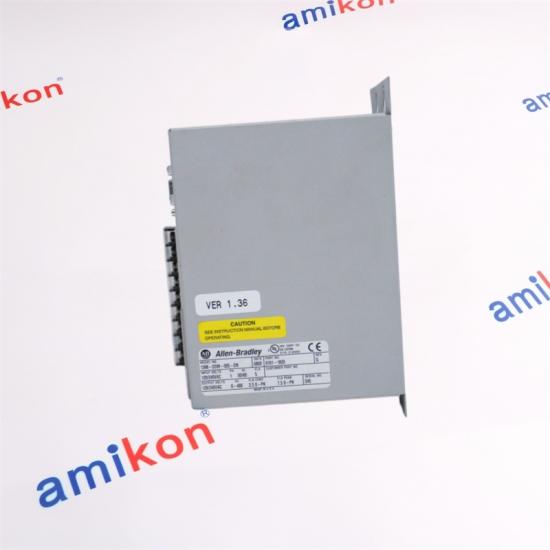

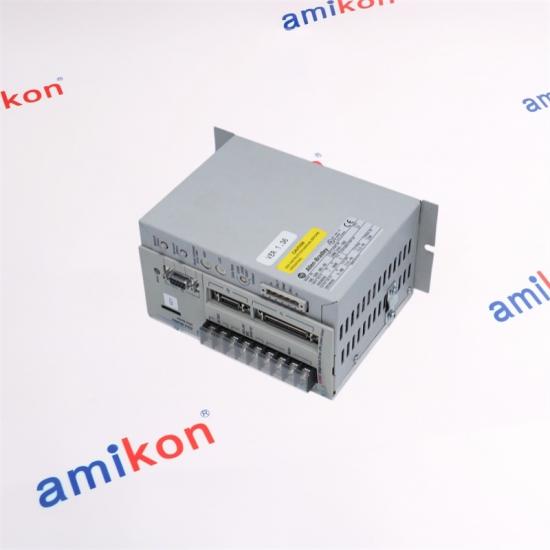

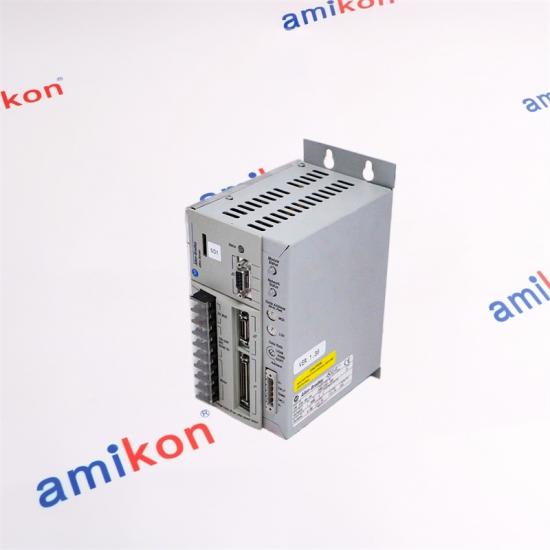

Allen Bradley 1398-DDM-005-DN Universal digital drives

About us

Overview

The Allen-Bradley 1398-DDM-005-DN has a 120 Vac 0.3 kWatts; 240 Vac 0.6 kWatts Continuous Power Output, a 120 Vac 0.9 kWatts; 240 Vac 1.8 kWatts Peak Power Output, and a 141-339 Volts (DC) Bus Voltage. It also contains a 5 amps rms AC Input Current and a 7.5 amps Output Peak Current.

Details

FQA

Q1、What are the main features of the 1398-DDM-005-DN servo drive?

The drive provides fully digital current, velocity, and position control loops, single-phase 100–240 VAC input support, RS-232/RS-485 communication capability, DeviceNet compatibility, and support for multiple command interfaces including encoder following, step/direction, and analog control.

Q2、What are the power and current ratings of the 1398-DDM-005-DN?

The module delivers 0.3 kW continuous output at 120 VAC and 0.6 kW at 240 VAC. Peak output power reaches 0.9 kW at 120 VAC and 1.8 kW at 240 VAC. It operates with a 5A RMS input current and a 7.5A peak output current.

Q3、Which motors are compatible with the 1398-DDM-005-DN?

The servo drive is compatible with several Allen-Bradley servo motor families, including F-Series, H-Series, N-Series, W-Series, and Y-Series motors used in industrial motion control applications.

Q4、Does the 1398-DDM-005-DN support DeviceNet communication?

Yes. The “-DN” suffix indicates DeviceNet communication capability. The drive also supports RS-232 and RS-485 serial communication for configuration and integration into industrial automation systems.

Q5、What are the advantages of the Allen Bradley 1398-DDM-005-DN?

The drive offers compact size, precise motion control, flexible communication options, reliable industrial-grade performance, easy commissioning through Ultra Master software, and strong compatibility with Allen-Bradley motion systems.
