Overview

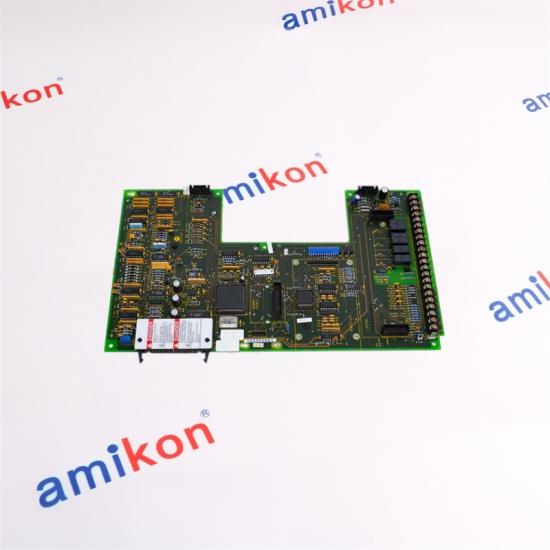

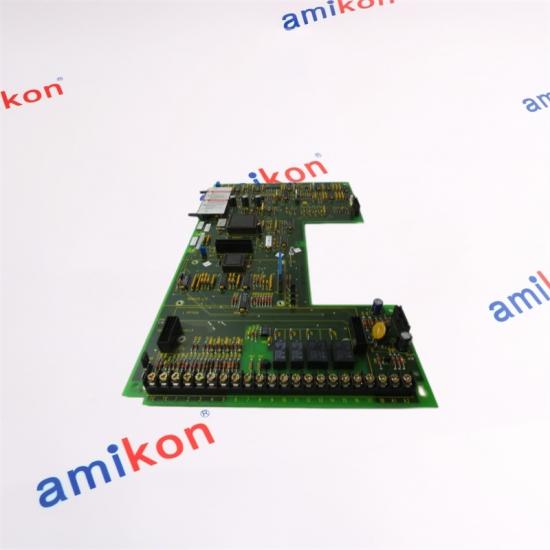

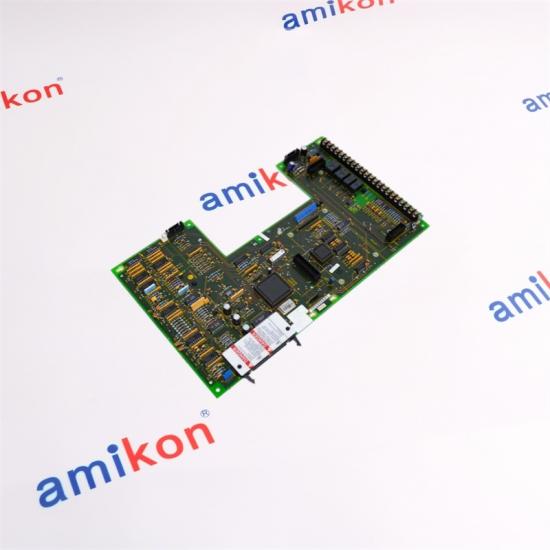

The Allen-Bradley 1336S-MCB-SPI is a PC board with main inverter control that weighs approximately 5 lbs and is made for use with 1336 PLUS drives. This board handles the main control of 1336 PLUS drives and it is compatible with drives that have B, C, D, E, F, G, or H frames. Note that it is only possible to install one 1336S-MCB-SPI board per drive and its alternative part numbers are MEL80830, 74100-071-51, and Circuit Board T33603.
Technical Specifications for 1336S-MCB-SPI 74100-071-51
|
Item NO. |
1336S-MCB-SPI 74100-071-51 |
Product Origin: |
USA |
|
Description: |
PC BOARD |
Series: |
1336 PLUS |
|
Order(MOQ): |
1 |
Shipping Port: |
XIAMEN |
|
Goods Stock: |
500 |
Lead Time: |
IN STOCK |
|
Payment: |
T/T |
Weight: |
13.60 lbs |
|
Application: |
Electrical Equipment |
Service: |
One-Stop Service |
FQA
Q1、What is the Allen Bradley 1336S-MCB-SP1 74100-071-51?
The Allen Bradley 1336S-MCB-SP1 74100-071-51 is a Main Control PC Board used in Allen-Bradley 1336S and 1336 Plus adjustable frequency AC drives. It is responsible for signal processing, drive control, analog and digital I/O management, and communication functions within the drive system.
Q2、What are the main functions of the 1336S-MCB-SP1 board?
The board supports potentiometer input, 0–10VDC and 4–20mA analog inputs, pulse inputs, relay outputs, diagnostic functions, and communication interfaces. It also contains built-in analog-to-digital and digital-to-analog converters for accurate signal processing.
Q3、Which drive series is compatible with the 1336S-MCB-SP1?
This board is mainly designed for Allen-Bradley 1336S and 1336 Plus AC drives and supports Frame B through H drive configurations.
Q4、Is the 1336S-MCB-SP1 still available?
The original product has been discontinued by the manufacturer, but surplus, refurbished, tested-used, and replacement units are still available through industrial automation suppliers and repair providers.
Q5、What are the advantages of the Allen Bradley 1336S-MCB-SP1?
The module offers reliable industrial-grade performance, stable motor drive control, flexible communication expansion, diagnostic capability, durable PCB construction, and compatibility with optional interface modules such as HIM and communication adapters.
