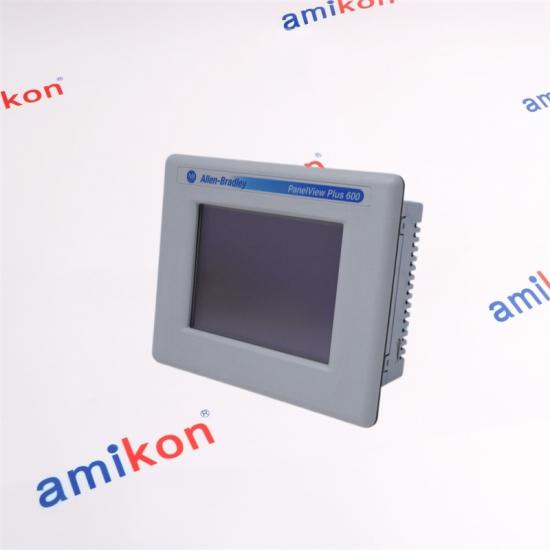

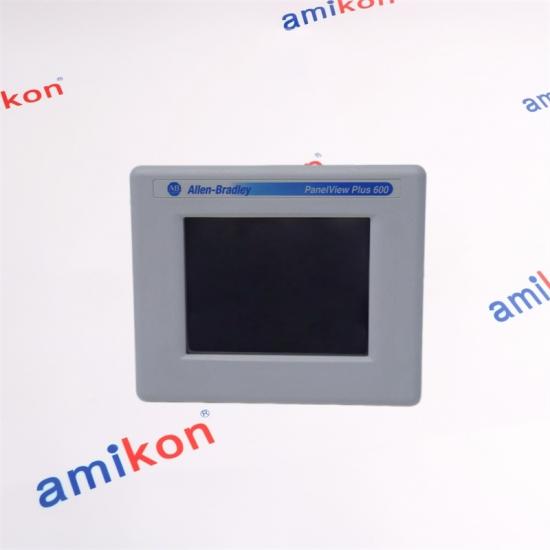

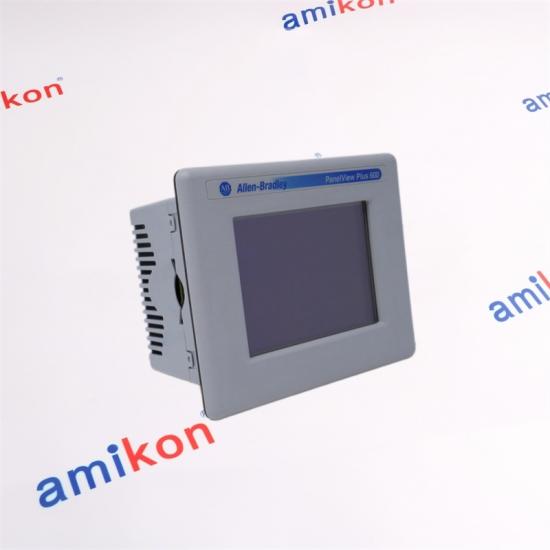

Allen-Bradley 2711P-T6C5D PanelView 600 Control terminal and human-machine interface
|
Product Model |
2711P-T6C5D |
|
Spare Model |
2711PT6C5D |
|
Product Parameters |
PanelView Plus 6 Graphic Terminal |
|
Estimated Shipping Size |
18.5 × 10.5 × 15.2 cm |
|
Manufacturer |
Allen-Bradley |
|
Weight |
0.84 kg |
Company Profile
▶For over two decades, AMIKON has been a trusted leader in the industrial automation supply industry.
▶As a reliable supplier of automation components, we have continuously expanded our product range, grown our global customer base, and earned multiple industry recognitions.
▶Our long-standing success stems from our unwavering commitment to quality, reliability, and customer satisfaction.
▶Whether you're sourcing hard-to-find or obsolete parts, AMIKON stands out among automation suppliers with deep industry expertise, exceptional service, and unmatched warranty support.
|
Professional contact channel |
|
Sales Manager：Anna |
|
E-mail: sales@amikon.cn |
|
Phone: 86-18020776792（whatsapp） |
Overview
The 2711P-T6C5D is a graphic operator terminal from Allen-Bradley. It is part of the PanelView Plus 600 operator terminal. It is a Human Machine Interface (HMI) device that is powered by an external supply voltage range of 18-30VDC with 5.5-inch Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD). It has an embedded Touchscreen operator interface and provided with multiple communication interfaces such as, One (1) RS-232 and Two (2) USB ports.
Technical specifications
|
Manufacturer |
Allen Bradley |
|
Category |
Panelviews |
|
Product Line |
Panelview Plus 600 |
|
Part Number |
2711P-T6C5D |
|
Weight |
2.00 lbs (0.91 kg) |
|
Product Family |
PanelView Plus Graphic Terminals |
|
Operator Input |
Touch |
|
Display Type |
Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) |
|
Display Size |
5.5 in. |
|
Display Area |
112 x 84 mm (4.4 x 3.3 in.) |
|
Resolution |
320 x 240 |
|
Touch interface |
Analog resistive |
|
Operating force |
10…110 g |
|
Actuating lifespan |
1 million presses |
|
Terminal Memory |
Series A: 5 MB Series B: 10 MB |
|
Communication ports |
RS-232, 2 USB host |
|
Power Supply Input Voltage range |
18-30VDC |
|
Power Consumption |
25 W max (1.0 A at 24V DC) |
|
Module Type |
Operator Interface Terminal |
|
Input Type |
Touchscreen |
|
Power Supply |
24 Volts DC |
|
Communication |
RS-232, USB ports |
|
Display |
5.7-inch Color |
|
Display Screen |
Color |
Advantages
|
Advantages |
Description |
|
User-Friendly Operation |
Combines a responsive analog resistive touchscreen with a keypad for easy machine control and navigation. |
|
Reliable Industrial Performance |
Designed for continuous operation in harsh industrial environments with stable 24V DC power input. |
|
Flexible Communication |
Supports RS-232 and USB connectivity for simplified integration with PLCs and external devices. |
|
Expandable Networking Capability |
Supports optional communication modules for Ethernet, DH+, DH-485, and ControlNet networks. |
|
High-Quality Display |
Features a 5.5-inch color TFT display with clear graphics for process visualization and monitoring. |
|
Durable Touchscreen Design |
The resistive touchscreen can be operated by finger or stylus, helping reduce screen wear and damage. |
|
Wide Operating Temperature Range |
Operates reliably between 0°C and 55°C, suitable for various industrial applications. |
|
Easy Data Transfer |
USB and SD card support allow convenient firmware updates, data logging, and file transfer. |
FQA
|
Question |
Answer |
|
What is the function of the 2711P-T6C5D? |
It is a PanelView Plus 600 HMI terminal used for machine monitoring, operator control, and industrial process visualization. |
|
What type of display does the terminal use? |
The unit features a 5.5-inch color TFT touchscreen display with keypad operation. |
|
What communication interfaces are available? |
The terminal supports RS-232 communication along with USB host and device ports. |
|
What is the operating voltage of the 2711P-T6C5D? |
The terminal operates with an 18–30V DC power supply, typically 24V DC nominal. |
|
Can the touchscreen be operated with gloves or a stylus? |
Yes. The analog resistive touchscreen supports operation by finger or stylus. |
