| S A F E T Y |

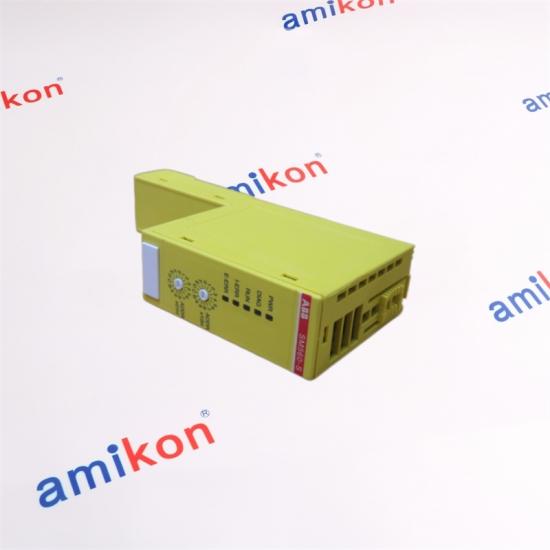

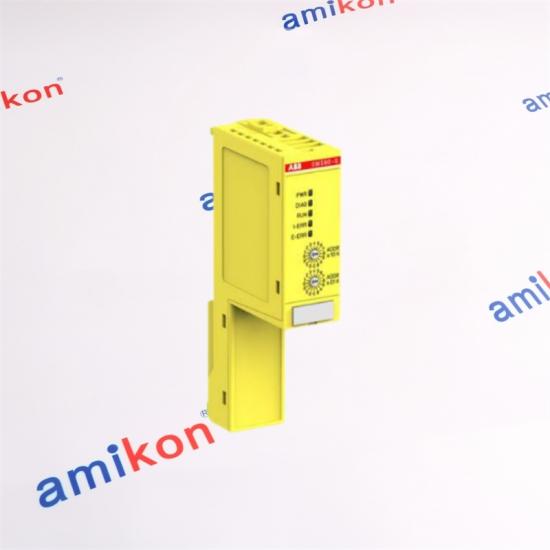

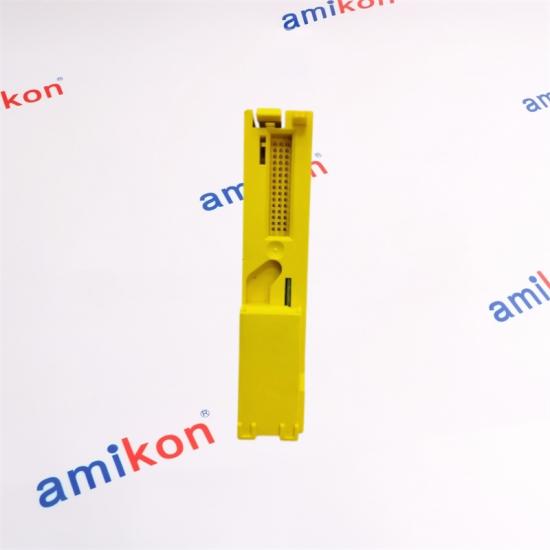

ABB AC500-S · SAFETY PROCESSOR
SM560-S-FD-1
Safety logic execution with PROFIsafe F-Device capability
|
◇
SAFE
CONTROL CORE |
|
01
|
PRODUCT OVERVIEW
A Dedicated Safety Processor Inside AC500-S
|
◆
|
| ABB SM560-S-FD-1 is an AC500-S safety CPU designed to execute safety-related control logic while operating alongside the standard AC500 controller. It provides dedicated safety program resources and supports protected data exchange as a PROFIsafe F-Device through a compatible communication architecture. Selection and replacement must preserve the validated hardware combination, addressing and safety application. |
SYSTEM IDENTITY
AC500-S Safety CPU
Dedicated execution
F-Device capability Validated safety architecture |
| ◇ PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES ↗ | WHATSAPP ↗ |
|
02
|
TECHNICAL SPECIFICATIONS
Ratings That Define the Installed Execution
|
◆
|
| PARAMETER | VALUE | PARAMETER | VALUE |
| Module type | AC500-S safety CPU | Supply | 24 V DC, -15% / +20% |
| Safety program memory | 1.3 MB | User data memory | 1 MB; 120 kB retained |
| Binary execution | 0.05 µs per instruction | Communication role | PROFIsafe F-Device capable |
|
03
|
SYSTEM ROLE AND FUNCTIONAL OVERVIEW
From Standard Control to Validated Safety Action
|
◆
|
|
01 / STANDARD CPU
Coordinates the conventional automation application.
|
→ |
02 / SM560-S-FD-1
Executes the safety application and evaluates protected safety data.
|
→ |
03 / SAFE I/O
Exchanges protected signals through the PROFIsafe architecture.
|
| ◇ PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES ↗ | WHATSAPP ↗ |
|
04
|
RELATED MODELS AND SELECTION GUIDE
Select by Function, Environment and Network Role
|
◆
|
| MODEL / ITEM | DISTINCTION | WHEN TO SELECT |
| SM560-S-FD-1 | F-Device execution; 1.3 MB safety program | CURRENT MODEL — exact installed identity |
| SM560-S-FD-4 | Alternative F-Device variant | Only for the supported field architecture |
| SM560-S | Safety CPU without the same F-Device execution | Do not treat as a direct substitute |
| SM560-S-FD-1-XC | Extended environmental execution | Choose only where XC conditions are required |
| CM589-PNIO | PROFINET communication module | Confirm support in the complete safe communication design |
|
05
|
INSTALLATION, MAINTENANCE AND REPLACEMENT
A Controlled Five-Step Safety Change
|
◆
|
| 01 | Complete the approved safety change process and isolate all relevant energy sources. | |
| 02 | Record the installed catalog identity, hardware markings, rotary address and communication arrangement. | |
| 03 | Restore the validated safety project, PROFIsafe addressing and supported AC500 hardware combination. | |
| 04 | Check mounting, internal bus engagement, supply polarity, grounding and communication status before start-up. | |
| 05 | Perform the required validation and machine safety tests; status LEDs alone do not confirm a valid safety function. |
|
06
|
AMIKON SUPPLY AND SERVICE
Industrial Automation Support Across the Supply Chain
|
◆
|
|
◆ RESPONSIVE TEAM SUPPORT
|
◇ PRODUCT CHECKING
|
◆ URGENT GLOBAL DISPATCH
|
| Over 20 years supporting new and discontinued industrial automation parts. | Responsive handling for urgent replacement and difficult catalog-number requirements. | International cooperation and shipment support for production continuity. |
| RETURN HANDLING |
Contact us within seven days if a concern is found after receipt. | Keep the item in its original condition and state the return reason. Resolution follows receipt and inspection. | Return-related transport costs are arranged by the buyer. |
|
07
|
FREQUENTLY ASKED QUESTIONS
Five Checks That Protect the Purchase
|
◆
|
| 01 |
SM560-S-FD-1 — Can SM560-S-FD-1 be replaced only by matching the front appearance?
No. Confirm the complete catalog identity, F-Device execution, hardware revision, supported AC500 CPU combination and validated safety configuration.
|
◇ |
| 02 |
SM560-S-FD-1 — What project data should be secured before replacing SM560-S-FD-1?
Secure the validated safety application, PROFIsafe addresses, configuration values, CRC-related project data and the approved restart and validation procedure.
|
◇ |
| 03 |
SM560-S-FD-1 — Does a normal status indication prove that SM560-S-FD-1 is ready for service?
No. Status indication is only one check. The required safety validation, communication checks and machine-specific functional tests must also pass.
|
◇ |
| 04 |
SM560-S-FD-1 — What should be confirmed when SM560-S-FD-1 uses PROFIsafe?
Confirm the supported PROFINET communication path, F-address allocation, device naming, controller relationship and all project settings used by the validated safety function.
|
◇ |
| 05 |
SM560-S-FD-1 — What purchasing details reduce risk for SM560-S-FD-1?
Provide the complete part number, installed AC500 components, required condition, quantity, visible revision markings and destination so compatibility can be reviewed before shipment.
|
◇ |
|
