POWER ENGINEERING
24
V DC OUTPUT
17 A
|
ABB BAILEY CONTROL POWER
PHARPS30000000
Regulated Power for Installed Control Hardware
|
◆ ◇ ◆ |
| 01 |
PRODUCT OVERVIEW

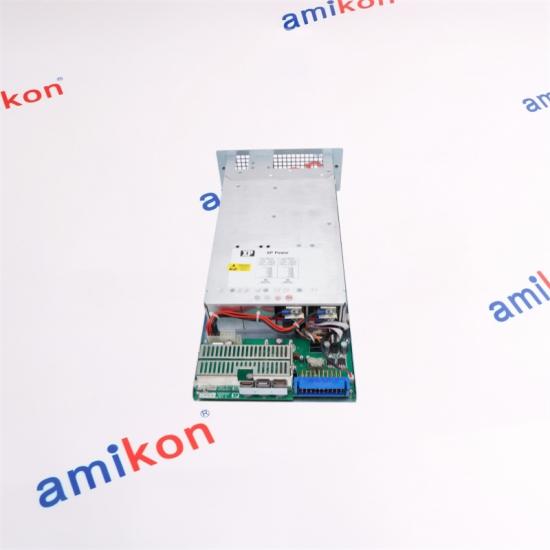

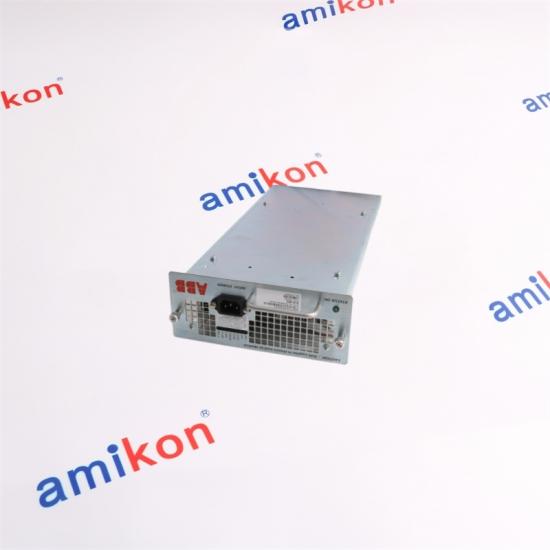

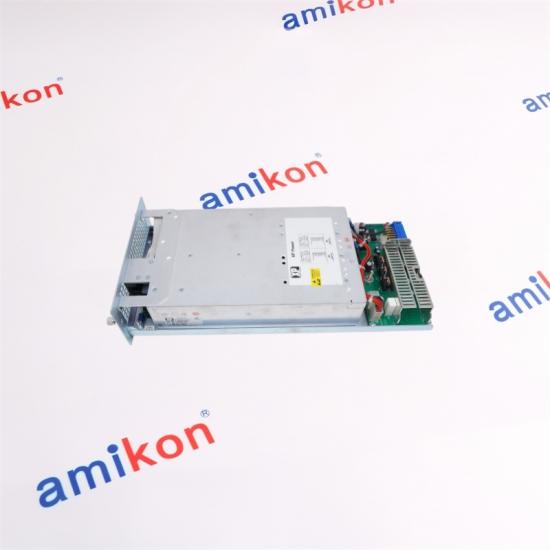

24 V DC Rack Power Supply
|
◇ |
| ABB PHARPS30000000 is a slide-in rack power supply used with installed ABB Bailey control-system hardware. It converts the cabinet input into regulated DC power for the associated chassis. Replacement work must retain the complete catalog identity, electrical rating, connector arrangement, mounting position and any paired-supply requirement. |
INSTALLED FAMILY
ABB Bailey Control-System Power Hardware
24 V DC / 17 A CLASS
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL ↗ | WHATSAPP ↗ |
| 02 |
TECHNICAL SPECIFICATIONS
Identity and Operating Characteristics
|
◇ |
| Product type | Rack power supply module |
| Nominal output | 24 V DC |
| Rated output class | 17 A |
| Platform role | ABB Bailey chassis power |
| Mechanical format | Slide-in chassis assembly |
| Replacement key | Complete catalog and label match |
| 03 |
SYSTEM ROLE AND FUNCTIONAL OVERVIEW
How the Component Fits the Installed System
|
◇ |
|
SYSTEM POSITION
24 V DC Rack Power Supply
|
The module forms the chassis power path between the incoming cabinet supply and the controller or I/O hardware. Stable output, secure rear engagement, cooling clearance and correct chassis pairing are essential to reliable operation. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL ↗ | WHATSAPP ↗ |
| 04 |
RELATED MODELS AND SELECTION GUIDE
Choose by Installed Role, Not Appearance
|
◇ |
| IDENTITY | RELATIONSHIP | SELECTION POINT |
| PHARPS30000000 | 24 V DC / 17 A class | Current requested unit |
| PHARPS03000000 | XP Power execution | Verify chassis and full label |
| PHARPS32200000 | Rack power execution | Different catalog identity |
| PHARPS62200000 | Rack power execution | Different catalog identity |
| Chassis partner supply | Redundant or paired position | Both installed units may need to be identical |
| 05 |
INSTALLATION, MAINTENANCE AND REPLACEMENT
Controlled Work Before Re-Energizing
|
◇ |
| 01 | Isolate the incoming supply and allow stored energy to discharge before withdrawal. |
| 02 | Record the complete label, input connections, DC connections and chassis position. |
| 03 | Support the assembly during removal and protect the rear connector from impact. |
| 04 | Restore protective bonding, cooling space and connector engagement exactly as installed. |
| 05 | Check status and output stability during a controlled start-up before loading the complete chassis. |
| 06 |
AMIKON SUPPLY AND SERVICE
20 Years of Industrial Automation Supply
|
◇ |
|
TEAM SUPPORT
|
PRODUCT CHECKING
|
URGENT DISPATCH
|
| RETURN HANDLING | Contact us within seven days if a concern appears after receipt. | Keep the item in original condition and state the reason. Resolution follows receipt and inspection. | Return transport costs are arranged by the buyer. |
| 07 |
FREQUENTLY ASKED QUESTIONS
Five Questions Before Purchase
|
◇ |
| 08 |
CONTACT FOR PRICE AND AVAILABILITY
Confirm Stock, Condition and Delivery
|
◇ |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL ↗ | WHATSAPP ↗ |
