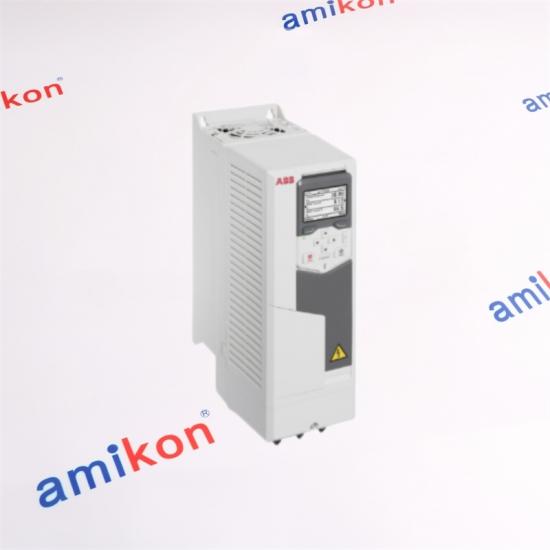

ABB ACS580-01-05A7-4 Variable Frequency Drive

ABB ACS580-01-05A7-4
ABB ACS580-01-05A7-4
ABB ACS580-01-05A7-4

ABB ACS580-01-05A7-4 Variable Frequency Drive

Calculate shipping
Quotation Request
ABB / DRIVE SYSTEMS
GENERAL PURPOSE DRIVE
ACS580-01-05A7-4

Wall-mounted low-voltage AC drive for general-purpose applications.
◇   ABB PRODUCT SERIES
01 / POWER
2.2
kW rated power
02 / CURRENT
5.6
A rated current
03 / VOLTAGE
400
V voltage class
✦ DELIVERY International Delivery on the Day
✦ SUPPORT Quick Response Support
✦ NETWORK Intercontinental Cooperation Network
Contact our team to check availability and confirm the exact drive model.
✉ EMAIL SALES ☏ PHONE / WHATSAPP
Sales manager: Miya zheng   |   sales@amikon.cn   |   86-18020776792


◇ DRIVE AXIS ◇

ACS580-01-05A7-4

Wall-mounted variable frequency drive for three-phase motors
PRODUCT POSITION

The ACS580-01-05A7-4 is a wall-mounted ABB general-purpose drive for controlling asynchronous and permanent-magnet motors in pumps, fans, conveyors, mixers and compressors. Its compact R1 frame combines motor control, an assistant control panel, built-in process functions and energy-efficiency features in one cabinet-ready unit.


EXACT-MATCH QUOTATION

Send the full part number, quantity, condition requirement and destination.

Email Miya ZhengWhatsApp +86 180 2077 6792
OPERATING PROFILE

Key Technical Characteristics

Supply class Three-phase 380–480 V AC
Rated output 5.7 A; 2.2 kW typical motor rating
Construction IP21 enclosure, frame R1
Control Scalar and vector motor control
Safety Integrated Safe Torque Off
Typical duty Variable-torque and constant-torque machinery
BEFORE ORDERING

Choose this exact code when the installation requires the 400 V class, 5.7 A rating, IP21 construction and R1 mechanical format. Confirm motor current, overload duty, EMC environment, braking needs, fieldbus options and enclosure requirements before replacement.

SERIES / SYSTEM RELATIONSHIP

Choose by Installed Role, Not Appearance

IDENTITY RELATIONSHIP SELECTION POINT
ACS580-01-04A1-4 1.5 kW / 4.1 A Lower-current R1 option
ACS580-01-05A7-4 2.2 kW / 5.7 A ◆ THIS MODEL
ACS580-01-07A3-4 3 kW / 7.3 A Next current step
ACS580-01 with +B056 Same electrical family IP55 enclosure variant
◆
Assistant panel and primary settings shorten commissioning.
◇
Built-in PID, energy optimizer and process functions reduce external components.
◈
Safe Torque Off supports safer machine servicing.
◉
Coated boards and integrated EMC features suit industrial installations.

20 Years of Industrial Automation Supply
GLOBAL RESPONSE
Fast coordination for planned maintenance and urgent recovery.
QUALITY CHECK
Part-number, condition and outward checks support reliable delivery.
STOCK & DELIVERY
Experienced sourcing for current and discontinued automation parts.
CONTACT

Keep Your Maintenance Window Moving

Sales manager: Miya Zheng · Email: sales@amikon.cn · Phone/WhatsApp: +86 180 2077 6792

Email Miya ZhengWhatsApp +86 180 2077 6792
Contact us within seven days if a concern appears after receipt. Keep returned items in original condition and state the reason for review. Return-related shipping costs are the buyer’s responsibility.
PURCHASING FAQ

Checks That Protect the Installation

ACS580-01-05A7-4: Can ACS580-01-05A7-4 replace another 2.2 kW drive directly?
Not by power alone. Match supply voltage, motor current, duty, enclosure, fieldbus, I/O assignments, braking arrangement and mechanical clearances.
ACS580-01-05A7-4: What should be checked before energizing ACS580-01-05A7-4?
Verify protective earth, input and motor wiring, motor nameplate data, cable shielding, cooling clearance and the selected control mode.
ACS580-01-05A7-4: Does ACS580-01-05A7-4 include Safe Torque Off?
Yes. The ACS580 platform incorporates Safe Torque Off; its circuit must be validated within the machine safety design.
ACS580-01-05A7-4: Is ACS580-01-05A7-4 suitable for pumps and fans?
Yes. Its process functions, PID control and energy optimization are well suited to pumps and fans when sizing matches the load.
ACS580-01-05A7-4: Which details matter when ordering ACS580-01-05A7-4?
Confirm the complete type code and options, especially enclosure, EMC class, control panel, fieldbus adapter and any braking accessories.
