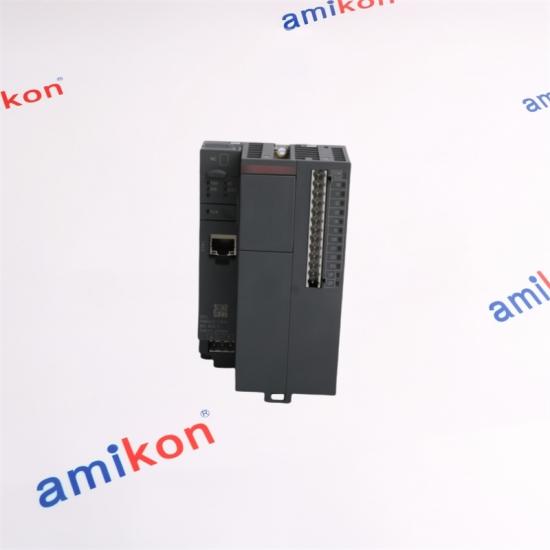

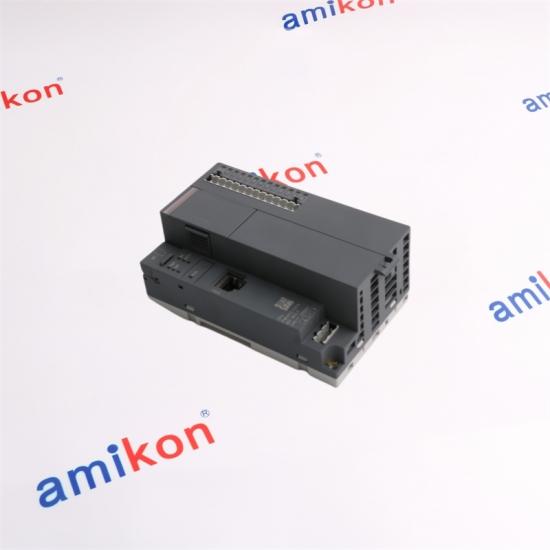

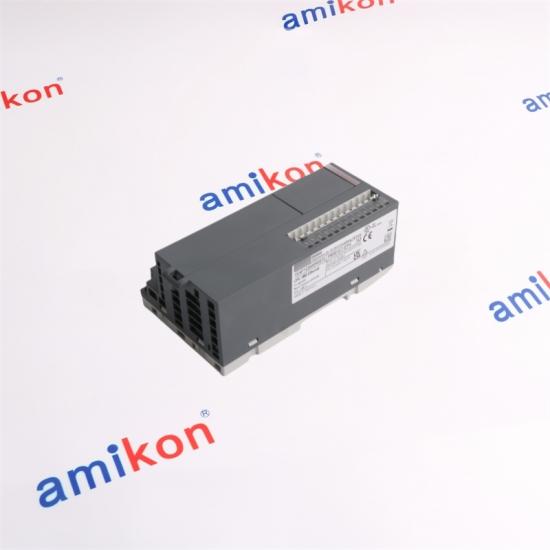

ABB AC500-eCo V3 CONTROL NODE
PM5012-R-ETH
Compact Control with Ethernet and Relay Outputs
|
||||
| 1 MB MEMORY | → | ETHERNET | → | 6 DI + 4 RELAY DO |
| 01 |
PRODUCT OVERVIEW
Ethernet CPU with Onboard I/O
|
◇ |
| ABB PM5012-R-ETH is an AC500-eCo V3 processor for compact machine and infrastructure control. It combines 1 MB program memory, six 24 V DC digital inputs, four relay outputs, Ethernet communication and one option slot in a single controller. |
INSTALLED FAMILY
ABB AC500-eCo V3
1 MB / 6 DI / 4 RELAY DO
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL ↗ | WHATSAPP ↗ |
| 02 |
TECHNICAL SPECIFICATIONS
Identity and Operating Characteristics
|
◇ |
| Product type | AC500-eCo V3 processor |
| Program memory | 1 MB |
| Digital inputs | 6 × 24 V DC |
| Digital outputs | 4 relay outputs |
| Network | Integrated Ethernet |
| Expansion | 1 option slot |
| 03 |
SYSTEM ROLE AND FUNCTIONAL OVERVIEW
How the Component Fits the Installed System
|
◇ |
|
SYSTEM POSITION
Ethernet CPU with Onboard I/O
|
The controller executes the application, exchanges data through Ethernet and handles local discrete signals without requiring separate I/O for the onboard channels. The option slot supports expansion appropriate to the installed design. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL ↗ | WHATSAPP ↗ |
| 04 |
RELATED MODELS AND SELECTION GUIDE
Choose by Installed Role, Not Appearance
|
◇ |
| IDENTITY | RELATIONSHIP | SELECTION POINT |
| PM5012-R-ETH | 6 DI / 4 relay DO | Current requested controller |
| PM5032-T-ETH | Transistor-output relative | Select for solid-state output needs |
| PM5052-2ETH | Two-Ethernet relative | Select when the network design needs dual Ethernet |
| PM5072-2ETH | Higher controller execution | Confirm memory and interface needs |
| S500-eCo I/O | Expansion family | Add only where extra channels are required |
| 05 |
INSTALLATION, MAINTENANCE AND REPLACEMENT
Controlled Work Before Re-Energizing
|
◇ |
| 01 | Match the complete processor catalog number and onboard output type before replacement. |
| 02 | Record Ethernet settings, application project, retained values and option hardware. |
| 03 | Use the specified 24 V DC supply and restore grounding and terminal assignments. |
| 04 | Confirm relay-load voltage, current and suppression before reconnecting outputs. |
| 05 | After download, verify network communication, local I/O and the complete machine sequence. |
| 06 |
AMIKON SUPPLY AND SERVICE
20 Years of Industrial Automation Supply
|
◇ |
|
TEAM SUPPORT
|
PRODUCT CHECKING
|
URGENT DISPATCH
|
| RETURN HANDLING | Contact us within seven days if a concern appears after receipt. | Keep the item in original condition and state the reason. Resolution follows receipt and inspection. | Return transport costs are arranged by the buyer. |
| 07 |
FREQUENTLY ASKED QUESTIONS
Five Questions Before Purchase
|
◇ |
| 08 |
CONTACT FOR PRICE AND AVAILABILITY
Confirm Stock, Condition and Delivery
|
◇ |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL ↗ | WHATSAPP ↗ |
