DRIVE COOLING / RADIAL FAN

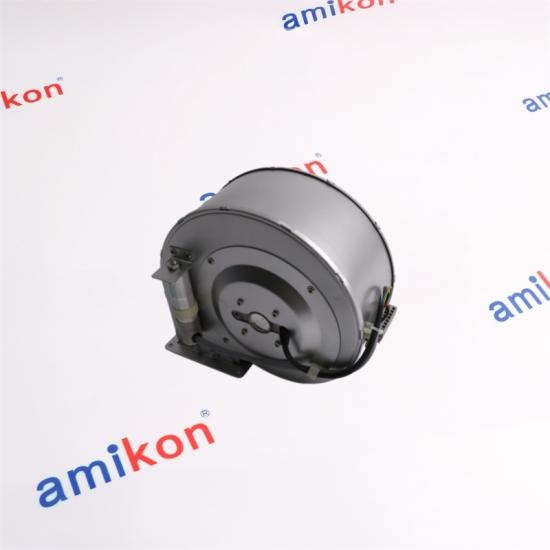

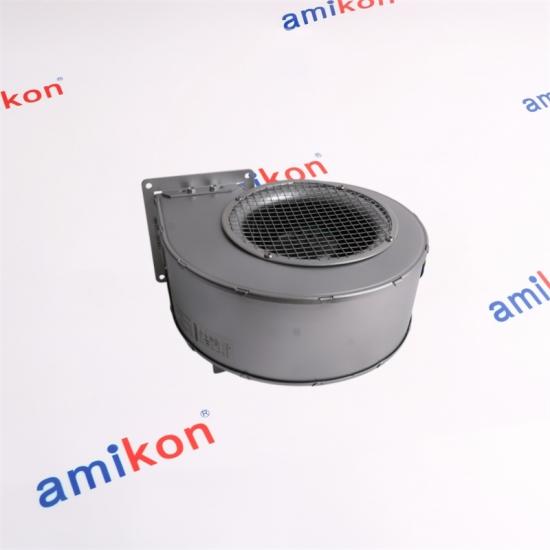

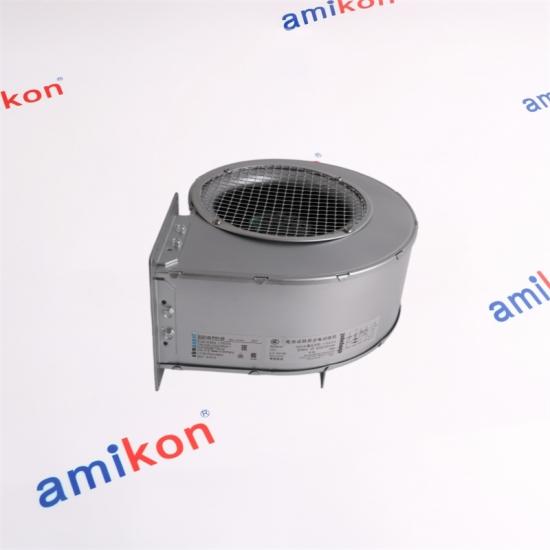

ABB G2E140-PI51-09A centrifugal cooling fan used in ABB drive and brake-chopper assemblies where directed airflow removes heat from power electronics. The complete fan designation is G2E140-PI51-09; retaining the full marking is important when matching a replacement. |
AMIKON SUPPLY
Fast support for critical automation parts.
Responsive quotation | global coordination | careful part matching
|
| Complete designation | G2E140-PI51-09 |
| Component class | Centrifugal cooling fan |
| Supply | 230 V AC, 50/60 Hz |
| ABB fan kit | 64114158 |
| Typical assembly | NBRA brake-chopper installation |
| Approx. assembly size | 218 x 130 x 258 mm |
|
[SYSTEM]
SYSTEM ROLE
|
The fan draws air through the brake-chopper cooling path and maintains airflow across heat-generating components. It is a service component rather than a control module: correct voltage, airflow direction, mounting points and plug arrangement are all essential. |
| Rated voltage | 230 V AC |
| Frequency | 50 / 60 Hz |
| Rated current | 0.78 / 0.97 A |
| Input power | 180 / 225 W |
| Speed | 2200 / 2160 r/min |
| Run capacitor | 4 uF / 450 V |
| Cooling form | Forward-curved centrifugal blower |
| Installation form | Chopper fan assembly |
|
Air path
Fan -> brake-chopper heat path -> cabinet exhaust
|
Electrical role
Auxiliary cooling load; no control logic
|
Service relationship
Installed in supported NBRA brake-chopper configurations
|
Protection focus
Airflow clearance, protective earth and guarded moving parts
|
| G2E140-PI51-09 | This page: 230 V cooling fan |
| ABB 64114158 | Fan kit ordering identity |
| NBRA-658 | Related brake-chopper module; verify drive arrangement |
| NBRA-659 / NBRA-669 | Related modules; selection depends on drive voltage and braking duty |
