ACS800 / MAIN CIRCUIT INTERFACE

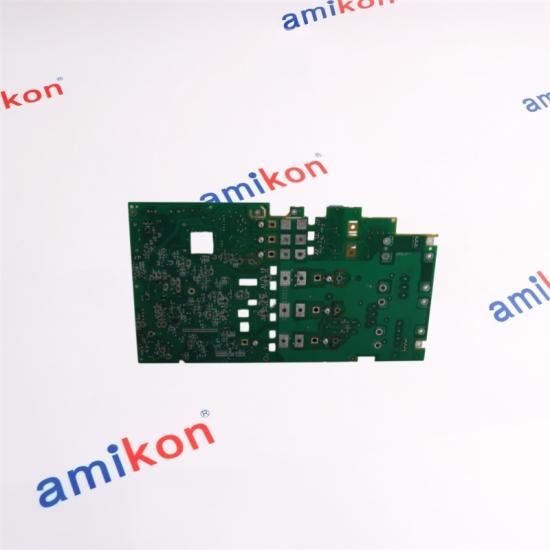

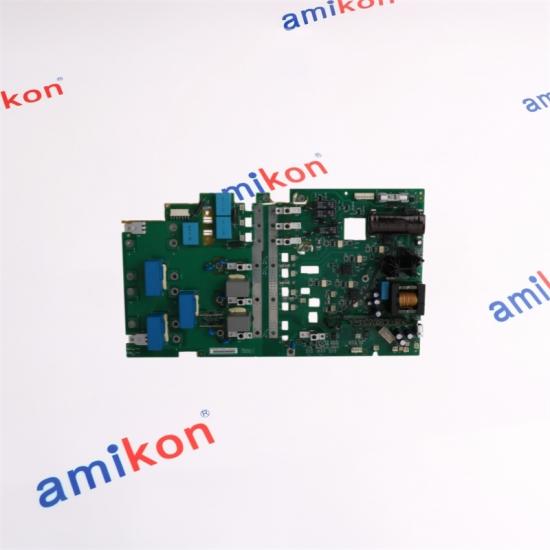

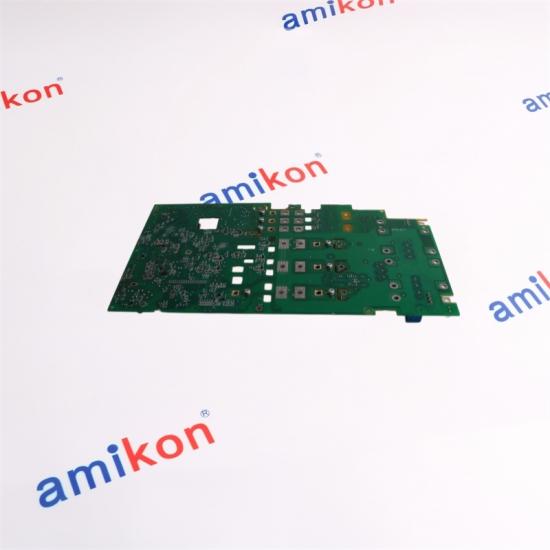

ABB RINT-6512CThe ABB RINT-6512C is the 690 V main-circuit interface board used in an ACS800-104 R5i inverter module. It forms the hardware link between the power stage and the drive control electronics and must be matched by exact board identity and revision. |
AMIKON SUPPLY
Fast support for critical automation parts.
Responsive quotation | global coordination | careful part matching
|
| Product identity | RINT-6512C |
| Component class | Main-circuit interface board |
| Drive platform | ABB ACS800 |
| Inverter module | ACS800-104, frame R5i |
| Voltage variant | 690 V class |
| Replacement basis | Exact code, revision and connector match |
|
[SYSTEM]
SYSTEM ROLE
|
RINT-6512C carries the main-circuit interface functions inside the inverter module, coordinating the power-stage connections with the motor-control and I/O electronics. It is not a general-purpose I/O board and cannot be selected by board size alone. |
| Board role | Main-circuit interface |
| Platform | ACS800 multidrive |
| Module frame | R5i |
| Voltage class | 690 V variant |
| Lower-voltage relative | RINT-6512 for 230-500 V variants |
| Mounting | Internal drive-module assembly |
| Replacement scope | Like-for-like service board |
| Critical check | Board revision and harness placement |
|
Power stage
DC link / inverter power components
|
Interface layer
RINT-6512C
|
Control layer
Motor-control and I/O electronics
|
System result
Coordinated gate, sensing and protective interface functions
|
| RINT-6512C | This page: 690 V R5i interface board |
| RINT-6512 | 230-500 V relative; not a voltage-class substitute |
| ACS800-104 R5i | Host inverter module |
| RINT-6421C | Different board identity; verify system position before selection |
