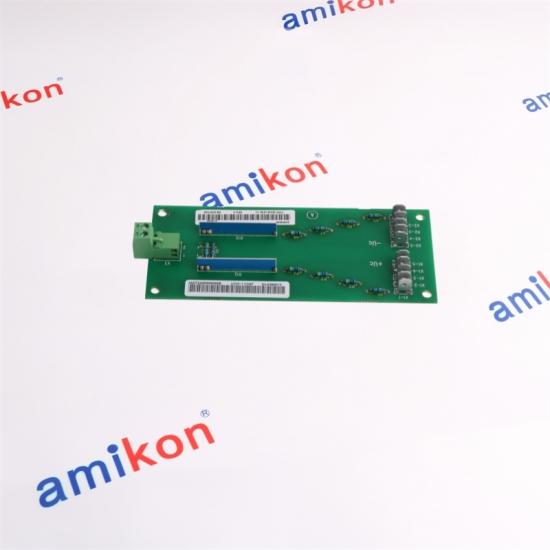

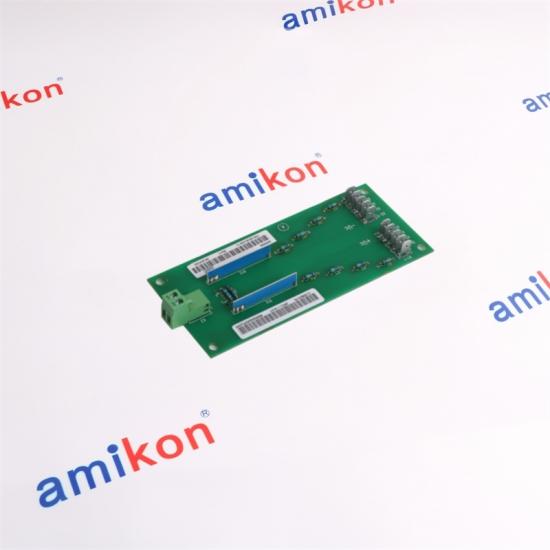

ABB SDCS-UCM-1-COAT 3ADT220090R0008 Extension Board

ABB SDCS-UCM-1-COAT 3ADT220090R0008
ABB SDCS-UCM-1-COAT 3ADT220090R0008
ABB SDCS-UCM-1-COAT 3ADT220090R0008

ABB SDCS-UCM-1-COAT 3ADT220090R0008 Extension Board

Calculate shipping
Quotation Request

EXTERNAL DC VOLTAGE MEASUREMENT
SDCS-UCM-1-COAT
3ADT220090R0008
DCS880 H1–H5 Drive Interface
The resistor board provides external motor-side DC voltage measurement for the DCS880.
X1
X2
+U
-U

X3
RESISTOR CHAINS
160 × 60 mm
board outline
H1–H5
DCS880 frames
X1 / X2 / X3
connection groups
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
Sales manager: Miya Zheng
EMAIL   sales@amikon.cnPHONE  +86 18020776792

UCM
EXTERNAL DC
VOLTAGE MEASUREMENT
ABB DRIVE MEASUREMENT ACCESSORY
SDCS-UCM-1-COAT
3ADT220090R0008

This coated resistor board provides external measurement of a DC motor's armature voltage. Two resistor chains accept the motor-side DC potential through X1 and X2, reduce it to a measurement level, and deliver the resulting signal from X3 to the drive control input AI3.
Signal Path & Hardware Detail
+C1
Positive armature voltage		 →
X1 / X2: motor-side DC connections
Two resistor chains: voltage reduction
Board outline: approximately 16.0 × 6.0 cm
→
X3
Reduced signal to XAI:AI3
Safety-critical connection: X1 and X2 remain at the connected motor's DC potential. Installation, isolation and conductor selection must follow the drive cabinet design and qualified electrical practices.
Nominal Motor Voltage X1 Position X2 Position Measurement Route
≤ 400 V DC 4 4 X3:1 / X3:2 connect the reduced signal to the drive's XAI:AI3 channel.
≤ 500 V DC 4 4
≤ 600 V DC 3 3
Q
Request a Quote for SDCS-UCM-1-COAT
Send the full code 3ADT220090R0008, drive type, nominal motor voltage, quantity and destination.
 Miya Zheng
Sales Manager		 EMAIL QUOTE WHATSAPP
SYSTEM RELATIONSHIP
External Measurement Versus Internal Measurement
Motor Side C1 positive voltage enters X1; D1 negative voltage enters X2. Position selection follows nominal motor voltage. Advantage: measures the voltage at the motor side of a DC breaker or contactor, preserving feedback when the converter-side value does not represent the motor terminals.
UCM Board The paired resistor chains scale the armature voltage. The coated construction adds surface protection for the assembly. Advantage: a dedicated external measurement path with clear connector separation between high-potential input and reduced output.
Drive Side X3 feeds AI3 on the drive control interface. The board is mounted outside the drive module. Advantage: the drive can use the external motor-voltage feedback while the internal voltage measurement remains connected and available in the control program.
Application Context SDCS-UCM-1 Role Selection Check
DCS880 H1–H5 external motor-voltage measurement External resistor board between motor armature and AI3 Confirm nominal DC voltage, connector position, cabinet mounting and wiring route
Earlier DCS800 drive sizes D1–D4 Used when external DC voltage measurement at the motor is required Do not select solely by board appearance; verify the complete drive configuration

Amikon's Large Stock Is the Core of Our Supply
Global Service
Multilingual support and structured order tracking.
Industrial Coverage
More than 400,000 products across PLC, HMI, drives, servo, CNC, IPC and PG.
Availability Network
Stock-backed response plus preferred-supplier search when required.
We serve customers across many industries worldwide. Strategic purchasing supports both current and mature equipment, helping production resume quickly while avoiding extra handling or hidden charges.
Check Availability With Miya Zheng
Send the complete part code, drive type, nominal motor voltage and required quantity.
Sales Manager
Miya Zheng		 EMAIL
sales@amikon.cn		 WHATSAPP
+86 18020776792
Return & replacement: Notify us within seven days after receipt if a problem is found. The item must remain in its original condition and the return reason must be provided. A return or replacement is arranged after the item is received and checked; the buyer covers return freight.
SDCS-UCM-1-COAT 3ADT220090R0008 — Buyer FAQ
1. What must be confirmed before ordering SDCS-UCM-1-COAT 3ADT220090R0008?
Confirm the complete part code, drive family and frame, nominal motor DC voltage, external-measurement requirement and cabinet mounting space.		 2. Why is SDCS-UCM-1-COAT 3ADT220090R0008 mounted outside the drive module?
The board interfaces directly with motor armature potential at X1 and X2, so its mounting and segregation are designed as an external assembly.
3. How are voltage positions selected on SDCS-UCM-1-COAT 3ADT220090R0008?
For nominal motor voltage up to 400 or 500 V DC, use position 4 on X1 and X2; up to 600 V DC, use position 3 on both.		 4. Does SDCS-UCM-1-COAT 3ADT220090R0008 replace the drive's internal measurement?
No. The reduced external signal is routed to XAI:AI3, while the internal voltage measurement remains connected and can still be used by the control program.
5. What installation risk deserves the most attention with SDCS-UCM-1-COAT 3ADT220090R0008?
X1 and X2 are at motor DC potential. Isolation, conductor routing, creepage, enclosure protection and work by qualified personnel are essential; connector positions must match nominal motor voltage before energization.
