| ABB DRIVE COMPONENT |
|

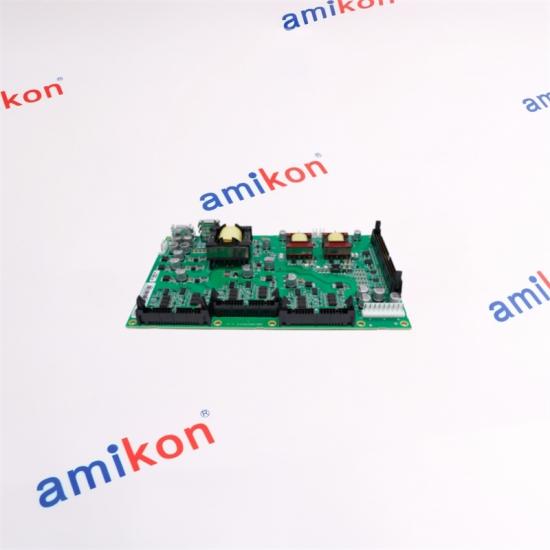

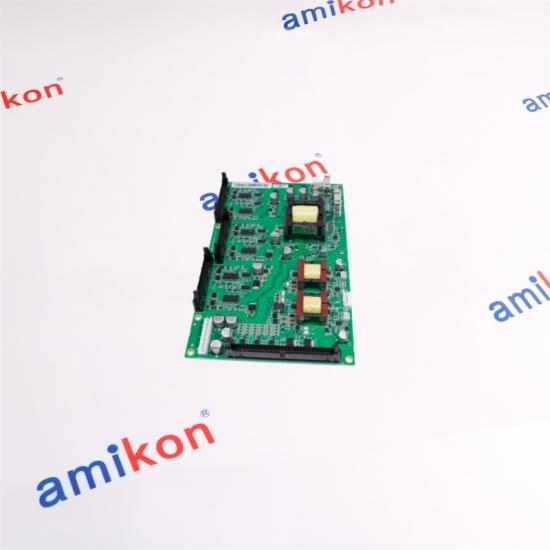

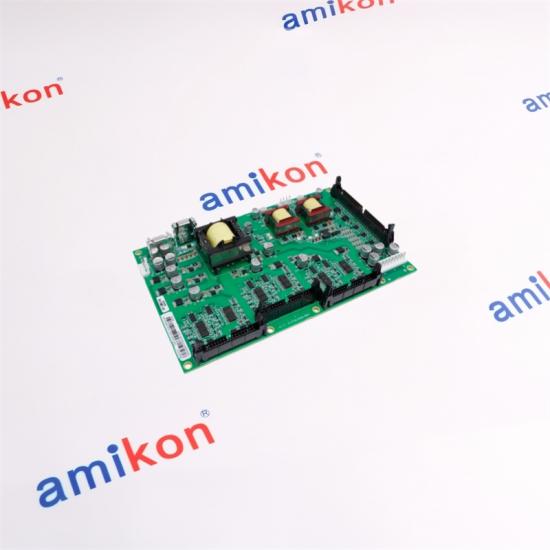

Gate Driver Board
ABB BGDR-01C, product ID 3AUA0000074145, is a gate driver board used in compatible ABB drive power-module assemblies. It transfers controlled firing commands to the power-semiconductor stage and belongs to a matched inverter hardware structure rather than a general-purpose I/O system.
|
CODE ✓
REQUEST A QUOTEREVISION ✓ APPLICATION ✓ |
| IDENTIFY | → | ISOLATE | → | INSTALL | → | VALIDATE |
|
Responsive global coordination.
|
Careful inspection and exact-code confirmation before dispatch.
|
Urgent dispatch support.
|
|
1
|
What is the primary role of BGDR-01C?
It delivers controlled gate-drive signals to the compatible power-semiconductor stage.
|
|
2
|
Is it a complete drive controller?
No. It is one internal board within a matched ABB drive power-module assembly.
|
|
3
|
Can a visually similar gate board replace it?
No. Confirm product ID, frame, hardware revision, cable set and companion boards.
|
|
4
|
What must be done before removal?
Disconnect all power, discharge the DC link, verify zero voltage and observe ESD precautions.
|
|
5
|
What should be checked after installation?
Inspect cable seating, insulation clearances, mounting hardware and the controlled commissioning sequence.
|
|
Need price, lead time or revision confirmation?
Send the complete catalog code, quantity and destination for a focused response.
|
