ABB ROBOTICS / SERIAL MEASUREMENT
3HAC046277-001

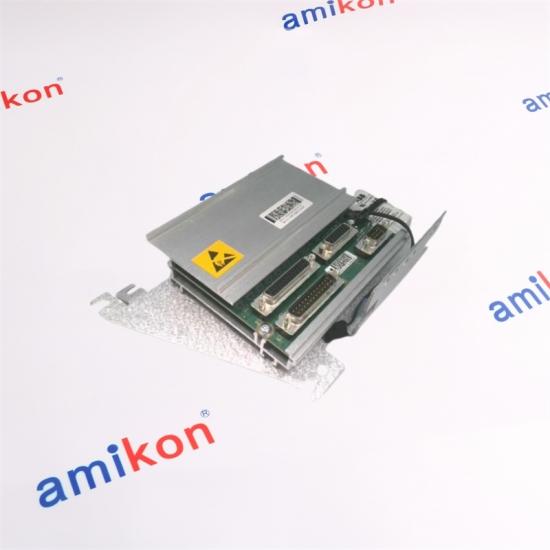

Serial Measurement Unit
ABB robot SMB assembly designed around the RMU 101 serial measurement board and its matching battery configuration for supported robot applications.
|
|
|
|
|
|
PRODUCT TYPE
Serial Measurement Unit
|
MEASUREMENT BOARD
3HAC044168-001
|
BATTERY PACK
3HAC044075-001
|
CONTACT CONFIGURATION
3-pole
|
|
TECHNICAL PROFILE
3HAC046277-001 Engineering Configuration
|
|
|
|
PURCHASING CONTACT
Need 3HAC046277-001 for an ABB robot?
Please provide the exact part number, quantity, destination, required date and machine/system when requesting a quotation.
|
|
GLOBAL AUTOMATION SUPPORT
Hard-to-Find Parts. Worldwide Reach.
|
|
DELIVERY
3–5 Days
|
WARRANTY
12 Months
|
PACKAGING
Brand New
|
PAYMENT
T/T
|
|
PURCHASING TERMS
|
|
BUYER FAQ
3HAC046277-001 Replacement Questions
|
|
01 · Why should 3HAC046277-001 be checked against the installed SMB configuration before ordering?
Because ABB uses different SMB assemblies and battery arrangements. The 3HAC046277-001 configuration combines board 3HAC044168-001 with battery pack 3HAC044075-001, so the installed configuration should be matched before replacement.
|
02 · What battery configuration belongs with 3HAC046277-001?
The documented configuration uses battery pack 3HAC044075-001 with a three-pole battery contact. The battery arrangement should not be substituted solely by appearance.
|
|
03 · How is 3HAC046277-001 different from 3HAC17396-1?
3HAC046277-001 contains serial measurement board 3HAC044168-001 and battery pack 3HAC044075-001, while 3HAC17396-1 uses 3HAC031851-001 with 3HAC16831-1. They should therefore be treated as different SMB configurations.
|
04 · When does 3HAC046277-001 become a critical replacement item?
It becomes particularly relevant when the installed serial measurement assembly cannot maintain the expected robot measurement function and the maintenance team needs to restore the correct SMB hardware without changing to an incompatible configuration.
|
|
05 · What should a buyer provide when requesting 3HAC046277-001?
For a faster quotation, provide the part number, quantity, destination, required date and machine/system. For this SMB unit, the installed robot configuration and battery-contact arrangement are also useful for replacement verification.
|
REPLACEMENT CHECK
3HAC046277-001
Board: 3HAC044168-001
Battery: 3HAC044075-001 Contact: 3-pole Application: ABB robot SMB configuration |
|
