ABB ROBOTICS / MANIPULATOR HARNESS

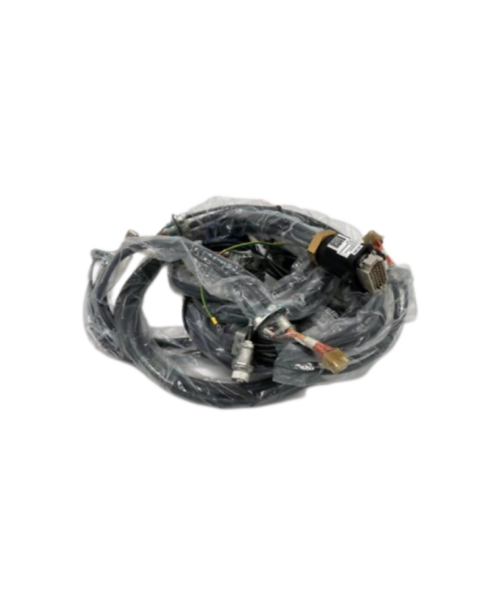

3HAC042840-001
Manipulator Harness

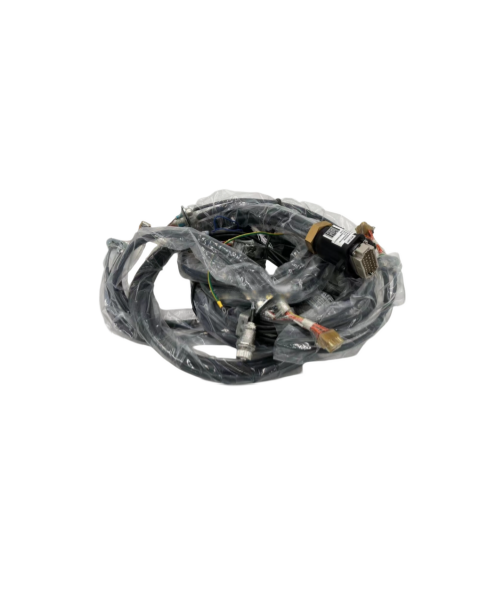

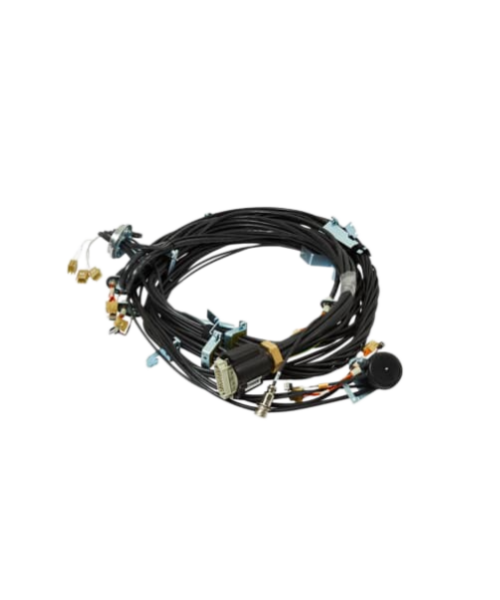

Axis 1–6 ABB 3HAC042840-001 is the manipulator harness assigned to the axis 1–6 electrical assembly of the IRB 6700 robot family. It is part of the robot's electrical spare-part architecture and provides the harness connection between the manipulator-side electrical system and the robot's axis-related assemblies. The part is particularly relevant when an existing harness has suffered wear, electrical damage, connector problems or repeated motion-related deterioration and the maintenance team needs to restore the original robot wiring arrangement without changing the complete manipulator.
|
SERIES CONTEXT
The 3HAC042840-001 harness belongs to the IRB 6700 manipulator electrical spare-part group. The IRB 6700 family includes multiple reach and payload variants, while the harness designation was later unified across variants in the product spare-parts structure.
|
|
PRODUCT CHARACTER
Built for the manipulator side
3HAC042840-001 is designated as the manipulator harness for axes 1 through 6 on the IRB 6700 platform. Its role is not a standalone controller function; it is an integrated robot wiring assembly intended to remain part of the manipulator electrical architecture. This makes correct part-number matching particularly important when replacing a harness on an operating robot, especially where several IRB 6700 variants or different harness generations are present in the same maintenance environment. |
CORE SPECIFICATION
|
|
SERIES POSITION
IRB 6700
electrical architecture The harness is one element within the wider IRB 6700 electrical spare-part structure, alongside items such as the SMB unit and brake release assembly. |
|
|
FIELD APPLICATION
When the harness becomes the maintenance priority
On an IRB 6700, the manipulator harness is exposed to the repeated movement and routing conditions inherent to robot operation. In a maintenance environment, replacement becomes relevant when electrical continuity, connector integrity or physical cable condition can no longer be relied upon. A correctly matched replacement helps the maintenance team restore the robot's intended electrical interconnection without unnecessarily replacing unrelated mechanical or electronic assemblies. |
|
|
REQUEST A QUOTATION
Send the exact robot part details
For a faster quotation, please provide the following five items:
|
AMIKON CONTACT
SALES MANAGER
Miya zheng
Delivery: 3–5 days | Warranty: 12 months | Packaging: Brand New
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment term: T/T
|
|
PURCHASE QUESTIONS
Before you replace
the harness These questions focus on the practical decisions involved in sourcing and replacing 3HAC042840-001 rather than basic nameplate-level details.
|
|
|
NEED A FAST MATCH?
Send the part number and robot configuration.
For quotation handling, please include Part Number, Quantity, Destination, Required Date and Machine/System. This allows the purchasing request to be checked against the intended robot application.
|
EMAIL sales@amikon.cn WHATSAPP 86-18020776792
Sales manager: Miya zheng
|
